14" Heavy Duty ID Mounted Cold Cutting Pipe Beveler for Precision Weld Preparation
| MOQ: | 1 |
| Price: | 440USD-1320USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
ID352
Cutting Range:
Φ145–356 Mm (5.71"–14.02")
ID Mounting Range:
Φ145–345 Mm (5.71"–13.58")
Wall Thickness:
≤20 Mm (0.79")
Feed Stroke:
35 Mm (1.38")
Highlight:
14 inch heavy duty pipe beveler
,ID mounted cold cutting tool
,weld preparation pipe beveler
Product Description
14" Heavy Duty ID Mounted Cold Cutting Weld Preparation Tool
Product Overview

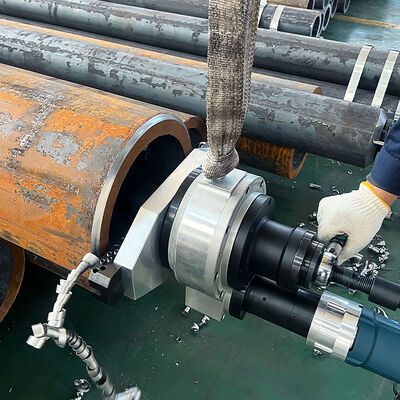

The ID352 Pipe Beveler is a heavy-duty, internally mounted pipe beveling machine developed for high-precision weld end preparation on pipes and tubes with diameters from 5.71" to 14.02" (Ø145-356 mm). Engineered for demanding industrial environments, it is commonly applied in power plants, petrochemical facilities, refinery maintenance, and pipeline construction projects.
Featuring a true cold cutting machining process, the ID352 ensures clean, accurate bevels without generating heat, effectively preventing heat-affected zones and material distortion. The machine is capable of machining carbon steel, stainless steel, and a wide range of alloy steels, delivering consistent performance even on thick-wall pipes.
Equipped with a variety of interchangeable cutting tools, the ID352 supports V-bevels, U-bevels, facing, counterboring, and chamfering operations. Available with electric or pneumatic drive systems, it provides excellent adaptability for both workshop-based fabrication and on-site field applications.
Key Features
- True Cold Cutting Technology: The ID352 employs a fully mechanical cold cutting process, eliminating thermal impact on the workpiece and ensuring optimal weld preparation quality.
- Broad Material Application: Designed to efficiently machine carbon steel, stainless steel, and high-strength alloy steels used in industrial piping systems.
- Multi-Function Machining Capability: With quick-change tooling, the machine can perform beveling, end facing, counterboring, and chamfering in a single setup, improving productivity and accuracy.
- Fast and Secure Internal Mounting: A three-jaw self-centering expanding mandrel provides quick installation, strong internal clamping force, and excellent concentric alignment during operation.
- Flexible Bevel Angle Adjustment: Supports bevel angles from 0° to 45°, with optional customized tool inserts available to meet specific welding codes and project requirements.
Specifications
| Item | IDE-352 | IDP-352 |
|---|---|---|
| Drive Type | MT electric motor | Pneumatic motor |
| Motor Power | 220-240 V, 50/60 Hz | 2.8 m³/min @ 0.6 Mpa |
| Motor Power | 1.6 Kw (2.15 Hp) / 6 A | 2.76 Kw (3.75 Hp) |
| Cutting Range (ID-OD) | Φ145-356 mm (5.71"-14.02") | Φ145-356 mm (5.71"-14.02") |
| ID Mounting Range | Φ145-345 mm (5.71"-13.58") | Φ145-345 mm (5.71"-13.58") |
| Wall Thickness | ≤20 mm (0.79") | ≤20 mm (0.79") |
| Feed Stroke | 35 mm (1.38") | 35 mm (1.38") |
| Rotation Speed | 11 rpm | 18 rpm |
| Working Weight | 52 Kg | 51 Kg |
| Shipping Weight | 75.5 Kg | 73.5 Kg |
| Crate Dimensions | 960×420×410 mm | 860×420×410 mm |
Drive Options
The ID352 Pipe Beveler is offered with two distinct drive systems, allowing users to select the most suitable configuration based on working conditions, safety requirements, and power availability.
IDE352 - MT Electric Motor Drive: The IDE352 is driven by a reliable 1.6 kW (2.15 Hp) MT electric motor, operating on 220-240 V, 50/60 Hz. This electric version provides smooth and stable torque output, ensuring precise control during pipe beveling and weld end preparation.
It is especially well-suited for fabrication workshops, industrial production lines, and plant maintenance environments where a consistent power supply is available. The electric drive supports continuous operation with high accuracy, helping reduce operator fatigue and improve overall machining efficiency.
IDP352 - Pneumatic Motor Drive: The IDP352 is equipped with a high-performance 2.76 kW (3.75 Hp) pneumatic motor, requiring 2.8 m³/min of compressed air at 0.6 MPa. Designed with an inherently explosion-proof air drive system, it delivers safe and dependable operation in hazardous or flammable work areas.
Thanks to its compact structure and low maintenance requirements, the pneumatic version is ideal for on-site pipe beveling tasks in industries such as oil and gas, petrochemical processing, and offshore construction, where the use of electric power may be restricted or prohibited.
Standard Accessories
| No. | Description | Qt |
|---|---|---|
| 1 | Model ID352 assembly with motor | 1 |
| 2 | Jaw block No.1 (Φ185-225 mm,L=20 mm) | 6 |
| 3 | Jaw block No.2 (Φ225-265 mm,L=40 mm) | 6 |
| 4 | Jaw block No.3 (Φ265-305 mm,L=60 mm) | 6 |
| 5 | Jaw block No.4 (Φ305-345 mm,L=80 mm) | 6 |
| 6 | 42F-1025-0°,M42 Facing tool, 10×25 mm, 0° | 1 |
| 7 | 42B-1025-30°,M42 Beveling tool, 10×25 mm, 30° | 1 |
| 8 | 42B-1025-37.5°,M42 Beveling tool, 10×25 mm, 37.5° | 1 |
| 9 | Hex L-key 4 mm | 1 |
| 10 | Hex L-key 8 mm | 1 |
| 11 | Combination open end wrench, 22-24 mm | 1 |
| 12 | Manual and certificates | 1 |
Mounting Range
| Jaw Blocks and Ramp Sets | |
|---|---|
| Jaw block No. | ID Mounting Range |
| None | Φ145-185 mm (5.709"-7.283") |
| NO.01 | Φ185-225 mm (7.283"-8.858") |
| NO.02 | Φ225-265 mm (8.858"-10.433") |
| NO.03 | Φ265-305 mm (10.433"-12.008") |
| NO.04 | Φ305-345 mm (12.008"-13.583") |
Toolbit Options
Pipe Beveler Selection Table
| Model | ID Mounting Range | Cutting Range (ID-OD) |
|---|---|---|
| ID30 | Φ15-28 mm (0.59"-1.10") | Φ15-36 mm (0.59"-1.42") |
| ID90 | Φ25-79 mm (0.98"-3.11") | Φ25-89 mm (0.98"-3.50") |
| ID120 | Φ40-112 mm (1.57"-4.41") | Φ40-120 mm (1.57"-4.72") |
| ID159 | Φ60-160 mm (2.36"-6.30") | Φ60-159 mm (2.36"-6.26") |
| ID219 | Φ65-215 mm (2.56"-8.46") | Φ65-219 mm (2.56"-8.62") |
| ID252 | Φ80-260 mm (3.15"-10.24") | Φ80-273 mm (3.15"-10.75") |
| ID352 | Φ145-345 mm (5.71"-13.58") | Φ145-356 mm (5.71"-14.02") |
| ID426 | Φ250-426 mm (9.84"-16.77") | Φ250-426 mm (9.84"-16.77") |
| ID630 | Φ300-630 mm (11.81"-24.80") | Φ300-630 mm (11.81"-24.80") |
