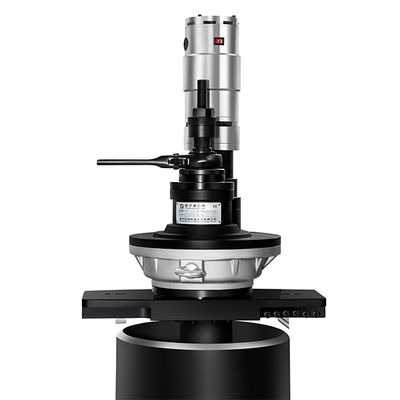

ID426 Pipe Beveler Heavy Duty Internal Mounted Cold Cutting Tool for Weld Preparation
PRODUCT DESCRIPTION
The ID426 Pipe Beveler is a heavy-duty, internally mounted beveling machine designed for precision weld end preparation on large-diameter pipes. With a machining range of 9.84" to 16.77" (Φ250 mm–426 mm), it is ideal for applications in power plants, petrochemical facilities, and heavy industrial maintenance. Utilizing a cold cutting process, the ID426 avoids heat-affected zones, ensuring high-quality weld joints. It handles various machining tasks including V and U groove beveling, counterboring, facing, and chamfering.
The unit is compatible with carbon steel, stainless steel, and alloy materials. Quick internal mounting is achieved through a self-centering three-jaw expanding mandrel. Offered with both electric and pneumatic drive options, the ID426 delivers versatility, safety, and performance in demanding on-site or workshop environments.
KEY FEATURES
Cold Cutting Technology
Employs a 100% cold cutting process, eliminating thermal distortion and ensuring clean, high-integrity weld joints.
Material Flexibility
Capable of machining carbon steel, stainless steel, and various alloy steels for diverse industrial applications.
High-Performance Machining
Supports multiple operations such as V and U beveling, counterboring, end facing, and chamfering with quick-change tool bits.
Quick and Precise Mounting
Three-jaw self-centering expanding mandrel ensures fast, stable, and accurate internal clamping during setup.
Dual Drive Options
Available in electric or pneumatic motor configurations, offering flexibility for both indoor facilities and hazardous on-site environments.
SPECIFICATIONS
| Item | IDE-426 | IDP-426 |
| Drive Type | MT electric motor | Pneumatic motor |
| Motor Power | 220-240 V, 50/60 Hz | 2.8 m³/min @ 0.6 Mpa |
| Motor Power | 2.2 Kw (2.95 Hp) /10 A | 2.76 Kw (3.75 Hp) |
| Cutting Range (ID-OD) | Φ250-426 mm (9.84"-16.77") | Φ250-426 mm (9.84"-16.77") |
| ID Mounting Range | Φ250-426 mm (9.84"-16.77") | Φ250-426 mm (9.84"-16.77") |
| Wall Thickness | ≤20 mm (0.79") | ≤20 mm (0.79") |
| Feed Stroke | 40 mm (1.57") | 40 mm (1.57") |
| Rotation Speed | 10 rpm | 12 rpm |
| Working Weight | 86.5 Kg | 85 Kg |
| Shipping Weight | 114 Kg | 113 Kg |
| Crate Dimensions | 1010x515x420 mm | 1010x515x420 mm |
DRIVE OPTIONS
To meet the demands of different work environments and user needs, the ID426 Pipe Beveler is available in two drive configurations.
IDE426 – MT Electric Motor Drive
Powered by a high-performance 2.2 kW (2.95 Hp) MT electric motor operating at 220–240 V, 50/60 Hz, the IDE426 delivers stable torque and precise control throughout the cutting process. This version is ideal for use in workshops, fabrication facilities, and industrial environments with consistent electrical power. It is well-suited for continuous operations that require precision, repeatability, and reduced operator fatigue.
IDP426 – Pneumatic Motor Drive
Equipped with a powerful 2.76 kW (3.75 Hp) pneumatic motor, the IDP426 runs at 2.8 m³/min @ 0.6 MPa of compressed air. The air-powered design is explosion-proof and low-maintenance, offering safe and efficient performance in flammable or hazardous work zones. Its lighter construction and high-speed operation make it ideal for on-site pipe beveling in oil & gas, chemical processing, and offshore applications where electric power may be limited.
STANDARD ACCESSORIES
| No. | Description | Qt |
|
1 |
Modle ID426 assembly with motor |
1 |
|
2 |
Jaw block No.1 (Φ280-310 mm,L=15 mm) |
6 |
|
3 |
Jaw block No.2 (Φ310-340 mm,L=30 mm) |
6 |
|
4 |
Jaw block No.3 (Φ370-400 mm,L=60 mm) |
6 |
|
5 |
Jaw block No.4 (Φ305-345 mm,L=80 mm) |
6 |
|
6 |
Jaw block No.5 (Φ400-430 mm,L=75 mm) |
6 |
|
7 |
42F-2020-0°,M42 Facing tool, 20×20 mm, 0° |
1 |
|
8 |
42B-2020-30°,M42 Beveling tool, 20×20 mm, 30° |
1 |
|
9 |
42B-2020-37.5°,M42 Beveling tool, 20×20 mm, 37.5° |
1 |
|
10 |
Hex L-key 5 mm |
1 |
|
11 |
Hex L-key 6 mm |
1 |
|
12 |
Combination open end wrench, 30-32 mm |
1 |
|
13 |
Manual and certificates |
1 |
MOUNTING RANGE
| Jaw Blocks and Ramp Sets | |
| Jaw block No. | ID Mounting Range |
|
None |
Φ250-280 mm (9.843"-11.024") |
|
NO.01 |
Φ280-310 mm (11.024"-12.205") |
|
NO.02 |
Φ310-340 mm (12.205"-13.386") |
|
NO.03 |
Φ340-370 mm (13.386"-14.567") |
|
NO.04 |
Φ370-400 mm (14.567"-15.748") |
|
NO.05 |
Φ400-426 mm (15.748"-16.772") |
TOOLBIT OPTIONS
PIPE BEVELER SELECTION TABLE
| Model | ID Mounting Range | Cutting Range (ID-OD) |
| ID30 | Φ15-28 mm (0.59"-1.10") | Φ15-36 mm (0.59"-1.42") |
| ID90 | Φ25-79 mm (0.98"-3.11") | Φ25-89 mm (0.98"-3.50") |
| ID120 | Φ40-112 mm (1.57"-4.41") | Φ40-120 mm (1.57"-4.72") |
| ID159 | Φ60-160 mm (2.36"-6.30") | Φ60-159 mm (2.36"-6.26") |
| ID219 | Φ65-215 mm (2.56"-8.46") | Φ65-219 mm (2.56"-8.62") |
| ID252 | Φ80-260 mm (3.15"-10.24") | Φ80-273 mm (3.15"-10.75") |
| ID352 | Φ145-345 mm (5.71"-13.58") | Φ145-356 mm (5.71"-14.02") |
| ID426 | Φ250-426 mm (9.84"-16.77") | Φ250-426 mm (9.84"-16.77") |
| ID630 | Φ300-630 mm (11.81"-24.80") | Φ300-630 mm (11.81"-24.80") |
