12.6–59 Inches Large Diameter High Efficiency Flange Resurfacing Machine and ID Mount Flange Facer
| MOQ: | 1 |
| Price: | 11000USD-44000USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
FI60
Facing Range:
12.6"–59" (320–1500 Mm)
ID Mounting Range:
11.4"–57" (290–1450 Mm)
Drive Options:
Pneumatic (FI60P) / Electric (FI60E)
Feed Speeds:
0.14, 0.19, 0.23, 0.31, 0.50, 0.67 Mm/rev
Highlight:
12.6 Inches Flange Resurfacing Machine
,59 Inches Flange Facing Device
,59 Inches Flange Resurfacing Machine
Product Description
12.6–59 Inches Flange Resurfacing Machine Large Diameter High Efficiency Flange Facing Device
ID Mount Flange Facer FI60 Application in KOBELCO Centrifugal Compressor Manufacturing
Case Introduction
KOBELCO Wuxi Compressor Co., Ltd. (KOBELCO) specializes in high-precision centrifugal compressors with stringent tolerance requirements. Large-diameter volute flanges are critical sealing interfaces; even minor surface imperfections can lead to leakage, efficiency loss, and costly maintenance.

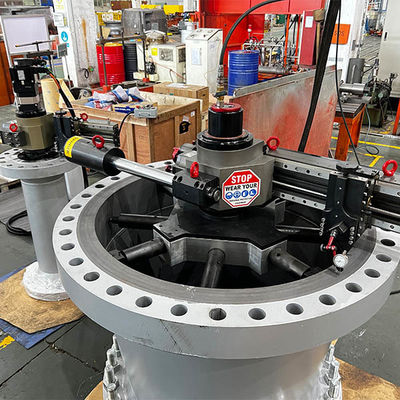

In 2025, MT Portable Machine deployed the FI60P ID Mount Flange Facer for on-site resurfacing of these large flanges. Its reinforced spindle, modular structure, and high rigidity allowed precise machining directly on-site, eliminating heavy disassembly and ensuring minimal production disruption.
Technical Specifications
| Item | FI60P (Pneumatic) | FI60E (Electric) |
|---|---|---|
| Drive Type | Pneumatic Motor (4.1 Hp / 3.0 kW) | Panasonic Servo Motor (4.1 Hp / 3.0 kW) |
| Air Consumption | 2.9m³/min @ 0.6 MPa | N/A |
| Voltage | N/A | 380V, 50/60 Hz |
| Facing Diameter | 320-1500 mm (12.6"-59") | 320-1500 mm (12.6"-59") |
| ID Mounting Range | 290-1450 mm (11.4"-57") | 290-1450 mm (11.4"-57") |
| Feed Speed | 0.14,0.19,0.23,0.31,0.5,0.67 mm/rev | 0.14,0.19,0.23,0.31,0.5,0.67 mm/rev |
| Rotation Speed | 5-22 rpm | 0-40 rpm |
| Shipping Weight | 650 kg | 699 kg |
| Shipping Dimensions | 1480×725×1060 mm | 1480×725×1060 mm |
Performance and Value Delivered
The FI60 ID Mount Flange Facer delivered remarkable results:
- Restored large-diameter volute flange sealing surfaces to exacting industry standards
- Ensured reliable and safe operation of centrifugal compressors under high operational loads
- Minimized downtime by performing on-site machining without removing large components
- Achieved high-precision finishes with reinforced spindle rigidity and stable cutting performance
- Strengthened MT Portable Machine's reputation as a premium on-site machining solution provider
Its precision, adaptability, and efficiency were critical in maintaining KOBELCO's production quality, operational safety, and equipment reliability.
Key Industry Challenges Solved by FI60
- Large flange surface defects: Precisely restored sealing faces to meet stringent tolerances
- High downtime and disassembly costs: On-site machining minimized interruptions and avoided costly removals
- Challenging field conditions: Portable, modular design adapted to large, heavy components in restricted spaces
- Strict quality and tolerance requirements: Consistently achieved high-precision finishes on critical flanges
- Operational safety and efficiency risks: Ensured reliable sealing and stable compressor performance
