Reliable ID Mount Flange Facer Modular 80 Inches High Performance
| MOQ: | 1 |
| Price: | 15000USD-60000USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
80 Inches ID Mount Flange Facer
,80 Inches flange facing equipment
,Reliable ID Mount Flange Facer
FI80 ID Mount Flange Facer for On-Site Heat Exchanger Repair Projects
CASE INTRODUCTION
Zhejiang Petrochemical (ZPC) is one of China’s largest integrated refining and chemical enterprises, specializing in petroleum refining, advanced chemical materials, and specialty products. Its large-scale production facilities and complex process equipment demand high safety standards, reliability, and sustainable operation. In the heat exchanger industry, equipment continuously operates under high temperature, high pressure, and corrosive chemical environments, which over time can cause sealing surface wear, leakage, and failures. These issues not only result in production losses and safety risks but also lead to costly unplanned downtime.

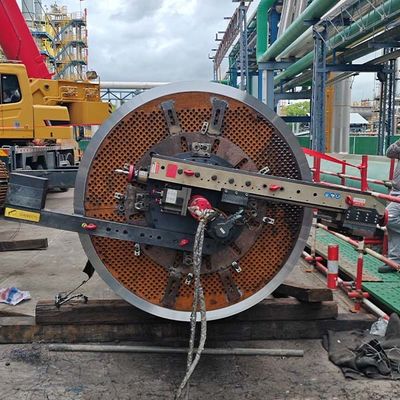

To address this challenge, on July 7, 2025, Zhejiang Petrochemical applied the FI80E Flange Facing Machine (ID Mount Flange Facer) from MT Portable Machine on-site in Zhejiang Province. The machine’s modular design and portability enabled rapid setup, precise machining, and efficient maintenance directly at the site, without removing large equipment. This solution ensured safe, stable, and efficient operations.
SPECIFICATIONS
| Item | FI80P (Pneumatic) | FI80E (Electric) |
|---|---|---|
| Drive Type | Pneumatic Motor (4.1 Hp / 3.0 kW) | Panasonic Servo Motor (4.1 Hp / 3.0 kW) |
| Air Consumption | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | N/A | 220–240 V, 50/60 Hz |
| Facing Diameter | 670–2032 mm (26.3"–80") | 670–2032 mm (26.3"–80") |
| ID Mounting Range | 790–1900 mm (31.1"–74.8") | 790–1900 mm (31.1"–74.8") |
| Feed Speed | 0.15,0.2,0.24,0.32,0.5,0.69 mm/rev | 0.15,0.2,0.24,0.32,0.5,0.69 mm/rev |
| Rotation Speed | 28 rpm | 0-23 rpm |
| Shipping Weight | 1025 kg | 1075 kg |
| Shipping Dimensions | 2015×800×880 mm | 2015×800×880 mm |
PERFORMANCE AND VALUE DELIVERED
The FI80E Flange Facing Machine delivered outstanding results
- Restored sealing faces to industry reuse standards.
- Extended the service life of heat exchangers.
- Ensured safe and reliable operations under extreme conditions.
- Reduced downtime and avoided costly shutdowns.
- Lowered maintenance costs by preventing equipment replacement
Its precision, adaptability, and efficiency proved critical in safeguarding ZPC’s production safety and operational stability.
KEY INDUSTRY CHALLENGES SOLVED BY FI80
Sealing surface wear and leakage
precisely restores sealing faces to ensure proper performance.
High downtime and maintenance costs
on-site machining minimizes shutdown duration and reduces maintenance expenses.
Difficult field conditions
modular, flexible design adapts to high temperature, high pressure, and corrosive environments.
Production safety and efficiency risks
ensures reliable operation and maintains safe, stable production.
FLANGE FACER MACHINE SELECTION TABLE
|
Model |
Facing Diameter Range |
ID/OD Mounting Range |
Drive Type |
|
FI14M |
1.07" to 14" (27.2–355.6 mm) |
1.07" to 10.63" (27.2–270 mm) |
Manual |
|
FE12P |
0–12" (0–305 mm) |
2–17.7" (50–450 mm) |
Pneumatic (1.0 kW) |
|
FE12E |
0–12" (0–305 mm) |
2–17.7" (50–450 mm) |
Electric Servo motor (1.0 kW) |
|
FI26P |
4.72–27.56" (120–700 mm) |
3.78–28.35" (96–720 mm) |
Pneumatic (1.0 kW) |
|
FI26E |
4.72–27.56" (120–700 mm) |
3.78–28.35" (96–720 mm) |
Electric Servo motor (1.0 kW) |
|
FI40P |
6–40" (153–1000 mm) |
5.7–35.8" (145–910 mm) |
Pneumatic (1.7 kW) |
|
FI40E |
6–40" (153–1000 mm) |
5.7–35.8" (145–910 mm) |
Electric Servo motor (1.5 kW) |
|
FI60P |
12.6–59" (320–1500 mm) |
11.4–57" (290–1450 mm) |
Pneumatic (3.0 kW) |
|
FI60E |
12.6–59" (320–1500 mm) |
11.4–57" (290–1450 mm) |
Electric Servo motor (3.0 kW) |
|
FI80P |
26.34–80" (670–2032 mm) |
31.1–74.8" (790–1900 mm) |
Pneumatic (3.0 kW) |
|
FI80E |
26.34–80" (670–2032 mm) |
31.1–74.8" (790–1900 mm) |
Electric Servo motor (3.0 kW) |
