Safe Portable Flange Facing Machine ID Mount High Rigidity Flange Facing Equipment
| MOQ: | 1 |
| Price: | 5500USD-22000USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Safe Portable Flange Facing Machine
,Safe flange facing equipment
,High Rigidity Portable Flange Facing Machine
FI40 ID Mount Flange Facer Application in KOBELCO Centrifugal Compressor Manufacturing
CASE INTRODUCTION
KOBELCO Wuxi Compressor Co., Ltd. (KOBELCO) is a leading manufacturer of centrifugal compressors, supplying high-precision equipment for industrial and energy applications worldwide. Centrifugal compressor volute flanges are critical sealing interfaces, and scratches, uneven surfaces, or minor deformations can compromise sealing performance, reduce efficiency, and pose safety risks.

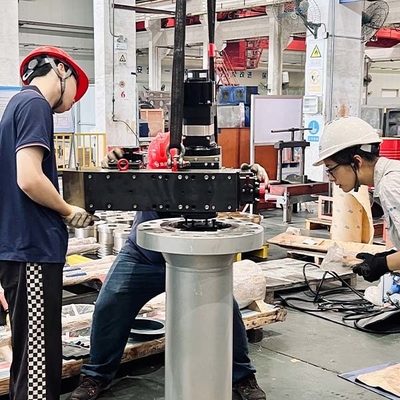

In 2025, MT Portable Machine deployed the FI40 Flange Facing Machine for on-site machining of volute flange sealing surfaces. The machine’s portable, modular design and high rigidity allowed rapid setup and precise repair without dismantling heavy compressor components.
TECHNIAL SPECIFICATIONS
| Item | FI40P (Pneumatic) | FI40E (Electric) |
|---|---|---|
| Drive Type | Pneumatic Motor (2.2 Hp / 1.7 kW) | Panasonic Servo Motor (2.2 Hp / 1.7 kW) |
| Air Consumption | 1.8 m³/min @ 0.6 MPa | N/A |
| Voltage | N/A | 220–240 V, 50/60 Hz |
| Facing Diameter | 153–1000 mm (6"–40") | 153–1000 mm (6"–40") |
| ID Mounting Range | 145–910 mm (3.78"–28.35") | 145–910 mm (3.78"–28.35") |
| Feed Speed | 0.11,0.14,0.17,0.23,0.37,0.5 mm/rev | 0.11,0.14,0.17,0.23,0.37,0.5 mm/rev |
| Rotation Speed | 10-33 rpm | 0-40 rpm |
| Shipping Weight | 310 kg | 350 kg |
| Shipping Dimensions | 1250×640×605 mm | 1250×640×775 mm |
PERFORMANCE AND VALUE DELIVERED
The FI40 Flange Facing Machine delivered outstanding results:
- Restored volute flange sealing surfaces to industry reuse standards.
- Ensured safe, reliable operation of centrifugal compressors.
- Minimized downtime and avoided costly disassembly.
- Delivered high precision with enhanced rigidity and stable cutting performance.
- Reinforced MT Portable Machine’s reputation as a premium on-site machining solution provider.
Its precision, robustness, and efficiency proved essential in maintaining KOBELCO’s production quality and operational reliability.
KEY INDUSTRY CHALLENGES SOLVED BY FI40
Sealing surface defects on volute flanges
precisely restored sealing faces.
High downtime and disassembly costs
on-site machining minimized compressor downtime.
Difficult field conditions
portable, modular design adapted to tight spaces.
Strict quality requirements
high-precision finishes met world-class standards.
Operational safety and efficiency risks
ensured reliable sealing and stable compressor performance.
FLANGE FACER MACHINE SELECTION TABLE
|
Model |
Facing Diameter Range |
ID/OD Mounting Range |
Drive Type |
|
FI14M |
1.07" to 14" (27.2–355.6 mm) |
1.07" to 10.63" (27.2–270 mm) |
Manual |
|
FE12P |
0–12" (0–305 mm) |
2–17.7" (50–450 mm) |
Pneumatic (1.0 kW) |
|
FE12E |
0–12" (0–305 mm) |
2–17.7" (50–450 mm) |
Electric Servo motor (1.0 kW) |
|
FI26P |
4.72–27.56" (120–700 mm) |
3.78–28.35" (96–720 mm) |
Pneumatic (1.0 kW) |
|
FI26E |
4.72–27.56" (120–700 mm) |
3.78–28.35" (96–720 mm) |
Electric Servo motor (1.0 kW) |
|
FI40P |
6–40" (153–1000 mm) |
5.7–35.8" (145–910 mm) |
Pneumatic (1.7 kW) |
|
FI40E |
6–40" (153–1000 mm) |
5.7–35.8" (145–910 mm) |
Electric Servo motor (1.5 kW) |
|
FI60P |
12.6–59" (320–1500 mm) |
11.4–57" (290–1450 mm) |
Pneumatic (3.0 kW) |
|
FI60E |
12.6–59" (320–1500 mm) |
11.4–57" (290–1450 mm) |
Electric Servo motor (3.0 kW) |
|
FI80P |
26.34–80" (670–2032 mm) |
31.1–74.8" (790–1900 mm) |
Pneumatic (3.0 kW) |
|
FI80E |
26.34–80" (670–2032 mm) |
31.1–74.8" (790–1900 mm) |
Electric Servo motor (3.0 kW) |
