FI26 ID Mount Flange Facer with Φ700mm Machining Capacity for Internally Mounted ASME B16.5 Surface Finish
| MOQ: | 1 |
| Price: | 5000USD-20000USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
ID Mount Flange Resurfacing Machine
,ID Mount flange facer machine
,stable Flange Resurfacing Machine
Tianhua Institute (Nanjing), a subsidiary of Sinochem Holdings, is a leading manufacturer in the pressure vessel and chemical equipment industry, with strict quality standards for fabrication and sealing. Pressure vessels operate under high pressure, high temperature, and corrosive conditions, where flange defects—scratches, warping, or wear—can cause leakage, downtime, and costly rework.

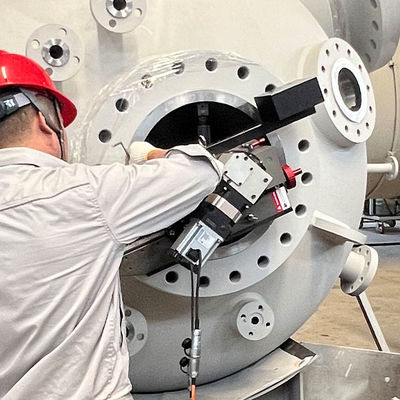

To solve this, the MT Portable Machine team quickly deployed the FI26E Flange Facing Machine on-site in Nanjing. Based on the MM610i platform, the FI26E features a reinforced spindle for superior rigidity and precision, with a Φ700mm machining capacity. Its modular design and high-precision feed enabled fast setup, accurate alignment, and full restoration of sealing surfaces without equipment disassembly, minimizing downtime and ensuring safe, reliable operations.
| Item | FI26P (Pneumatic) | FI26E (Electric) |
|---|---|---|
| Drive Type | Pneumatic Motor (1.34 Hp / 1.0 kW) | Panasonic Servo Motor (1.34 Hp / 1.0 kW) |
| Air Consumption | 1.3 m³/min @ 0.6 MPa | N/A |
| Voltage | N/A | 220-240 V, 50/60 Hz |
| Facing Diameter | 120-700 mm (4.72"-27.56") | 120-700 mm (4.72"-27.56") |
| ID Mounting Range | 96-720 mm (3.78"-28.35") | 96-720 mm (3.78"-28.35") |
| Feed Speed | 0.125 & 0.5 mm/rev | 0.125 & 0.5 mm/rev |
| Rotation Speed | 45 rpm | 45 rpm |
| Shipping Weight | 161 kg | 177 kg |
| Shipping Dimensions | 865×600×600 mm | 865×600×600 mm |
The FI26 Flange Facing Machine delivered outstanding results:
- Restored large-diameter flange sealing surfaces to industry standards
- Ensured safe and reliable operation of pressure vessels in chemical equipment manufacturing
- Reduced downtime and avoided costly disassembly or replacement
- Delivered high precision with enhanced rigidity and stable cutting performance
- Reinforced MT Portable Machine's reputation as a customer-focused on-site machining solution provider
Its precision, robustness, and efficiency proved essential in maintaining Tianhua's production safety, equipment reliability, and operational efficiency.
- Large flange repair (up to Φ700mm): High-capacity machine enabled precise on-site resurfacing
- Strict quality requirements: FI26E delivered repeatable high-precision sealing faces
- Time-sensitive on-site repair: Rapid MT team response minimized customer downtime
- Demand for reliable operation under extreme conditions: Enhanced rigidity and stability ensured sealing integrity
| Model | Facing Diameter Range | ID/OD Mounting Range | Drive Type |
|---|---|---|---|
| FI14M | 1.07" to 14" (27.2-355.6 mm) | 1.07" to 10.63" (27.2-270 mm) | Manual |
| FE12P | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Pneumatic (1.0 kW) |
| FE12E | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Electric Servo motor (1.0 kW) |
| FI26P | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Pneumatic (1.0 kW) |
| FI26E | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Electric Servo motor (1.0 kW) |
| FI40P | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Pneumatic (1.7 kW) |
| FI40E | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Electric Servo motor (1.5 kW) |
| FI60P | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Pneumatic (3.0 kW) |
| FI60E | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Electric Servo motor (3.0 kW) |
| FI80P | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Pneumatic (3.0 kW) |
| FI80E | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Electric Servo motor (3.0 kW) |
