1.5" Pneumatic Tube Facing Machine - Compact ID-Mounted Pipe End Facing Tool for Heat Exchangers
| MOQ: | 1 |
| Price: | 1000USD-3000USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
IDPA38
Document
Drive Type:
Pneumatic Motor (1.34 Hp / 1.0 Kw)
Power Supply:
1.3 M³/min @ 0.6 Mpa
Rotation Speed:
220 Rpm
Highlight:
1.5" Tube Facing Machine
,Pneumatic Motor Pipe End Facing Machine
,Compact ID-Mounted Tube End Facing Tool
Product Description
1.5" Heat Exchanger Tube Facing Machine - IDPA38 Pneumatic Tube End Facing and Beveling Tool
The IDPA38 Heat Exchanger Tube Facing Machine is a compact ID-mounted tube machining tool developed for precise tube end facing and chamfering during heat exchanger maintenance and fabrication.
By mounting inside the tube ID, the machine provides stable cutting performance and produces clean, square tube ends that are ideal for welding preparation, tube replacement, or repair work.
Designed for demanding industrial environments, the IDPA38 offers a combination of lightweight construction, reliable pneumatic power, and high machining accuracy, making it a practical solution for workshops, refineries, and power plants handling heat exchanger tube maintenance.
Specifications
| Model | IDPA38 Pipe Beveling and Facing Machine |
|---|---|
| Drive type | Pneumatic motor (1.34 Hp / 1.0 Kw) |
| Power supply | 1.3 m³/min @ 0.6 Mpa |
| Cutting range (ID-OD) | 0.551-1.576 inches (14-40 mm) |
| ID mounting range | 0.551-1.340 inches (14-34 mm) |
| Wall thickness | ≤0.138 inches (3.5 mm) |
| Feed stroke | 1.0 inch (25.4 mm) |
| Rotation speed | 220 rpm |
| Working weight | 9.0 Kg |
| Shipping Weight | 30.0 Kg |
| Crate dimensions (L×W×H) | 680×650×275 mm |
Product Advantages
Lightweight and Durable Construction
Manufactured from high-strength 7075 aluminum alloy, the machine weighs only 9 kg, making it easy to handle and transport for field maintenance tasks.
Pneumatic Self-Centering Lock System
The integrated pneumatic clamping system allows quick positioning inside the tube while maintaining excellent stability during cutting operations.
Smooth Lever Feed Operation
A manual lever feed mechanism provides controlled and efficient cutting movement, reducing operator effort while improving machining consistency.
Wide Tube Compatibility
The system includes 10 interchangeable spring collets and 4 cutting heads, enabling it to adapt to a wide range of heat exchanger tube sizes commonly used in industry.
High Torque Pneumatic Motor
The powerful pneumatic drive provides stable torque output and allows clean machining of tube walls up to 3.5 mm thick.
Precision Bearing Assembly
Equipped with NSK heavy-duty tapered roller bearings, the machine ensures smooth rotation, improved rigidity, and longer service life.
Adjustable Mounting and Cutting Depth
Dual adjustable stop systems allow operators to precisely control both installation depth and cutting depth, ensuring consistent machining results.

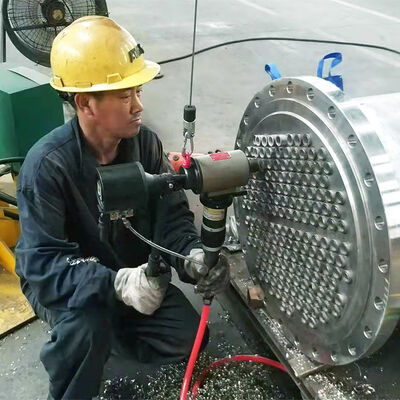

Suspension-Ready Design
A built-in lifting ring allows the machine to be connected to a spring balancer, reducing operator fatigue when working in elevated or confined positions.
Portable Protective Case
All components are packed in a durable transport case, protecting the equipment during transport and storage.
Application Industries
The IDPA38 tube facing machine is widely used in industries where accurate tube end preparation is essential before welding or tube installation.
Common applications include:
- Heat exchanger manufacturing and maintenance
- Boiler tube repair operations
- Oil and gas refinery maintenance
- Petrochemical processing plants
- Power generation facilities
- Offshore and marine engineering
- Industrial fabrication workshops
This machine provides a fast and reliable solution wherever precise tube end facing and beveling is required.
Improve Efficiency in Tube Maintenance
The IDPA38 Heat Exchanger Tube Facing Machine offers a practical solution for professionals who require accurate, efficient, and portable tube end machining.
With its lightweight structure, powerful pneumatic drive, and precise cutting performance, the IDPA38 helps technicians complete tube preparation tasks faster while maintaining high machining quality.
