1.5" Pneumatic Motor Tube Facing Machine - Lightweight ID-Mounted Pipe End Facing Tool
| MOQ: | 1 |
| Price: | 1000USD-3000USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
IDPA38
Document
Drive Type:
Pneumatic Motor (1.34 Hp / 1.0 Kw)
Power Supply:
1.3 M³/min @ 0.6 Mpa
Rotation Speed:
220 Rpm
Highlight:
1.5" Tube Facing Machine
,Pneumatic Motor Pipe End Facing Machine
,Lightweight ID-Mounted Tube End Facing Tool
Product Description
1.5" Pneumatic Heat Exchanger Tube Facing Machine
IDPA38 Internal Tube End Facing and Beveling Tool

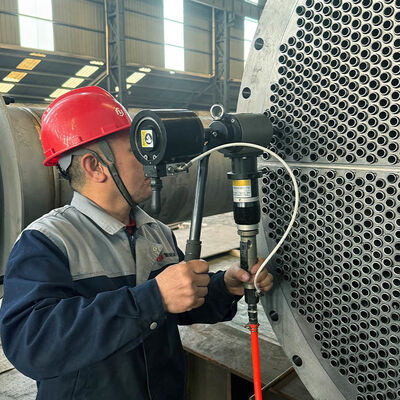

The IDPA38 Heat Exchanger Tube Facing Machine is a lightweight, ID-mounted tube machining solution designed for accurate tube end facing and chamfering during heat exchanger fabrication and maintenance. By mounting inside the tube's ID, it ensures stable cutting, producing square and clean tube ends that are ready for welding, tube replacement, or repair applications. Built for industrial use, the IDPA38 combines portability, reliable pneumatic power, and high-precision machining—perfect for workshops, refineries, power plants, and other environments requiring routine heat exchanger maintenance.
Specifications
| Model | IDPA38 Pipe Beveling and Facing Machine |
|---|---|
| Drive type | Pneumatic motor (1.34 Hp / 1.0 Kw) |
| Power supply | 1.3 m³/min @ 0.6 Mpa |
| Cutting range (ID-OD) | 0.551-1.576 inches (14-40 mm) |
| ID mounting range | 0.551-1.340 inches (14-34 mm) |
| Wall thickness | ≤0.138 inches (3.5 mm) |
| Feed stroke | 1.0 inch (25.4 mm) |
| Rotation speed | 220 rpm |
| Working weight | 9.0 Kg |
| Shipping Weight | 30.0 Kg |
| Crate dimensions (L×W×H) | 680×650×275 mm |
Product Advantages
Lightweight Yet Robust Construction
Made from high-strength 7075 aluminum alloy, the IDPA38 weighs just 9 kg, offering excellent portability for field maintenance and workshop tasks.
Pneumatic Self-Centering Clamping
Quickly positions inside the tube while providing exceptional stability during cutting operations.
Manual Lever Feed Mechanism
Provides smooth, controlled feed for efficient tube end cutting, reducing operator fatigue and improving machining consistency.
Versatile Tube Compatibility
Equipped with 10 interchangeable spring collets and 4 cutting heads to cover a wide range of standard industrial tube sizes.
High-Torque Pneumatic Motor
Delivers consistent torque and cleanly machines tube walls up to 3.5 mm thick.
Precision Bearing Assembly
NSK tapered roller bearings guarantee smooth rotation, enhanced rigidity, and extended service life.
Adjustable Mounting and Cutting Depth
Dual stop systems allow precise control of installation depth and cutting depth for consistent results.
Ergonomic Suspension Capability
Built-in lifting ring enables connection to a spring balancer, reducing operator strain when working in confined or elevated areas.
Durable Transport Case
Provides full protection for all components during transport and storage.
Application Industries
The IDPA38 tube facing machine is ideal for any setting where accurate tube end preparation is essential before welding or installation:
- Heat exchanger production and servicing
- Boiler tube maintenance
- Oil and gas refinery operations
- Petrochemical plant tube repair
- Power generation and energy facilities
- Offshore and marine engineering projects
- Industrial fabrication workshops
This machine delivers fast, reliable, and high-quality results wherever precise tube end facing and beveling are required.
