1.5" Compact ID Mounted Pneumatic Tube Facing Machine for Heat Exchanger Tubes
| MOQ: | 1 |
| Price: | 1000USD-3000USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
1.5" Tube Facing Machine
,1.5" pipe end facing machine
,Compact Tube Facing Machine
The Model IDPA38 Pipe beveling and facing machine is an ID Mount Machine tool for facing and chamfering the ends of tubing and tube sheet bores in preparation for welding and finish squaring.
The IDPA38 Heat Exchanger Tube Facing Machine is a compact, ID-mounted pneumatic tool engineered specifically for facing and beveling the ends of heat exchanger tubes. Designed for speed, accuracy, and durability, it ensures clean, square tube ends for optimal weld preparation and sealing. Ideal for fabrication shops, refineries, and power plants, this tool significantly improves efficiency during tube repair or assembly.
| Model | IDPA38 Pipe Beveling and Facing Machine |
| Drive type | Pneumatic motor (1.34 Hp / 1.0 Kw) |
| Power supply | 1.3 m³/min @ 0.6 Mpa |
| Cutting range (ID-OD) | 0.551-1.576 inches (14-40 mm) |
| ID mounting range | 0.551-1.340 inches (14-34 mm) |
| Wall thickness | ≤0.138 inches (3.5 mm) |
| Feed stroke | 1.0 inch (25.4 mm) |
| Rotation speed | 220 rpm |
| Working weight | 9.0 Kg |
| Shipping Weight | 30.0 Kg |
| Crate dimensions (L×W×H) | 680×650×275 mm |
- Compact & Lightweight: Made from durable 7075 aluminum alloy; total working weight is only 9.0 kg, ideal for on-site handling.
- Pneumatic Auto-Locking System: Ensures fast and repeatable setup, reducing downtime during high-volume operations.
- Efficient Lever Feed Mechanism: Smooth and fast feed motion reduces operator fatigue.
- Versatile Cutting Capability: Includes 10 types of spring collets and 4 cutting heads to match nearly all heat exchanger tube sizes on the market.
- Material Flexibility: Handles carbon steel, stainless steel, non-ferrous alloys, Inconel, duplex, and titanium with ease.
- High Torque Pneumatic Motor: Delivers enough power to cleanly cut 3.5 mm tube walls.
- Precision Bearing System: NSK heavy-duty tapered roller bearings ensure smooth, rigid operation.
- Adjustable Stops: Set both mounting depth and cutting depth for accurate, repeatable results.

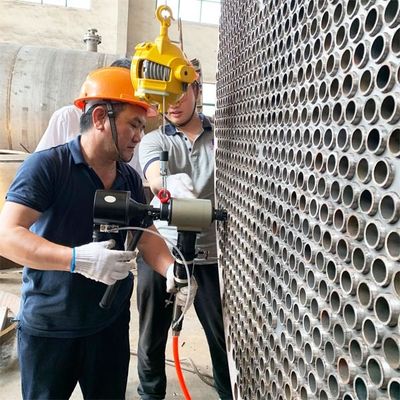

- Overhead Mounting Ready: Includes hoist ring for balancer use in suspended work.
- Portable & Protected: Comes in a compact, rugged transport case for safe storage and mobility.
- Heat Exchanger and Boiler Manufacturing
- Refinery and Petrochemical Plants
- Power Generation Facilities
- Marine and Offshore Engineering
- Industrial Fabrication Workshops
- Chemical Processing Plants
The IDPA38 excels in any application requiring precise tube end preparation before welding or reassembly.
The IDPA38 Heat Exchanger Tube Facing Machine delivers consistent, high-precision results with minimal setup time. Lightweight yet powerful, it is the ideal tool for professionals seeking speed, reliability, and versatility in demanding environments.
