FI14M Hand Powered Portable Flange Facer with ASME B16.5 Standard and 1.07" to 14" Facing Diameter
| MOQ: | 1 |
| Price: | 1350USD-5400USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
FI14M
Document
Shipping Dimensions:
680 × 510 × 250 Mm
Facing Standard:
ASME B16.5
Facing Types:
Smooth Face & Spiral Serrated Finish
Working Weight:
9.0 Kg
Shipping Weight:
29.0 Kg
Highlight:
hand powered flange facing tool
,portable flange facer tool
,FI14M flange facing machine
Product Description

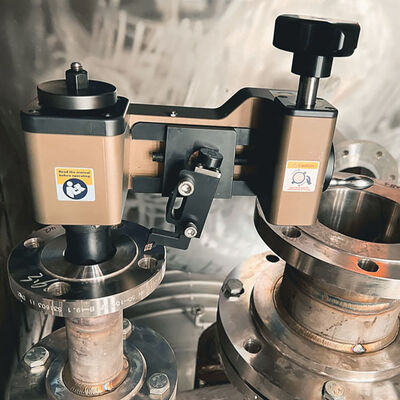

FI14M Portable Hand Powered Flange Facing Tool
The FI14M is a manual, hand-operated flange facing tool developed for on-site flange resurfacing where external power is unavailable or unsafe. Designed for mobility, accuracy, and durability, it allows technicians to restore damaged flange sealing surfaces quickly and reliably in the field.
Unlike powered flange facing machines, the FI14M operates entirely without electricity, air, or hydraulics, making it an ideal solution for remote locations, elevated pipelines, and hazardous work environments.
Specifications
| Model | FI14M Manual Flange Facing Machine |
|---|---|
| Facing Diameter Range | 1.07" to 14" (27.2-355.6 mm) |
| ID Mounting Range | 1.07" to 10.63" (27.2-270 mm) |
| Drive Type | Manual (no external power required) |
| Feed Speeds | Fine feed: 0.125 mm/rev (0.005 inch/rev) ASME B16.5 standard feed: 0.5 mm/rev (0.02 inch/rev) |
| Minimum Swing Diameter | With knob handle: 22.9" (582 mm) Without knob handle: 19.5" (495 mm) |
| Working Weight | 9.0 kg |
| Shipping Weight | 29.0 kg |
| Shipping Dimensions (L×W×H) | 680 × 510 × 250 mm (Plastic carry case) |
Key Features
- 100% Manual Operation: No power supply required. The FI14M is fully hand-powered, ensuring safe and dependable operation in areas with restricted access or strict safety requirements.
- Ultra-Portable Design: With a total weight of just 9.0 kg, the tool can be easily handled and operated by a single technician. Its compact structure is well suited for tight spaces, vertical lines, and overhead work.
- Accurate Surface Finishing: The manual swing-arm mechanism with dual feed options delivers smooth or stock-finish spiral serrations, meeting ASME B16.5 flange surface finish standards.
- Fast Internal Clamping System: MT's precision internal mounting system allows quick alignment and secure installation, ensuring concentric machining with uniform cutting depth and consistent results.
- Built for Field Use: Manufactured from high-strength, precision-machined components, the FI14M offers long service life and reliable performance in demanding industrial conditions.
Typical Applications
- On-site flange resurfacing and repair
- Oil and gas pipeline maintenance
- Chemical plants and refineries
- Power generation facilities
- Confined, remote, or elevated work areas
- Raised-face and flat-face flange restoration
The FI14M Portable Hand Powered Flange Facing Tool is a practical and cost-effective solution for maintenance teams seeking power-free, accurate, and portable flange machining.
Flange Facer Machine Selection Table
| Model | Facing Diameter Range | ID/OD Mounting Range | Drive Type |
|---|---|---|---|
| FI14M | 1.07" to 14" (27.2-355.6 mm) | 1.07" to 10.63" (27.2-270 mm) | Manual |
| FE12P | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Pneumatic (1.0 kW) |
| FE12E | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Electric Servo motor (1.0 kW) |
| FI26P | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Pneumatic (1.0 kW) |
| FI26E | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Electric Servo motor (1.0 kW) |
| FI40P | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Pneumatic (1.7 kW) |
| FI40E | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Electric Servo motor (1.5 kW) |
| FI60P | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Pneumatic (3.0 kW) |
| FI60E | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Electric Servo motor (3.0 kW) |
| FI80P | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Pneumatic (3.0 kW) |
| FI80E | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Electric Servo motor (3.0 kW) |
