26 Inch ID Mount Flange Facer Portable Flange Facing Machine Precision Engineered
| MOQ: | 1 |
| Price: | 5000USD-20000USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
26 Inch ID Mount Flange Facer
,26 Inch Portable Flange Facing Machine
,Precision Engineered ID Mount Flange Facer

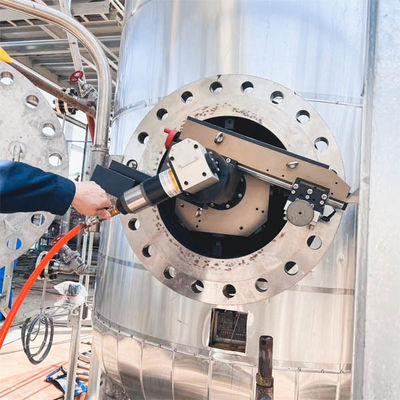

FI26 Flange Facer – Internally Mounted Portable Flange Facing Machine (4.72–27.56")
The FI26 Flange Facer is a precision-engineered portable flange resurfacing machine designed for on-site flange facing and repair applications. With a machining range of 120 mm to 700 mm (4.72”–27.56”), the FI26 is internally mounted and operates in any orientation—horizontal, vertical, or overhead. It is widely used for reconditioning corroded, worn, or damaged flange sealing surfaces to meet ASME B16.5 standards. Whether you’re repairing flat face (FF), raised face (RF), ring-type joint (RTJ), or other complex groove profiles, the FI26 offers fast setup, high precision, and rugged dependability in field
SPECIFICATIONS
| Item | FI26P (Pneumatic) | FI26E (Electric) |
|---|---|---|
| Drive Type | Pneumatic Motor (1.34 Hp / 1.0 kW) | Panasonic Servo Motor (1.34 Hp / 1.0 kW) |
| Air Consumption | 1.3 m³/min @ 0.6 MPa | N/A |
| Voltage | N/A | 220–240 V, 50/60 Hz |
| Facing Diameter | 120–700 mm (4.72"–27.56") | 120–700 mm (4.72"–27.56") |
| ID Mounting Range | 96–720 mm (3.78"–28.35") | 96–720 mm (3.78"–28.35") |
| Feed Speed | 0.125 & 0.5 mm/rev | 0.125 & 0.5 mm/rev |
| Rotation Speed | 45 rpm | 45 rpm |
| Shipping Weight | 161 kg | 177 kg |
| Shipping Dimensions | 865×600×600 mm | 865×600×600 mm |
PRODUCT ADVANTAGES
Why Choose the FI26 Flange Facer?
Compact Modular Design
Lightweight yet robust, with quick-disassembly capability for convenient transport and setup.
Precision & Rigidity
Equipped with NSK high-precision bearings and linear guideways to ensure stable and accurate cutting.
Dual Feed Speeds
Two continuous groove feed rates (0.125 mm/rev and 0.5 mm/rev) deliver ASME-compliant smooth and phonographic finishes.
Flexible Motor Options
Available in pneumatic or electric (Panasonic servo motor) drive configurations to suit site conditions.
Versatile Machining Capabilities
Handles FF, RF, RTJ, T&G, lens ring, and compact flanges with ease.
Adjustable Mounting Bases
Three quick-set ID-mount base sizes with micro-adjustable jaws for accurate centering and alignment.
360° Swivel Tool Post
Allows for multi-angle machining and custom groove configurations.
Ideal for Harsh Environments
Trusted for field machining in offshore, power generation, petrochemical, and process industries.
APPLICATION INDUSTRIES
- Oil & Gas Pipelines and Refineries
- Chemical & Petrochemical Facilities
- Power Generation Plants (Nuclear, Thermal, Hydro)
- Marine and Offshore Platform Maintenance
- Industrial Equipment Repair Shops
- Pressure Vessel Manufacturing
FLANGE FACER MACHINE SELECTION TABLE
|
Model |
Facing Diameter Range |
ID/OD Mounting Range |
Drive Type |
|
FI14M |
1.07" to 14" (27.2–355.6 mm) |
1.07" to 10.63" (27.2–270 mm) |
Manual |
|
FE12P |
0–12" (0–305 mm) |
2–17.7" (50–450 mm) |
Pneumatic (1.0 kW) |
|
FE12E |
0–12" (0–305 mm) |
2–17.7" (50–450 mm) |
Electric Servo motor (1.0 kW) |
|
FI26P |
4.72–27.56" (120–700 mm) |
3.78–28.35" (96–720 mm) |
Pneumatic (1.0 kW) |
|
FI26E |
4.72–27.56" (120–700 mm) |
3.78–28.35" (96–720 mm) |
Electric Servo motor (1.0 kW) |
|
FI40P |
6–40" (153–1000 mm) |
5.7–35.8" (145–910 mm) |
Pneumatic (1.7 kW) |
|
FI40E |
6–40" (153–1000 mm) |
5.7–35.8" (145–910 mm) |
Electric Servo motor (1.5 kW) |
|
FI60P |
12.6–59" (320–1500 mm) |
11.4–57" (290–1450 mm) |
Pneumatic (3.0 kW) |
|
FI60E |
12.6–59" (320–1500 mm) |
11.4–57" (290–1450 mm) |
Electric Servo motor (3.0 kW) |
|
FI80P |
26.34–80" (670–2032 mm) |
31.1–74.8" (790–1900 mm) |
Pneumatic (3.0 kW) |
|
FI80E |
26.34–80" (670–2032 mm) |
31.1–74.8" (790–1900 mm) |
Electric Servo motor (3.0 kW) |
Frequently Asked Questions (FAQ) – FI26 Flange Facer
Q1: What is the mounting method for the FI26 flange facer?
A: The FI26 is an internally mounted machine. It clamps securely inside the flange bore using expandable jaws, allowing stable operation in both horizontal and vertical orientations.
Q2: What types of flanges can the FI26 machine?
A: The FI26 can recondition a wide range of flange types, including flat face (FF), raised face (RF), ring-type joint (RTJ), tongue & groove, and custom groove profiles.
Q3: What power options are available for the FI26?
A: The FI26 offers two drive options: a 1.0 kW pneumatic motor (FI26P) for hazardous environments, and a 1.0 kW electric servo motor (FI26E) for applications requiring precise speed control.
Q4: Does the machine provide a standard ASME finish?
A: Yes, the FI26 is equipped with two automatic feed rates (0.125 mm/rev and 0.5 mm/rev), delivering smooth or spiral serrated finishes that meet ASME B16.5 surface requirements.
Q5: What is included in the standard delivery package?
A: Each unit includes the main machine, drive motor, tool post, cutting tool set (with Kennametal inserts), mounting base, storage case, and user manual. Optional accessories are available upon request.
