59 Inch Portable Flange Facer ID Mounted Tool For Flange Refacing
| MOQ: | 1 |
| Price: | 11000USD-44000USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
59 Inch Portable Flange Facer
,59 Inch portable flange facing machine
,ID Mounted Portable Flange Facer
FI60 Flange Facer – 12.6–59" Precision Flange Refacing Tool

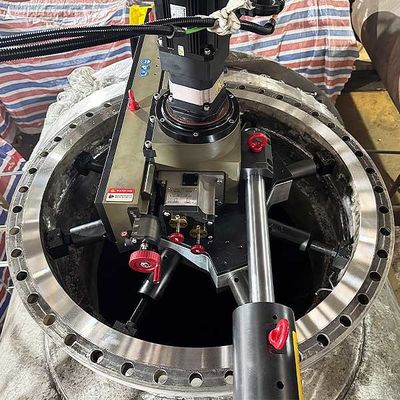

The FI60 Flange Facer is a high-performance, internally mounted flange refacing tool engineered for on-site machining of damaged or corroded flange faces. With a facing diameter of 12.6 to 59 inches (320–1500 mm) and an ID mounting range from 11.4 to 57 inches (290–1450 mm), the FI60 offers unmatched versatility for heavy-duty industrial applications. It is ideal for machining flat face (FF), raised face (RF), ring type joint (RTJ), V-groove, weld overlays, and other custom flange types.Equipped with either a Modec pneumatic motor or a Panasonic electric servo motor, the FI60 delivers precise control, stability, and portability for fieldwork in oil & gas, power generation, petrochemical, and offshore industries.
SPECIFICATIONS
| Item | FI60P (Pneumatic) | FI60E (Electric) |
|---|---|---|
| Drive Type | Pneumatic Motor (4.1 Hp / 3.0 kW) | Panasonic Servo Motor (4.1 Hp / 3.0 kW) |
| Air Consumption | 2.9m³/min @ 0.6 MPa | N/A |
| Voltage | N/A | 380V, 50/60 Hz |
| Facing Diameter | 320–1500 mm (12.6"–59") | 320–1500 mm (12.6"–59") |
| ID Mounting Range | 290–1450 mm (11.4"–57") | 290–1450 mm (11.4"–57") |
| Feed Speed | 0.14,0.19,0.23,0.31,0.5,0.67 mm/rev | 0.14,0.19,0.23,0.31,0.5,0.67 mm/rev |
| Rotation Speed | 5-22 rpm | 0-40 rpm |
| Shipping Weight | 650 kg | 699 kg |
| Shipping Dimensions | 1480×725×1060 mm | 1480×725×1060 mm |
PRODUCT ADVANTAGES
Why Choose the FI60 Flange Facer?
Wide Machining Range
Handles flange diameters up to 59" for large-scale maintenance jobs
Interchangeable Drive Options
Available with air motor or electric servo motor to suit diverse work environments.
6 Continuous Auto-Feed Rates
Enables consistent surface finishes including gramophone finishes per ASME B16.5.
High-Precision Design
Incorporates NSK bearings and precision-ground V-guide rails for superior alignment and cutting accuracy.
Modular Mounting Base
Enables intricate groove machining and fine adjustments.
360° Swivel Tool Post
Facilitates detailed groove machining and flexible tool positioning.
Robust & Portable
Compact design in a waterproof steel crate ensures easy transportation and jobsite readiness.
APPLICATION INDUSTRIES
- Oil & Gas Refineries
- Petrochemical Plants
- Power Generation Facilities
- Offshore Platforms & Rigs
- Shipbuilding & Marine Repair
- Pipeline Construction & Maintenance
FLANGE FACER MACHINE SELECTION TABLE
|
Model |
Facing Diameter Range |
ID/OD Mounting Range |
Drive Type |
|
FI14M |
1.07" to 14" (27.2–355.6 mm) |
1.07" to 10.63" (27.2–270 mm) |
Manual |
|
FE12P |
0–12" (0–305 mm) |
2–17.7" (50–450 mm) |
Pneumatic (1.0 kW) |
|
FE12E |
0–12" (0–305 mm) |
2–17.7" (50–450 mm) |
Electric Servo motor (1.0 kW) |
|
FI26P |
4.72–27.56" (120–700 mm) |
3.78–28.35" (96–720 mm) |
Pneumatic (1.0 kW) |
|
FI26E |
4.72–27.56" (120–700 mm) |
3.78–28.35" (96–720 mm) |
Electric Servo motor (1.0 kW) |
|
FI40P |
6–40" (153–1000 mm) |
5.7–35.8" (145–910 mm) |
Pneumatic (1.7 kW) |
|
FI40E |
6–40" (153–1000 mm) |
5.7–35.8" (145–910 mm) |
Electric Servo motor (1.5 kW) |
|
FI60P |
12.6–59" (320–1500 mm) |
11.4–57" (290–1450 mm) |
Pneumatic (3.0 kW) |
|
FI60E |
12.6–59" (320–1500 mm) |
11.4–57" (290–1450 mm) |
Electric Servo motor (3.0 kW) |
|
FI80P |
26.34–80" (670–2032 mm) |
31.1–74.8" (790–1900 mm) |
Pneumatic (3.0 kW) |
|
FI80E |
26.34–80" (670–2032 mm) |
31.1–74.8" (790–1900 mm) |
Electric Servo motor (3.0 kW) |
Frequently Asked Questions (FAQ) – FI60 Flange Facer
Q1: What is the maximum and minimum flange size the FI60 can machine?
A: The FI60 Flange Facer can machine flanges with a facing diameter from 12.6 inches (320 mm) to 59 inches (1500 mm), and can be mounted internally on flanges with an inner diameter from 11.4 inches (290 mm) to 57 inches (1450 mm).
Q2: What motor options are available for the FI60 model?
A: The FI60 is available with two drive options:
FI60P uses a Modec pneumatic motor (4.1 Hp / 3.0 kW), suitable for explosive or air-powered environments.
FI60E uses a Panasonic electric servo motor (4.1 Hp / 3.0 kW), providing precise speed control for highly accurate cuts.
Q3: Can the FI60 machine different flange face types such as RTJ and V-grooves?
A: Yes, the FI60 is capable of machining various flange face profiles including Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ), tongue and groove, lens ring, and V-groove profiles, as well as weld reparation tasks.
Q4: Is the machine portable and suitable for on-site operations?
A: Absolutely. The FI60 is modular, compact, and designed for field machining. It is supplied in a durable waterproof steel box and can be set up and operated in any orientation.
Q5: How many feed settings does the machine have?
A: The FI60 is equipped with 6 continuous auto-facing feeds for creating a precision gramophone finish (per ASME B16.5), and 6 auto-feed boring settings, enabling smooth and consistent machining operations.
