40 Inch Flange Facer Machine OD Mount Flange Facer Portable For On Site Gasket Surface Repair
| MOQ: | 1 |
| Price: | 8000USD-32000USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
40 Inch Flange Facer Machine
,40 Inch OD Mount Flange Facer
,Portable Flange Facer Machine

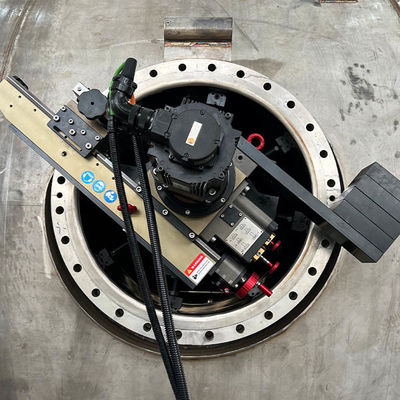

FI40 Flange Facer – Internally Mounted Portable Flange Facing Machine (6–40")
The FI40 Flange Facer is a powerful, internally mounted flange repair solution designed for on-site machining of flange faces ranging from 6 to 40 inches (153–1000 mm). Engineered for both flat face and raised face flanges, RTJ, and custom grooves, this machine restores sealing surfaces on damaged or corroded flanges to meet ASME B16.5 standards. It is widely used in oil & gas, power generation, chemical processing, and offshore maintenance applications. Featuring a compact modular design, the FI40 is available with a pneumatic or electric servo motor, providing flexibility for different job site conditions.
SPECIFICATIONS
| Item | FI40P (Pneumatic) | FI40E (Electric) |
|---|---|---|
| Drive Type | Pneumatic Motor (2.2 Hp / 1.7 kW) | Panasonic Servo Motor (2.2 Hp / 1.7 kW) |
| Air Consumption | 1.8 m³/min @ 0.6 MPa | N/A |
| Voltage | N/A | 220–240 V, 50/60 Hz |
| Facing Diameter | 153–1000 mm (6"–40") | 153–1000 mm (6"–40") |
| ID Mounting Range | 145–910 mm (3.78"–28.35") | 145–910 mm (3.78"–28.35") |
| Feed Speed | 0.11,0.14,0.17,0.23,0.37,0.5 mm/rev | 0.11,0.14,0.17,0.23,0.37,0.5 mm/rev |
| Rotation Speed | 10-33 rpm | 0-40 rpm |
| Shipping Weight | 310 kg | 350 kg |
| Shipping Dimensions | 1250×640×605 mm | 1250×640×775 mm |
PRODUCT ADVANTAGES
Why Choose the FI40 Flange Facer?
Wide Facing Range
Covers flange sizes from 6" to 40", reducing the need for multiple machines.
Dual Drive Options
Choose between Modec pneumatic or Panasonic servo motor for versatility.
High Precision
Equipped with NSK bearings and a "V" linear guide system for smooth, accurate machining.
Six Continuous Feeds
Ensures a gramophone-style finish for tight sealing surfaces.
360° Swivel Tool Post
Enables intricate groove machining and fine adjustments.
Portable & Rugged
Designed for durability and ease of transport with a waterproof steel crate.
Three Adjustable Bases
Allows quick setup and precise alignment on-site.
APPLICATION INDUSTRIES
- Oil & Gas (Pipeline flange repair, wellhead maintenance)
- Chemical Processing Plants
- ower Generation (Nuclear, thermal, hydro)
- Shipbuilding & Offshore Platforms
- Petrochemical Refineries
- Maintenance & Repair Services (MRO)
FLANGE FACER MACHINE SELECTION TABLE
|
Model |
Facing Diameter Range |
ID/OD Mounting Range |
Drive Type |
|
FI14M |
1.07" to 14" (27.2–355.6 mm) |
1.07" to 10.63" (27.2–270 mm) |
Manual |
|
FE12P |
0–12" (0–305 mm) |
2–17.7" (50–450 mm) |
Pneumatic (1.0 kW) |
|
FE12E |
0–12" (0–305 mm) |
2–17.7" (50–450 mm) |
Electric Servo motor (1.0 kW) |
|
FI26P |
4.72–27.56" (120–700 mm) |
3.78–28.35" (96–720 mm) |
Pneumatic (1.0 kW) |
|
FI26E |
4.72–27.56" (120–700 mm) |
3.78–28.35" (96–720 mm) |
Electric Servo motor (1.0 kW) |
|
FI40P |
6–40" (153–1000 mm) |
5.7–35.8" (145–910 mm) |
Pneumatic (1.7 kW) |
|
FI40E |
6–40" (153–1000 mm) |
5.7–35.8" (145–910 mm) |
Electric Servo motor (1.5 kW) |
|
FI60P |
12.6–59" (320–1500 mm) |
11.4–57" (290–1450 mm) |
Pneumatic (3.0 kW) |
|
FI60E |
12.6–59" (320–1500 mm) |
11.4–57" (290–1450 mm) |
Electric Servo motor (3.0 kW) |
|
FI80P |
26.34–80" (670–2032 mm) |
31.1–74.8" (790–1900 mm) |
Pneumatic (3.0 kW) |
|
FI80E |
26.34–80" (670–2032 mm) |
31.1–74.8" (790–1900 mm) |
Electric Servo motor (3.0 kW) |
Frequently Asked Questions (FAQ) – FI40 Flange Facer
Q1: What is the maximum and minimum flange diameter the FI40 can machine?
A: The FI40 Flange Facer can machine flanges from 6 inches (153 mm) to 40 inches (1000 mm) in diameter, making it ideal for a wide range of industrial applications.
Q2: Is the machine suitable for both flat face (FF) and raised face (RF) flanges?
A: Yes, the FI40 is capable of machining flat face (FF), raised face (RF), ring type joint (RTJ), and other groove profiles such as V grooves and weld repairs, all in compliance with ASME standards.
Q3: What are the differences between the pneumatic and electric models?
A: FI40P (Pneumatic) uses a Modec air motor, suitable for explosive environments or sites without power supply.
FI40E (Electric) features a Panasonic servo motor, offering precise speed control and ease of use in well-powered settings.
Q4: Can the FI40 be used in vertical or overhead positions?
A: Yes, thanks to its internally mounted design and modular structure, the FI40 can operate in any orientation, including vertical and overhead setups.
Q5: How long does it take to set up the machine on-site?
A: With its quick-set independent mounting bases and micro-adjustable jaws, setup typically takes 15–30 minutes, depending on the flange condition and operator experience.
