14 Inch Manual Flange Facing Machine - High Precision Portable Flange Facer for On-Site Repair
| MOQ: | 1 |
| Price: | 1350USD-5400USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
FI14M
Document
Shipping Dimensions:
680 × 510 × 250 Mm
Facing Standard:
ASME B16.5
Facing Types:
Smooth Face & Spiral Serrated Finish
Working Weight:
9.0 Kg
Shipping Weight:
29.0 Kg
Highlight:
14 Inch Manual Flange Facing Machine
,14 Inch flange facer machine
,High Precision Manual Flange Facing Machine
Product Description

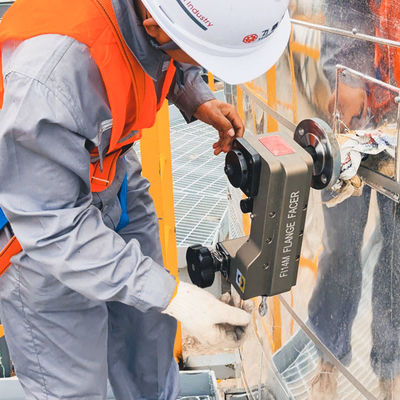

Portable Hand Powered Flange Facing Tool - FI14M
Manual flange facing tool for on-site, power-free flange re-machining. The FI14M is a manual, hand-powered portable flange facing tool designed for quick and precise resurfacing of damaged flange sealing faces. Built for reliability in challenging environments, this compact tool allows technicians to restore flange gasket surfaces to original specifications without relying on external power sources.
Specifications
| Model | FI14M Manual Flange Facing Machine |
| Facing Diameter Range | 1.07" to 14" (27.2-355.6 mm) |
| ID Mounting Range | 1.07" to 10.63" (27.2-270 mm) |
| Drive Type | Manual (no external power required) |
| Feed Speeds | Fine feed: 0.125 mm/rev (0.005 inch/rev) ASME B16.5 standard feed: 0.5 mm/rev (0.02 inch/rev) |
| Minimum Swing Diameter | With knob handle: 22.9" (582 mm) Without knob handle: 19.5" (495 mm) |
| Working Weight | 9.0 kg |
| Shipping Weight | 29.0 kg |
| Shipping Dimensions (L×W×H) | 680 × 510 × 250 mm (Plastic carry case) |
Product Features
- No Power Required - Fully manual operation with no electric, pneumatic, or hydraulic connections needed. Ideal for remote, elevated, or hazardous locations where power access is limited or unavailable.
- Compact & Lightweight - Weighing only 9.0 kg, the FI14M is easy to carry, maneuver, and operate by a single technician. Its ergonomic design makes it perfect for confined spaces and vertical pipelines.
- High-Precision Cutting - Produces smooth or stock finish spiral serrations that comply with ASME B16.5 standards, thanks to a manually rotated swing arm and dual feed settings.
- Quick & Accurate Setup - MT's proprietary internal clamping system ensures fast alignment and mounting in seconds, offering true concentric machining with consistent depth and finish.
- Durable Construction - Made from high-strength, precision-machined materials for industrial-grade performance and long-term reliability in field use.
Applications
- On-site flange repair and resurfacing
- Oil & gas pipelines
- Chemical plants and refineries
- Power generation facilities
- Maintenance in confined or elevated environments
- Ideal for resurfacing raised-face and flat-face flanges
Flange Facer Machine Selection Table
| Model | Facing Diameter Range | ID/OD Mounting Range | Drive Type |
|---|---|---|---|
| FI14M | 1.07" to 14" (27.2-355.6 mm) | 1.07" to 10.63" (27.2-270 mm) | Manual |
| FE12P | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Pneumatic (1.0 kW) |
| FE12E | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Electric Servo motor (1.0 kW) |
| FI26P | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Pneumatic (1.0 kW) |
| FI26E | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Electric Servo motor (1.0 kW) |
| FI40P | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Pneumatic (1.7 kW) |
| FI40E | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Electric Servo motor (1.5 kW) |
| FI60P | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Pneumatic (3.0 kW) |
| FI60E | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Electric Servo motor (3.0 kW) |
| FI80P | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Pneumatic (3.0 kW) |
| FI80E | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Electric Servo motor (3.0 kW) |
Why Choose Portable Hand Powered Flange Facing Tool FI14M?
- Eliminates the need for bulky power equipment
- Reduces labor cost - single-person operation
- Speeds up maintenance with minimal setup time
- Long-lasting cutting tools for multi-material use
- Cost-effective solution for high-accuracy repair
Add the Portable Hand Powered Flange Facing Tool FI14M to your portable machining toolkit and experience a smarter, safer way to recondition flange surfaces. Designed for engineers who need precision in the most demanding environments, this tool redefines simplicity without compromising performance.
