80 Inch Portable Flange Facer High Performance On Site Gasket Repair Tool
| MOQ: | 1 |
| Price: | 15000USD-60000USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
80 Inch Portable Flange Facer
,80 Inch portable flange facing machine
,High Performance Portable Flange Facer

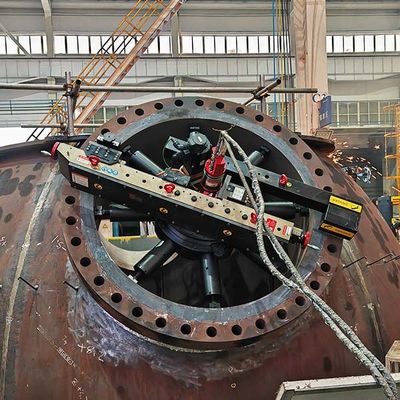

FI80 Flange Facer – Internally Mounted Portable Flange Facing Machine (26–80")
The FI80 Flange Facer is a high-performance, internally mounted tool designed to resurface large-diameter flange sealing faces directly on-site. With a machining capacity from 26.34" to 80" (670–2032 mm) and support for multiple flange types, the FI80 is the ideal solution for industries that demand precision and portability.Engineered with NSK bearings, a “V” linear guide system, and a robust structure, it provides consistent and smooth finishes compliant with ASME B16.5 standards. This versatile flange facer is available in pneumatic (FI80P) and electric servo (FI80E) versions, providing flexibility for power availability in the field.The machine supports the machining of flat face (FF), raised face (RF), RTJ, V-groove, and other profiles. Built for field service, its compact modular design and rugged steel transport case ensure it performs reliably even in remote or extreme environments.
SPECIFICATIONS
| Item | FI80P (Pneumatic) | FI80E (Electric) |
|---|---|---|
| Drive Type | Pneumatic Motor (4.1 Hp / 3.0 kW) | Panasonic Servo Motor (4.1 Hp / 3.0 kW) |
| Air Consumption | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | N/A | 220–240 V, 50/60 Hz |
| Facing Diameter | 670–2032 mm (26.3"–80") | 670–2032 mm (26.3"–80") |
| ID Mounting Range | 790–1900 mm (31.1"–74.8") | 790–1900 mm (31.1"–74.8") |
| Feed Speed | 0.15,0.2,0.24,0.32,0.5,0.69 mm/rev | 0.15,0.2,0.24,0.32,0.5,0.69 mm/rev |
| Rotation Speed | 28 rpm | 0-23 rpm |
| Shipping Weight | 1025 kg | 1075 kg |
| Shipping Dimensions | 2015×800×880 mm | 2015×800×880 mm |
PRODUCT ADVANTAGES
Why Choose the FI80 Flange Facer?
Wide Facing Range
Handles extra-large flanges from 26" to 80" with precision.
Dual Drive Options
Choose between pneumatic or electric servo motor to match job site needs.
Smooth Finishing
Delivers a gramophone-quality surface for gasket sealing.
Fast On-Site Setup
Internal mounting with quick-adjust base for rapid alignment.
Built to Last
Durable components, industrial-grade housing, and waterproof packaging.
APPLICATION INDUSTRIES
- Oil & Gas Pipelines & Valve Repair
- Chemical & Petrochemical Facilities
- Power Generation (Nuclear, Thermal, Hydro)
- Offshore Oil Platforms
- Industrial Maintenance & Repair (MRO)
FLANGE FACER MACHINE SELECTION TABLE
|
Model |
Facing Diameter Range |
ID/OD Mounting Range |
Drive Type |
|
FI14M |
1.07" to 14" (27.2–355.6 mm) |
1.07" to 10.63" (27.2–270 mm) |
Manual |
|
FE12P |
0–12" (0–305 mm) |
2–17.7" (50–450 mm) |
Pneumatic (1.0 kW) |
|
FE12E |
0–12" (0–305 mm) |
2–17.7" (50–450 mm) |
Electric Servo motor (1.0 kW) |
|
FI26P |
4.72–27.56" (120–700 mm) |
3.78–28.35" (96–720 mm) |
Pneumatic (1.0 kW) |
|
FI26E |
4.72–27.56" (120–700 mm) |
3.78–28.35" (96–720 mm) |
Electric Servo motor (1.0 kW) |
|
FI40P |
6–40" (153–1000 mm) |
5.7–35.8" (145–910 mm) |
Pneumatic (1.7 kW) |
|
FI40E |
6–40" (153–1000 mm) |
5.7–35.8" (145–910 mm) |
Electric Servo motor (1.5 kW) |
|
FI60P |
12.6–59" (320–1500 mm) |
11.4–57" (290–1450 mm) |
Pneumatic (3.0 kW) |
|
FI60E |
12.6–59" (320–1500 mm) |
11.4–57" (290–1450 mm) |
Electric Servo motor (3.0 kW) |
|
FI80P |
26.34–80" (670–2032 mm) |
31.1–74.8" (790–1900 mm) |
Pneumatic (3.0 kW) |
|
FI80E |
26.34–80" (670–2032 mm) |
31.1–74.8" (790–1900 mm) |
Electric Servo motor (3.0 kW) |
Frequently Asked Questions (FAQ) – FI40 Flange Facer
Q1: What flange sizes does the FI80 flange facer support?
A: It is designed for flanges ranging from 26.34 inches to 80 inches, suitable for large-scale industrial maintenance.
Q2: Can this tool be used on RTJ and special groove flanges?
A: Yes, the FI80 machines RTJ, V-grooves, tongue & groove, and lens ring flanges with high precision.
Q3: Is the FI80 flange facer suitable for both vertical and horizontal use?
A: Absolutely. Its internal mounting design allows for use in any orientation, including upside-down positioning.
Q4: What is the difference between FI80P and FI80E?
A: FI80P uses an air motor, ideal for explosion-proof zones; FI80E uses an electric servo motor, best for controlled environments.
Q5: How long does setup take in the field?
A: Typically 30–45 minutes, thanks to a one-size mounting base and quick-adjust alignment jaws.
