High Accuracy 3"–8" Pipe Cutting and Beveling Machine with Cold Cutting Technology and Steel Body
| MOQ: | 1 |
| Price: | 1400USD-5200USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
OD230
Document
Drive Type:
Metabo Electric Motor Or Pneumatic Motor Or Hydraulic Motor
Working Range (OD):
80 –230 Mm (3"– 8")
Material:
Steel Body And Aluminum Body
Cutting Method:
Cold Cutting
Model Variants:
18 Models For OD 18–1230 Mm
Highlight:
5" Pipe Cutting And Beveling Machine
,5" pipe cold cutting machine
,High Accuracy Pipe Cutting And Beveling Machine
Product Description
High Accuracy Pipe Cutting And Beveling Machine 3"– 8" With Steel Body

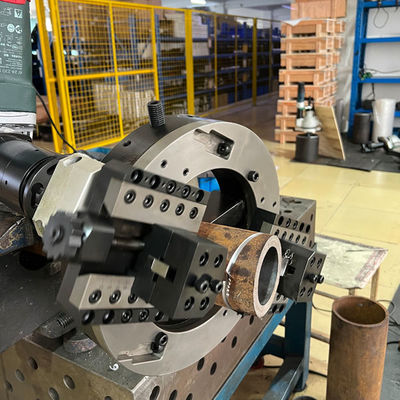

OD230 Portable Pipe Cutting and Beveling Machine Cold Cutting Clamshell Design
The Pipe Cutting and Beveling Machine is engineered to deliver dependable cold cutting and accurate beveling for both field operations and workshop use. Built with a split-frame clamshell design, the OD series allows quick mounting on pipelines in service, ensuring operational stability and operator safety. Its lightweight yet durable construction combines portability with strong cutting capacity, enabling efficient machining without excess bulk.
With a machining range from 0.71" to 48.43" (18-1230 mm) in outer diameter, this equipment is a versatile solution for industries such as oil and gas, power generation, shipbuilding, and chemical processing. Available in pneumatic, hydraulic, and electric drive options, it adapts easily to diverse job-site conditions. By replacing flame cutting with cold cutting technology, it eliminates heat-affected zones and prevents pipe distortion, ensuring precise weld joints and long-term reliability. Offering multiple tooling configurations for V and J bevels, as well as facing, boring, and chamfering, the machine provides flexible, safe, and consistent performance for critical pipeline preparation tasks.
Specifications
| Item | ODM230 (Electric) | ODP230 (Pneumatic) | ODH230 (Hydraulic) |
|---|---|---|---|
| Drive Type | Metabo Electric Motor | Pneumatic Motor | Hydraulic Motor |
| Power | 3.22 Hp / 2.4 Kw | 3.75 Hp / 2.76 Kw | 10 Hp / 7.5 Kw |
| Air Consumption | N/A | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | 220-240 V, 50/60 Hz | N/A | 380 V, 50/60 Hz |
| Working Range (OD) | 80-230 mm (3"-8") | 80-230 mm (3"-8") | 80-230 mm (3"-8") |
| Wall Thickness (Standard) | ≤30 mm | ≤30 mm | ≤30 mm |
| Wall Thickness (Heavy Wall) | 200 mm | 200 mm | 200 mm |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev | 0.083 mm/rev |
Product Advantages
Why Choose the OD230 Pipe Cutting and Beveling Machine?
- Cold Cutting for Precision Welds: The OD230 adopts a cold cutting process that eliminates thermal distortion and prevents material hardening, ensuring clean and accurate weld joints every time.
- Versatility Across Materials: Engineered to handle carbon steel, stainless steel, and alloy steel pipes, making it suitable for diverse industrial applications.
- Multiple Tooling Options: Supports V and J bevels, facing, boring, and chamfering with interchangeable tool bits, giving operators maximum flexibility.
- Wide Cutting Range: Eighteen standard models cover pipe sizes from 0.71" to 48.43" (18-1230 mm), meeting the requirements of both small and large diameter projects.
- Flexible Drive Choices: Available with pneumatic, hydraulic, or electric drives to match different on-site working conditions and customer preferences.
- Strong Yet Lightweight Body: Choose between an aluminum body for portability or a steel body for maximum durability and extended service life.
- Expandable with Accessories: A variety of accessories can be added to enhance performance and extend the machine's cutting and beveling capabilities.
- Easy Clamshell Mounting: The split-frame clamshell design allows the machine to separate into two halves, enabling quick installation on in-service pipelines without disassembly.
Model Designation
Pipe Cutting and Beveling Machine Selection Table
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
|---|---|---|---|
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
| OD-508 | 355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |
Application Industries
- Oil & Gas Pipelines - Safe cold cutting for high-pressure pipelines and refinery shutdowns.
- Offshore Engineering - Reliable for subsea and platform maintenance where sparks and heat are restricted.
- Power Plants - Ensures precision weld preparation during scheduled outages and repairs.
- Shipbuilding - Ideal for confined spaces and high-strength alloy pipe beveling.
- Petrochemical Plants - Maintains pipeline integrity with distortion-free cutting and beveling.
Compact, portable, and accurate, the Pipe Cutting and Beveling Machine is the trusted solution for both workshop and field applications.
Frequently Asked Questions (FAQ) - OD Pipe Cutting and Beveling Machine
Q1: What is the difference between the steel body and aluminum body clamshell design?
A: The steel body version offers higher strength and longer service life, suitable for heavy-duty cutting of thick-walled alloy pipes. The aluminum body version is lightweight and easier to handle, especially for high-altitude or confined space operations.
Q2: How do I choose between pneumatic, electric, and hydraulic drive options?
A: Pneumatic drives are explosion-proof and suitable for hazardous environments, but they require a reliable compressed air supply. Electric drives, such as Metabo motors, are versatile and widely used for workshop and plant maintenance, offering high torque output and flexible operation. Hydraulic drives deliver the most powerful performance and are ideal for heavy-duty cutting or long-duration operations. However, they require an external hydraulic power station, which increases cost and makes on-site transport less convenient. Large-diameter models are typically equipped with hydraulic systems.
Q3: Can the machine perform different bevel angles?
A: Yes. By changing tool bits and adjusting feed settings, the machine can produce V and J bevels at various angles, as well as perform facing, boring, and chamfering operations.
