High Precision 12"–18" Hydraulic Drive Pipe Cutting and Beveling Machine for Industrial Pipes
| MOQ: | 1 |
| Price: | 1900USD-5700USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
18" Hydraulic Pipe Beveling Machine
,18" cold cutting pipe machine
,High Precision Hydraulic Pipe Beveling Machine

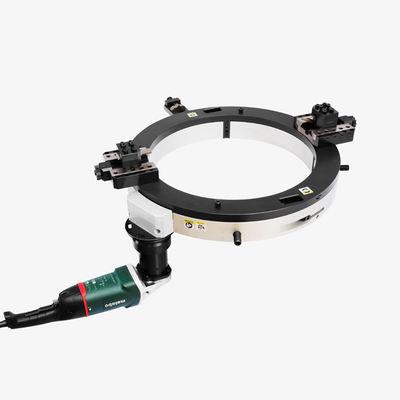

The OD457 Pipe Cutting and Beveling Machine delivers precise cold cutting and beveling for pipelines with a 12 to 18 inch OD range. Its robust clamshell design allows direct mounting on operating pipelines, enabling fast setup and stable machining without heat-affected zones.
Widely used in oil & gas, chemical plants, power generation, and shipbuilding, the OD457 ensures high weld accuracy and pipeline integrity. Compatible with pneumatic, hydraulic, or electric drives, it adapts to various field and workshop conditions.
By preventing sparks, heat damage, and material distortion, the OD457 provides a safer and more efficient alternative to traditional flame cutting. Its compact, portable design allows operators to perform accurate cutting and beveling even in confined or elevated work areas. Reliable, efficient, and easy to operate, the OD457 is ideal for pipeline maintenance, shutdowns, and on-site fabrication projects.
| Item | ODM457 (Electric) | ODP457 (Pneumatic) | ODH457 (Hydraulic) |
|---|---|---|---|
| Drive Type | Metabo Electric Motor | Pneumatic Motor | Hydraulic Motor |
| Power | 3.22 Hp / 2.4 Kw | 3.75 Hp / 2.76 Kw | 10 Hp / 7.5 Kw |
| Air Consumption | N/A | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | 220-240 V, 50/60 Hz | N/A | 380 V, 50/60 Hz |
| Working Range (OD) | 300-457 mm (12"-18") | 300-457 mm (12"-18") | 300-457 mm (12"-18") |
| Wall Thickness (Standard) | ≤30 mm | ≤30 mm | ≤30 mm |
| Wall Thickness (Heavy Wall) | 200 mm | 200 mm | 200 mm |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev | 0.083 mm/rev |
- High-Precision Cold Cutting: Eliminates heat-affected zones and material distortion, ensuring smooth and accurate welds for superior pipeline integrity.
- Versatile Cutting and Beveling: Supports straight cuts, V and J bevels, and flange facing, meeting diverse industrial pipeline requirements.
- Portable and Easy Mounting: Clamshell design allows direct installation on operating pipelines for fast setup and stable machining, ideal for field maintenance and on-site fabrication.
- Flexible Drive Options: Available with pneumatic, hydraulic, or electric drives, adapting to various working conditions and enhancing operator convenience.
- Safe and Efficient Operation: Prevents sparks, heat damage, and material deformation, enabling reliable and efficient work even in confined or elevated areas.
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
|---|---|---|---|
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
| OD-508 | 355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |
Clamshell pipe cutting and beveling machines are widely used in the boiler industry for precise pipe preparation. Their split-frame design allows easy mounting on large-diameter boiler pipes, enabling accurate cold cutting and beveling without heat damage. This ensures high-quality welds, maintains pipe integrity, and reduces downtime during maintenance or installation. Compact and portable, clamshell machines streamline boiler construction and repair, improving efficiency and safety in confined or elevated work areas.
