Portable Pipe Cutting and Beveling Machine with 0.71"–3.54" Working Range for High Efficiency Cold Cutting
| MOQ: | 1 |
| Price: | 1150USD-3450USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
0.71" Pipe Cutting And Beveling Machine
,0.71" steel beveling machine
,Portable Pipe Cutting And Beveling Machine
The Pipe Cutting and Beveling Machine is engineered for precision cold cutting and high-efficiency beveling of pipes in on-site and workshop environments. Built with portability in mind, the OD series split-frame clamshell design allows operators to mount the machine quickly, even on in-service pipelines. Its compact construction ensures powerful cutting capability without compromising ease of handling.
The machine is suitable for pipes ranging from 0.71" to 3.54" OD (18-90 mm), delivering versatile performance for industries such as oil & gas, power generation, chemical processing, and shipbuilding. Operators can choose between pneumatic, hydraulic, or electric drives to suit varying site conditions. By eliminating the thermal impact of flame cutting, this cold-cutting solution guarantees high-quality weld preparations, extending equipment life and ensuring safety in demanding environments. With multiple tooling options for V and J bevels, facing, boring, and chamfering, the Pipe Cutting and Beveling Machine is the reliable choice for critical pipe joint preparation.

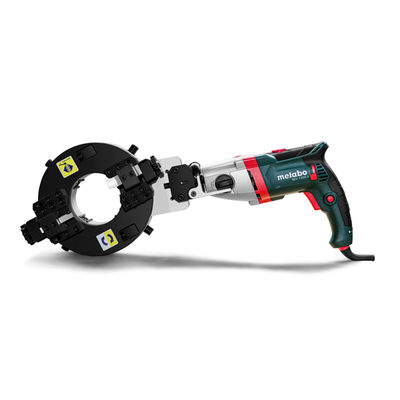

| Item | AODM89 (Electric) | AODP89 (Pneumatic) |
|---|---|---|
| Drive Type | Metabo Electric Motor (1.74 Hp / 1.3 Kw) | Pneumatic Motor (1.34 Hp / 1.0 Kw) |
| Air Consumption | N/A | 1.3 m³/min @ 0.6 MPa |
| Voltage | 220-240 V, 50/60 Hz | N/A |
| Working Range (OD) | 18-90 mm (0.71"-3.54") | 18-90 mm (0.71"-3.54") |
| Wall Thickness | ≤16 mm (0.63") | ≤16 mm (0.63") |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev |
| Rotation Speed | 60-80 rpm | 45-60 rpm |
| Shipping Weight | 37 kg | 33 kg |
| Shipping Dimensions | 780×530×280 mm | 680×510×250 mm |
- Cold Cutting for Precision Welds: The OD89 adopts a cold cutting process that eliminates thermal distortion and prevents material hardening, ensuring clean and accurate weld joints every time.
- Versatility Across Materials: Engineered to handle carbon steel, stainless steel, and alloy steel pipes, making it suitable for diverse industrial applications.
- Multiple Tooling Options: Supports V and J bevels, facing, boring, and chamfering with interchangeable tool bits, giving operators maximum flexibility.
- Wide Cutting Range: Eighteen standard models cover pipe sizes from 0.71" to 3.54" (18-90 mm), meeting the requirements of both small and large diameter projects.
- Flexible Drive Choices: Available with pneumatic, hydraulic, or electric drives to match different on-site working conditions and customer preferences.
- Strong Yet Lightweight Body: Choose between an aluminum body for portability or a steel body for maximum durability and extended service life.
- Expandable with Accessories: A variety of accessories can be added to enhance performance and extend the machine's cutting and beveling capabilities.
- Easy Clamshell Mounting: The split-frame clamshell design allows the machine to separate into two halves, enabling quick installation on in-service pipelines without disassembly.
- Robust & Portable: Compact design in a waterproof steel crate ensures easy transportation and jobsite readiness.
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
|---|---|---|---|
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
| OD-508 | 355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |
The Pipe Cutting and Beveling Machine is widely applied in oil & gas pipelines, offshore engineering, power plants, shipbuilding, and chemical processing facilities. It addresses the challenges of on-site machining by enabling safe and efficient cold cutting without generating sparks, heat, or deformation. In industries where pipeline integrity and precision weld preparation are critical, this equipment provides a reliable solution. Whether used during plant shutdowns, offshore repairs, or workshop fabrication, the machine ensures high productivity and consistent weld quality. Its portability makes it ideal for field maintenance, high-altitude work, and confined spaces, helping operators complete complex cutting and beveling tasks with ease.
