8-14 Inch Pipe Cutting and Beveling Machine with Durable Clamshell Construction and Multiple Drive Options
| MOQ: | 1 |
| Price: | 1600USD-4800USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
14 Inch Pipe Bevel Cutting Machine
,8 Inch Pipe Bevel Cutting Machine
,14 Inch cutting and beveling machine

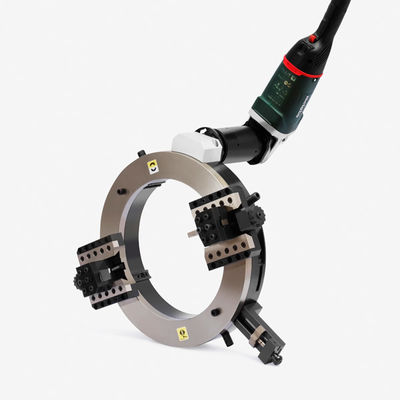

The OD377 Pipe Cutting and Beveling Machine delivers precision cold cutting and beveling for pipelines within the 8"-14" OD range. Featuring durable clamshell construction, it mounts directly on operating pipelines for quick setup and stable machining without creating heat-affected zones.
This model is trusted in oil & gas facilities, chemical and petrochemical plants, power generation stations, and shipbuilding projects where weld accuracy and pipeline integrity are essential. With flexible pneumatic, hydraulic, or electric drive systems, the OD377 adapts to diverse working conditions for field maintenance or workshop fabrication.
By eliminating sparks, heat damage, and material distortion, the OD377 offers a safer, more efficient alternative to traditional flame cutting. Its portable, compact design enables accurate cutting and beveling in confined areas or elevated worksites.
| Item | ODM377 (Electric) | ODP377 (Pneumatic) | ODH377 (Hydraulic) |
|---|---|---|---|
| Drive Type | Metabo Electric Motor | Pneumatic Motor | Hydraulic Motor |
| Power | 3.22 Hp / 2.4 Kw | 3.75 Hp / 2.76 Kw | 10 Hp / 7.5 Kw |
| Air Consumption | N/A | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | 220-240 V, 50/60 Hz | N/A | 380 V, 50/60 Hz |
| Working Range (OD) | 200-377 mm (8"-14") | 200-377 mm (8"-14") | 200-377 mm (8"-14") |
| Wall Thickness (Standard) | ≤30 mm | ≤30 mm | ≤30 mm |
| Wall Thickness (Heavy Wall) | 200 mm | 200 mm | 200 mm |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev | 0.083 mm/rev |
- Cold Cutting for Precision Welds: Eliminates thermal distortion and prevents material hardening for clean, accurate weld joints
- High-Precision Cold Cutting: Advanced cold cutting technology prevents heat distortion and material hardening for smooth weld preparation
- Wide Material Compatibility: Engineered for carbon steel, stainless steel, and alloy steel pipes across multiple industries
- Versatile Tooling Options: Supports V and J bevels, facing, boring, and chamfering with interchangeable tool bits
- Broad Pipe Size Range: Multiple models cover small to large-diameter pipes for diverse project demands
- Flexible Drive Solutions: Pneumatic, hydraulic, or electric drives adapt to varying on-site conditions
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
|---|---|---|---|
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
| OD-508 | 355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |
In the oil and gas industry, pipeline integrity is critical for safe, continuous operations. Pipe cutting and beveling machines ensure precise cold cutting and accurate bevel preparation for high-pressure pipelines, offshore platforms, and refinery shutdowns.
Unlike flame cutting, the cold cutting process eliminates sparks, heat damage, and distortion, making it safe for hazardous environments. The portable clamshell design allows on-site installation without disassembling pipelines, reducing downtime and maintenance costs.
Whether for new pipeline construction, emergency repair, or scheduled shutdown projects, these machines deliver efficiency, reliability, and weld quality that meet strict oilfield standards.
