FI14M Manual Flange Facer 27.2mm to 355.6mm Portable ID Mounted Resurfacing Tool
| MOQ: | 1 |
| Price: | 1350USD-5400USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
FI14M
Document
Feed Speeds:
Fine Feed: 0.125 Mm/rev (0.005 Inch/rev)
Working Weight:
9.0 Kg (19.8 Lbs)
Shipping Weight:
29.0 Kg (64 Lbs)
Highlight:
Manual Flange Facer portable tool
,Flange resurfacing tool ID mounted
,FI14M flange facer 27.2mm-355.6mm
Product Description
FI14M Manual Flange Facer 27.2mm to 355.6mm Portable ID Mounted Resurfacing Tool

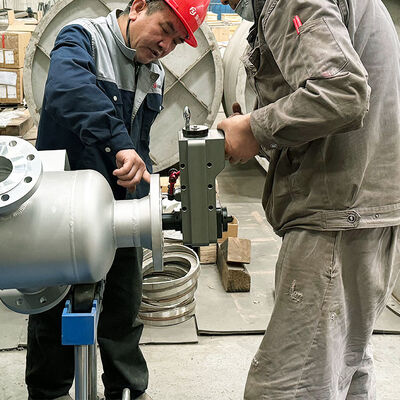

The FI14M Manual Flange Facer is a high-performance, hand-driven solution for immediate on-site flange maintenance. Designed specifically for environments where electricity or compressed air is inaccessible or prohibited, this tool facilitates the restoration of damaged, rusted, or leaking gasket seats. Covering a broad range from 1.07" to 14" (27.2 - 355.6 mm), it brings machine-shop accuracy directly to the job site via a smooth, hand-cranked mechanical feed.
SPECIFICATIONS
| Model | FI14M Manual Flange Facing Machine |
|---|---|
| Facing Diameter Range | 1.07" to 14" (27.2-355.6 mm) |
| ID Mounting Range | 1.07" to 10.63" (27.2-270 mm) |
| Drive Type | Manual (no external power required) |
| Feed Speeds | Fine feed: 0.125 mm/rev (0.005 inch/rev) ASME B16.5 standard feed: 0.5 mm/rev (0.02 inch/rev) |
| Minimum Swing Diameter | With knob handle: 22.9" (582 mm) Without knob handle: 19.5" (495 mm) |
| Working Weight | 9.0 kg |
| Shipping Weight | 29.0 kg |
| Shipping Dimensions (L*W*H) | 680 * 510 * 250 mm (Plastic carry case) |
KEY FEATURES
Zero-Power Versatility:
Fully mechanical operation makes this tool perfect for no-spark zones. It eliminates the need for hot-work permits, air compressors, or heavy power cables in ATEX-restricted areas.
Standard-Compliant Surface Finish:
The precision lead screw generates the exact spiral serrated (phonographic) pattern required by ASME B16.5 standards to ensure a leak-proof seal.
Rapid Expansion Mounting:
Utilizing a high-stability bore-clamping mandrel, the FI14M centers itself within the flange ID instantly, reducing setup time to less than five minutes.
High-Endurance Build:
Forged from aircraft-grade alloys and CNC-machined steel, the unit is built to withstand corrosive salt spray and the rigorous demands of heavy industrial use.
Professional Transport Case:
Delivered in a custom-fitted, shock-absorbent transit box, ensuring all mounting jaws and tools stay organized for high-speed field deployment.
Why Choose the FI14M?
Refineries & Gas Plants:
Instant repair of heat exchanger nozzles and manway sealing faces.
Offshore & Maritime:
On-board maintenance of seawater cooling systems and ballast piping.
Energy Infrastructure:
Precision refacing of high-pressure steam valves during plant outages.
Remote Pipelines:
Critical restoration of valve seat faces in desert or sub-zero pumping stations.
FLANGE FACER MACHINE SELECTION TABLE
| Model | Facing Diameter Range | ID/OD Mounting Range | Drive Type |
|---|---|---|---|
| FI14M | 1.07" to 14" (27.2-355.6 mm) | 1.07" to 10.63" (27.2-270 mm) | Manual |
| FE12P | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Pneumatic (1.0 kW) |
| FE12E | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Electric Servo motor (1.0 kW) |
| FI26P | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Pneumatic (1.0 kW) |
| FI26E | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Electric Servo motor (1.0 kW) |
| FI40P | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Pneumatic (1.7 kW) |
| FI40E | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Electric Servo motor (1.5 kW) |
| FI60P | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Pneumatic (3.0 kW) |
| FI60E | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Electric Servo motor (3.0 kW) |
| FI80P | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Pneumatic (3.0 kW) |
| FI80E | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Electric Servo motor (3.0 kW) |
