14 Inches Manual Flange Facer Portable Flange Facing Machine for In-Situ Resurfacing
| MOQ: | 1 |
| Price: | 1350USD-5400USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |

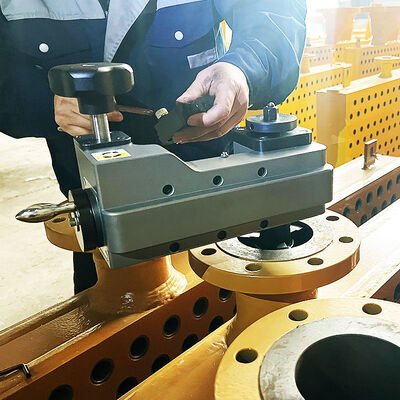

The FI14M Manual Flange Facer is a versatile, hand-powered machining tool designed for high-accuracy gasket face restoration in the field. With an expansive working range from 1.07" to 14" (27.2 mm – 355.6 mm), it bridges the gap between small-bore tubing and medium-sized industrial flanges.
Engineered for "In-Situ" maintenance, the FI14M is the ultimate solution for environments where compressed air or electricity is restricted. It allows technicians to repair damaged, pitted, or leaking sealing surfaces anywhere—from deep-sea offshore platforms to remote high-pressure pipeline stations—ensuring a workshop-quality finish with zero spark risk.
| Model: | FI14M Manual Flange Facing Machine |
| Facing Diameter Range | 1.07" to 14" (27.2–355.6 mm) |
| ID Mounting Range | 1.07" to 10.63" (27.2–270 mm) |
| Drive Type | Manual (no external power required) |
| Feed Speeds |
Fine feed: 0.125 mm/rev (0.005 inch/rev) ASME B16.5 standard feed: 0.5 mm/rev (0.02 inch/rev) |
| Minimum Swing Diameter |
With knob handle: 22.9" (582 mm) Without knob handle: 19.5" (495 mm) |
| Working Weight | 9.0 kg |
| Shipping Weight | 29.0 kg |
| Shipping Dimensions (L×W×H) | 680 × 510 × 250 mm (Plastic carry case) |
Single-tool capability for diameters from 27.2mm to 355.6mm, making it an all-in-one solution for diverse piping schedules.
100% manual operation eliminates the need for hot-work permits in explosive or ATEX-classified zones. No cables, no hoses, just precision mechanical drive.
The synchronized mechanical feed produces a consistent phonographic (spiral serrated) finish, critical for high-pressure gasket sealing and leak prevention.
Features a high-stability self-centering mandrel system. Technicians can achieve precise concentric alignment in minutes, even in overhead or vertical positions.
Constructed from high-strength, lightweight alloys. The entire kit is housed in a rugged, impact-resistant transit case for effortless site-to-site transport.
Restore flange faces in-place. Avoid the massive expense and labor of cutting out, replacing, and re-welding damaged flanges.
The precision-engineered lead screw and tool slide ensure chatter-free machining across stainless steel, carbon steel, and alloy surfaces.
Designed for simplicity and ease of use. Its lightweight footprint allows for high-accuracy repairs in confined spaces where larger machines cannot fit.
With no motors to burn out or seals to leak, the FI14M offers unmatched reliability and a near-zero cost of ownership over its lifetime.
Restore flange faces in-place. Avoid the massive expense and labor of cutting out, replacing, and re-welding damaged flanges.
The precision-engineered lead screw and tool slide ensure chatter-free machining across stainless steel, carbon steel, and alloy surfaces.
Designed for simplicity and ease of use. Its lightweight footprint allows for high-accuracy repairs in confined spaces where larger machines cannot fit.
With no motors to burn out or seals to leak, the FI14M offers unmatched reliability and a near-zero cost of ownership over its lifetime.
| Model | Facing Diameter Range | ID/OD Mounting Range | Drive Type |
|---|---|---|---|
| FI14M | 1.07" to 14" (27.2–355.6 mm) | 1.07" to 10.63" (27.2–270 mm) | Manual |
| FE12P | 0–12" (0–305 mm) | 2–17.7" (50–450 mm) | Pneumatic (1.0 kW) |
| FE12E | 0–12" (0–305 mm) | 2–17.7" (50–450 mm) | Electric Servo motor (1.0 kW) |
| FI26P | 4.72–27.56" (120–700 mm) | 3.78–28.35" (96–720 mm) | Pneumatic (1.0 kW) |
| FI26E | 4.72–27.56" (120–700 mm) | 3.78–28.35" (96–720 mm) | Electric Servo motor (1.0 kW) |
| FI40P | 6–40" (153–1000 mm) | 5.7–35.8" (145–910 mm) | Pneumatic (1.7 kW) |
| FI40E | 6–40" (153–1000 mm) | 5.7–35.8" (145–910 mm) | Electric Servo motor (1.5 kW) |
| FI60P | 12.6–59" (320–1500 mm) | 11.4–57" (290–1450 mm) | Pneumatic (3.0 kW) |
| FI60E | 12.6–59" (320–1500 mm) | 11.4–57" (290–1450 mm) | Electric Servo motor (3.0 kW) |
| FI80P | 26.34–80" (670–2032 mm) | 31.1–74.8" (790–1900 mm) | Pneumatic (3.0 kW) |
| FI80E | 26.34–80" (670–2032 mm) | 31.1–74.8" (790–1900 mm) | Electric Servo motor (3.0 kW) |
