14 Inches Manual Flange Facer ID Mounted Portable Flange Resurfacing Tool
| MOQ: | 1 |
| Price: | 1350USD-5400USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
FI14M
Document
Feed Speeds:
Fine Feed: 0.125 Mm/rev (0.005 Inch/rev)
Working Weight:
9.0 Kg (19.8 Lbs)
Shipping Weight:
29.0 Kg (64 Lbs)
Highlight:
14 inch manual flange facer
,ID mounted flange resurfacing tool
,portable flange facing machine
Product Description

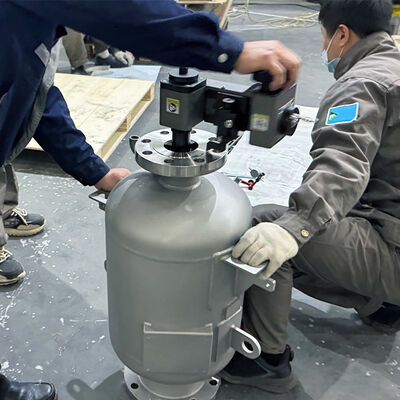

FI14M Manual Flange Facing Machine - Portable Flange Resurfacing Tool
The FI14M Manual Flange Facer is a heavy-duty, field-ready tool engineered for quick and accurate flange resurfacing. Built for technicians who need a dependable solution in locations where power is limited or unavailable, this compact machine restores worn, pitted, or corroded flange gasket faces to a clean, uniform sealing surface. Its completely manual drive system allows operators to perform precision machining work anytime, anywhere—whether on-site at a plant, out in the field, or inside a workshop.
Specifications
| Model | FI14M Manual Flange Facing Machine |
| Facing Diameter Range | 1.07" to 14" (27.2-355.6 mm) |
| ID Mounting Range | 1.07" to 10.63" (27.2-270 mm) |
| Drive Type | Manual (no external power required) |
| Feed Speeds | Fine feed: 0.125 mm/rev (0.005 inch/rev) ASME B16.5 standard feed: 0.5 mm/rev (0.02 inch/rev) |
| Minimum Swing Diameter | With knob handle: 22.9" (582 mm) Without knob handle: 19.5" (495 mm) |
| Working Weight | 9.0 kg |
| Shipping Weight | 29.0 kg |
| Shipping Dimensions (L×W×H) | 680 × 510 × 250 mm (Plastic carry case) |
Key Features
- Power-Free Operation: Completely self-sufficient, enabling safe and reliable flange machining in remote sites, offshore platforms, shutdown areas, or restricted zones where powered equipment is not allowed.
- Precision Spiral Serration Finish: Smooth mechanical swing arm delivers consistent phonographic serrations that meet ASME B16.5 surface finish requirements, ensuring optimal gasket sealing performance.
- Rapid, Accurate Set-Up: MT's fast-locking internal clamping system centers securely inside the flange bore, allowing operators to begin machining within minutes.
- Rugged, Long-Life Construction: Manufactured from high-strength alloys and CNC-machined components, designed to withstand harsh industrial environments and long-term repeated use.
- Portable Service Kit: Packaged in an organized, shock-resistant case, all parts and tools are stored neatly for convenient transport to any job site.
- Ready to Use Immediately: Delivered fully assembled with all accessories needed for flange facing—no additional tools required.
Product Advantages
- Instant On-Site Flange Restoration: Reduce costly downtime by machining the flange in place rather than removing or replacing it.
- Lightweight & Easy to Handle: Compact footprint and low weight make it ideal for tight spaces, overhead positions, and vertical flanges.
- Stable Cutting Performance: Provides smooth and consistent cutting action across various metals used in pipelines, processing plants, shipyards, chemical facilities, and power stations.
- Lower Maintenance Costs: Extend equipment life and improve sealing reliability without the expense of purchasing new flanges or outsourcing repair work.
Why Choose the FI14M?
The FI14M Manual Flange Facing Machine is engineered for professionals who demand accuracy, portability, and reliability. Built for challenging on-site conditions and backed by MT's engineering quality, this manual flange resurfacing tool ensures every flange sealing face meets industry standards—every single time.
Flange Facer Machine Selection Table
| Model | Facing Diameter Range | ID/OD Mounting Range | Drive Type |
|---|---|---|---|
| FI14M | 1.07" to 14" (27.2-355.6 mm) | 1.07" to 10.63" (27.2-270 mm) | Manual |
| FE12P | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Pneumatic (1.0 kW) |
| FE12E | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Electric Servo motor (1.0 kW) |
| FI26P | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Pneumatic (1.0 kW) |
| FI26E | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Electric Servo motor (1.0 kW) |
| FI40P | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Pneumatic (1.7 kW) |
| FI40E | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Electric Servo motor (1.5 kW) |
| FI60P | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Pneumatic (3.0 kW) |
| FI60E | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Electric Servo motor (3.0 kW) |
| FI80P | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Pneumatic (3.0 kW) |
| FI80E | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Electric Servo motor (3.0 kW) |
