FI14M Portable Flange Facer - ASME B16.5 Compliant Manual Flange Facing Machine with 1.07" to 14" Facing Diameter
| MOQ: | 1 |
| Price: | 1350USD-5400USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
FI14M
Document
Shipping Dimensions:
680 × 510 × 250 Mm
Facing Standard:
ASME B16.5
Facing Types:
Smooth Face & Spiral Serrated Finish
Working Weight:
9.0 Kg
Shipping Weight:
29.0 Kg
Highlight:
portable flange facer hand-operated
,flange resurfacing tool portable
,hand-operated flange resurfacing solution
Product Description

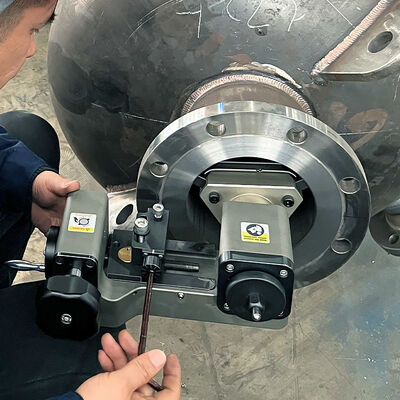

FI14M Portable Hand-Operated Flange Resurfacing Solution
The FI14M Manual Flange Facing Machine is a compact, fully hand-operated flange resurfacing tool designed for fast and accurate gasket face restoration in locations where power sources are unavailable or restricted. Engineered for reliability in the field, this portable flange facer allows technicians to restore damaged, corroded, or uneven flange sealing surfaces directly on-site—without electricity, air, or hydraulics.
Ideal for maintenance crews working in oil and gas facilities, power plants, shipyards, chemical processing units, and remote pipeline sites, the FI14M delivers consistent machining quality while minimizing downtime and operational costs.
Specifications
| Model | FI14M Manual Flange Facing Machine |
| Facing Diameter Range | 1.07" to 14" (27.2-355.6 mm) |
| ID Mounting Range | 1.07" to 10.63" (27.2-270 mm) |
| Drive Type | Manual (no external power required) |
| Feed Speeds | Fine feed: 0.125 mm/rev (0.005 inch/rev) ASME B16.5 standard feed: 0.5 mm/rev (0.02 inch/rev) |
| Minimum Swing Diameter | With knob handle: 22.9" (582 mm) Without knob handle: 19.5" (495 mm) |
| Working Weight | 9.0 kg |
| Shipping Weight | 29.0 kg |
| Shipping Dimensions (L×W×H) | 680 × 510 × 250 mm (Plastic carry case) |
Product Features
-
Fully Manual, Power-Independent Operation
The FI14M is purpose-built for environments where powered equipment cannot be used, making it a dependable solution for offshore platforms, hazardous areas, and emergency repair situations. -
ASME-Compliant Surface Finish
The precision mechanical feed system produces uniform spiral serrations that meet ASME B16.5 flange surface finish requirements, ensuring reliable gasket sealing and leak prevention. -
Quick Internal Mounting System
An efficient internal clamping mechanism ensures fast centering and rigid fixation inside the flange bore, significantly reducing setup time and improving machining accuracy. -
Durable Industrial Construction
Manufactured using high-strength alloys and precision CNC machining, the FI14M is designed to withstand harsh working conditions and repeated long-term use. -
Compact & Portable Tool Kit
All components are neatly organized in a rugged plastic case, allowing easy transportation between job sites and secure storage during shutdowns or maintenance campaigns.
Applications
- On-site flange repair and resurfacing
- Oil & gas pipelines
- Chemical plants and refineries
- Power generation facilities
- Maintenance in confined or elevated environments
- Ideal for resurfacing raised-face, flat-face flanges
Flange Facer Machine Selection Table
| Model | Facing Diameter Range | ID/OD Mounting Range | Drive Type |
|---|---|---|---|
| FI14M | 1.07" to 14" (27.2-355.6 mm) | 1.07" to 10.63" (27.2-270 mm) | Manual |
| FE12P | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Pneumatic (1.0 kW) |
| FE12E | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Electric Servo motor (1.0 kW) |
| FI26P | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Pneumatic (1.0 kW) |
| FI26E | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Electric Servo motor (1.0 kW) |
| FI40P | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Pneumatic (1.7 kW) |
| FI40E | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Electric Servo motor (1.5 kW) |
| FI60P | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Pneumatic (3.0 kW) |
| FI60E | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Electric Servo motor (3.0 kW) |
| FI80P | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Pneumatic (3.0 kW) |
| FI80E | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Electric Servo motor (3.0 kW) |
Why Choose Portable Hand Powered Flange Facing Tool FI14M?
The FI14M Manual Flange Facing Machine is engineered for professionals who need a reliable, portable, and accurate flange resurfacing solution without reliance on external power. Whether performing routine maintenance or emergency repairs, this hand-operated flange facer delivers repeatable results that meet industry standards—anytime and anywhere.
Backed by MT's manufacturing expertise, the FI14M is a trusted choice for field service teams seeking durability, precision, and total operational independence.
