8-14 Inch Pipe Cutting and Beveling Machine with Cold Cutting Technology and Multiple Drive Configurations
| MOQ: | 1 |
| Price: | 1600USD-4800USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
8-14 Inch Pipe Cutting and Beveling Machine
,Cold Cutting Technology Pipe Beveling Machine
,Multiple Drive Configurations Cold Cutting Clamshell Machine
The OD377 Pipe Cutting and Beveling Machine is a professional-grade cold cutting solution designed for pipelines with an outer diameter range of 8 to 14 inches. Built with a robust split-frame clamshell design, the machine mounts securely around the pipe, allowing precise cutting and beveling directly on in-service or fixed pipelines.
Engineered for demanding industrial environments, the OD377 is commonly used in oil and gas operations, petrochemical plants, power stations, and shipbuilding yards, where clean cuts and accurate weld preparation are critical. Its cold cutting process eliminates sparks, excessive heat, and metallurgical changes, helping maintain pipe integrity and improve overall welding quality.
The machine supports pneumatic, hydraulic, and electric drive options, making it suitable for both remote fieldwork and controlled workshop applications. Thanks to its compact footprint and modular construction, the OD377 performs reliably in confined spaces, elevated locations, and shutdown maintenance scenarios. Safe, efficient, and highly precise, it is an ideal tool for pipeline cutting, beveling, and on-site fabrication tasks.
| Item | ODM377 (Electric) | ODP377 (Pneumatic) | ODH377 (Hydraulic) |
|---|---|---|---|
| Drive Type | Metabo Electric Motor | Pneumatic Motor | Hydraulic Motor |
| Power | 3.22 Hp / 2.4 Kw | 3.75 Hp / 2.76 Kw | 10 Hp / 7.5 Kw |
| Air Consumption | N/A | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | 220-240 V, 50/60 Hz | N/A | 380 V, 50/60 Hz |
| Working Range (OD) | 200-377 mm (8"-14") | 200-377 mm (8"-14") | 200-377 mm (8"-14") |
| Wall Thickness (Standard) | ≤30 mm | ≤30 mm | ≤30 mm |
| Wall Thickness (Heavy Wall) | 200 mm | 200 mm | 200 mm |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev | 0.083 mm/rev |
- Precision Cold Cutting Performance: The OD377 uses advanced cold machining technology to produce clean, accurate cuts without heat-affected zones, reducing rework and ensuring consistent weld-ready edges.
- Multi-Material Capability: Designed to handle carbon steel, stainless steel, and alloy steel pipes, this machine delivers stable and repeatable results across a wide range of industrial applications.
- Comprehensive Beveling Functions: With interchangeable tooling, the OD377 supports V bevels, J bevels, facing, chamfering, and boring, allowing operators to adapt quickly to different pipe specifications.
- Efficient Diameter Coverage: Optimized for the 8"-14" OD range, the OD377 fills the gap between small and mid-size pipeline cutting requirements while maintaining high accuracy.
- Multiple Drive Configurations: Available with air, hydraulic, or electric drives, the machine can be customized to suit site conditions, safety regulations, and customer preferences.
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
|---|---|---|---|
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
| OD-508 | 355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |

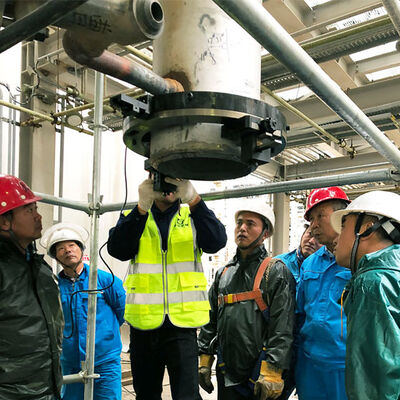

In the oil and gas industry, pipeline integrity is critical for safe and continuous operations. A pipe cutting and beveling machine ensures precise cold cutting and accurate bevel preparation for high-pressure pipelines, offshore platforms, and refinery shutdowns. Unlike flame cutting, the cold cutting process eliminates sparks, heat damage, and distortion, making it safe for hazardous environments. Its portable clamshell design allows on-site installation without disassembling the pipeline, reducing downtime and maintenance costs. Whether for new pipeline construction, emergency repair, or scheduled shutdown projects, the machine delivers efficiency, reliability, and weld quality that meet strict oilfield standards.
