FI40 Portable Flange Facer with 2.2 Hp Power for Precision Machining and Modular Design
| MOQ: | 1 |
| Price: | 8000USD-32000USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
FI40
Pneumatic Power:
2.2 Hp / 1.7 KW
Electric Power:
2.2 Hp Panasonic Servo Motor
Air Supply:
1.8 M³/min @ 0.6 MPa
Power Supply:
220–240 V, 50/60 Hz
Highlight:
2.2 Hp Portable Flange Facer
,Precision Machining Flange Facing Machine
,Modular Design On Site Flange Facing Machine
Product Description
FI40 Portable Flange Facer: On-Site Precision Machining for Industrial Seals

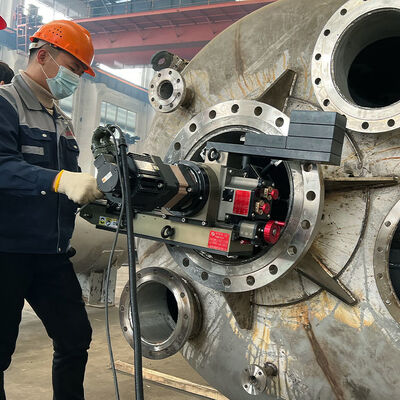

On-Site Flange Machining in Action: The FI40 Portable Powerhouse
The Challenge: The High Cost of Dismantling Heavy Infrastructure
In heavy industries like Power Generation, Oil & Gas, and Petrochemicals, flange integrity is critical for operational safety. When large-scale flange surfaces suffer from corrosion, erosion, or mechanical damage, traditional solutions required dismantling entire piping systems and transporting components to central machine shops.
In heavy industries like Power Generation, Oil & Gas, and Petrochemicals, flange integrity is critical for operational safety. When large-scale flange surfaces suffer from corrosion, erosion, or mechanical damage, traditional solutions required dismantling entire piping systems and transporting components to central machine shops.
This legacy approach presents three major risks:
- Extended Downtime: Days or weeks of lost production
- Logistical Complexity: High costs for heavy-lift cranes and specialized transport
- Assembly Risks: Potential for secondary damage during re-installation
Precision Field Engineering with the FI40
The FI40 Portable Flange Facing Machine delivers machine-shop accuracy directly to job sites. In field applications, the FI40 restores critically damaged sealing surfaces on high-pressure vessels by mounting directly to equipment, eliminating removal requirements and performing full-surface restoration in situ.
Machine Features
Integrated Mount System
Rapid setup on internal or external diameters. Reduces labor hours by up to 40%.
Precision Feed Rate
Achieves industry-standard Gramophone or Smooth finishes. Guarantees leak-proof seals under high pressure.
Modular Design
Easily transported to confined spaces or elevated platforms. Ideal for offshore and remote site maintenance.
High-Torque Drive
Consistent cutting depth even on hardened alloys. Ensures surface uniformity across large diameters.
Technical Specifications
| Item | FI40P (Pneumatic) | FI40E (Electric) |
|---|---|---|
| Drive Type | Pneumatic Motor (2.2 Hp / 1.7 kW) | Panasonic Servo Motor (2.2 Hp / 1.7 kW) |
| Air Consumption | 1.8 m³/min @ 0.6 MPa | N/A |
| Voltage | N/A | 220-240 V, 50/60 Hz |
| Facing Diameter | 153-1000 mm (6"-40") | 153-1000 mm (6"-40") |
| ID Mounting Range | 145-910 mm (3.78"-28.35") | 145-910 mm (3.78"-28.35") |
| Feed Speed | 0.11,0.14,0.17,0.23,0.37,0.5 mm/rev | 0.11,0.14,0.17,0.23,0.37,0.5 mm/rev |
| Rotation Speed | 10-33 rpm | 0-40 rpm |
| Shipping Weight | 310 kg | 350 kg |
| Shipping Dimensions | 1250×640×605 mm | 1250×640×775 mm |
How to Choose the Right Power Option for On-Site Flange Facing
FI40P (Pneumatic Motor)
Powered by a 2.2 HP Modec air motor, this model is suitable for ATEX or explosive environments. Perfect for offshore rigs and chemical sites. Requires a stable air source. In remote areas, you may need an auxiliary compressor to maintain consistent pressure and flow.
FI40E (Electric Motor)
Fitted with a 2.0 HP Panasonic servo motor, it offers continuous torque, stepless speed adjustment, and real-time speed feedback via a remote control box. Highly preferred for workshops, refineries, and scheduled maintenance sites with stable power supply.
Why Choose the FI40 for Your Maintenance Fleet?
The FI40 is more than a repair tool—it is a strategic asset for Preventative Maintenance (PM). By addressing minor surface imperfections during scheduled shutdowns, operators can prevent catastrophic seal failures and environmental leaks before they occur.
