26" On Site Flange Facing Machine ID Mounted Lightweight With Easy Installation
| MOQ: | 1 |
| Price: | 5000USD-20000USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
26" On Site Flange Facing Machine
,26" portable flange facer
,Lightweight On Site Flange Facing Machine
ON-SITE MACHINING CASE STUDY

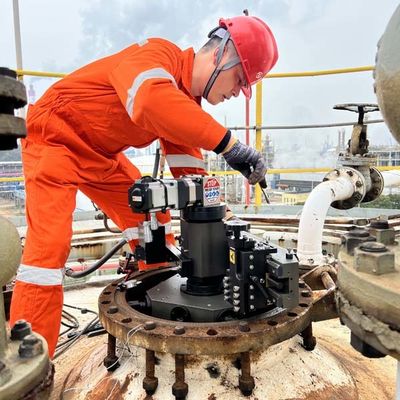

On-Site Flange Facing in Chemical Plant Using FI26E Flange Facer
During routine maintenance in a chemical plant, the MT Portable Machine team performed critical on-site flange repair using the FI26E Flange Facer. Over time, flanges exposed to high pressure and corrosion develop surface damage that can lead to leaks or equipment failure. Quick and precise resurfacing is essential to restore sealing performance.
The FI26E is a servo-driven internally mounted flange facer, ideal for machining flanges from 4.72" to 27.56". It features a lightweight aerospace-grade aluminum body, making it easy to install in tight or elevated spaces. Its dual feed system delivers ASME B16.5-compliant finishes, ensuring sealing reliability.
Powered by a 1.0 kW Panasonic servo motor, the FI26E eliminates the need for external air compressors or hydraulic power. The motor offers precise, stable cutting at low speeds, adjustable via a remote control box—perfect for workshop or remote field use.
Thanks to the FI26E’s rigid construction and MT’s experienced field team, the repair was completed with high precision and minimal downtime, restoring flange integrity and helping the plant resume operations safely and efficiently.
PRODUCT INTRODUCTION
The FI26 On-Site Flange Facing Machine is purpose-built for in-situ flange repair in demanding field environments. With an internal mounting range of 4.72"–27.56" (120–700 mm), this machine delivers precision resurfacing of damaged or corroded flange sealing faces—without requiring disassembly of piping systems. Designed for oil & gas, petrochemical, power generation, and marine sectors, it is ideal for re-machining flat face (FF), raised face (RF), ring-type joint (RTJ), tongue & groove, and other custom groove profiles to meet ASME B16.5 surface standards.
Unlike bulky traditional methods, the FI26 allows quick setup, all-position operation, and fast turnaround—making it the optimal solution for emergency maintenance and scheduled shutdowns where downtime is critical.
MACHINE FEATURES
Internal Mounting for All-Position Machining
With three quick-set bases and micro-adjustable jaws, the FI26 securely clamps inside flanges for machining in horizontal, vertical, or inverted orientations—perfect for tight or overhead access.
Lightweight Aerospace-Grade Construction
The tool body, base, and spindle housing are built from high-strength aluminum alloy for optimal strength-to-weight ratio—ideal for high-altitude or remote applications.
NSK Bearings + Dual Feed System
High-precision NSK bearings combined with linear guideways and dual feed rates (0.125 mm/rev & 0.5 mm/rev) ensure smooth, accurate resurfacing with ASME-compliant spiral serrated or smooth finishes.
360° Swivel Tool Post
Enables machining of complex geometries and custom grooves without repositioning, enhancing productivity and finish quality.
TECHNIAL SPECIFICATIONS
| Item | FI26P (Pneumatic) | FI26E (Electric) |
|---|---|---|
| Drive Type | Pneumatic Motor (1.34 Hp / 1.0 kW) | Panasonic Servo Motor (1.34 Hp / 1.0 kW) |
| Air Consumption | 1.3 m³/min @ 0.6 MPa | N/A |
| Voltage | N/A | 220–240 V, 50/60 Hz |
| Facing Diameter | 120–700 mm (4.72"–27.56") | 120–700 mm (4.72"–27.56") |
| ID Mounting Range | 96–720 mm (3.78"–28.35") | 96–720 mm (3.78"–28.35") |
| Feed Speed | 0.125 & 0.5 mm/rev | 0.125 & 0.5 mm/rev |
| Rotation Speed | 45 rpm | 45 rpm |
| Shipping Weight | 161 kg | 177 kg |
| Shipping Dimensions | 865×600×600 mm | 865×600×600 mm |
HOW TO CHOOSE THE RIGHT POWER OPTION FOR ON-SITE FLANGE FACING
Pneumatic Model – FI26P
The FI26P uses a 1.0 kW pneumatic motor (1.34 Hp) operating at 1.3 m³/min @ 0.6 MPa. It’s best suited for hazardous or ATEX-classified environments where electrical equipment is restricted.
Note: Requires a consistent compressed air supply. For distant or isolated sites, ensure adequate air pressure and flow—otherwise, a dedicated compressor may be required.
Electric Model – FI26E
The FI26E features a 1.0 kW Panasonic servo motor, supporting stepless speed control and high torque at low RPM. It is the preferred option for most users, especially during plant shutdowns or controlled environments. The remote pendant controller allows real-time speed adjustment and direction control, improving operational safety and accuracy.
