40 Inches Id Mounted Pneumatic Flange Facer Innovative Portable Facing Machine
| MOQ: | 1 |
| Price: | 8000USD-32000USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
40 Inches Pneumatic Flange Facer
,40 Inches Portable Facing Machine
,Innovative Portable Facing Machine
ON-SITE MACHINING CASE STUDY
Innovative On-Site Machining Solutions by MT Portable Machine
Imagine the flange on a critical pipeline component starts leaking. Stopping operations, dismantling the system, and transporting the component for offsite repair can delay production for days—costing tens of thousands in lost uptime.
This is why MT Portable Machine developed the FI40—so that industrial teams can bring the repair to the flange, not the other way around. Our team recently completed a live repair at a petrochemical refinery, restoring a corroded 32” flange face in under 6 hours using the FI40E. The machine’s servo-driven system allowed for precise control, and its rugged frame handled difficult mounting positions with ease.
MT engineers constantly work on-site to validate our equipment, gather field feedback, and update designs to meet real-world demands. This cycle of innovation, feedback, and refinement is why MT is trusted by major energy, chemical, and marine operations worldwide.
PRODUCT INTRODUCTION

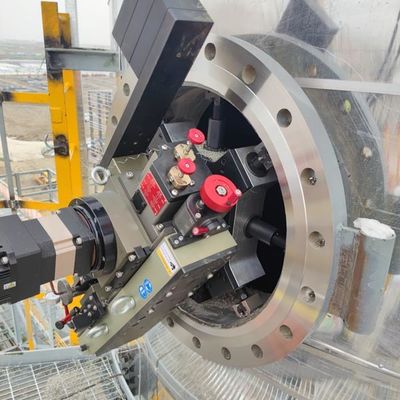

The FI40 Flange Facer is an internally mounted on-site machining solution engineered to repair and resurface flange sealing faces directly at the job site—eliminating the need to dismantle large equipment. With a machining range of 6 to 40 inches (153–1000 mm), this machine is ideal for precision reconditioning of flat face (FF), raised face (RF), RTJ, and other critical flange profiles to meet ASME B16.5 standards.
Whether operating in a chemical plant, offshore platform, or a power generation facility, the FI40 delivers exceptional accuracy, quick setup, and long-term reliability. Its compact modular design, coupled with powerful pneumatic or electric servo motor options, ensures it performs efficiently in both routine maintenance and emergency shutdowns.
MACHINE FEATURES
Robust Cutting Accuracy
Integrated with NSK precision bearings and a V-guideway system, FI40 guarantees smooth, high-tolerance machining, even on heavily corroded flanges.
Six-Step Auto Feed System
Offers variable feed speeds to achieve both smooth and phonographic finishes, ensuring optimal gasket sealing.
360° Swivel Tool Post
Allows custom groove machining for specialized applications like RTJ and weld prep, enhancing flexibility for diverse field needs.
Quick-Set Mounting Base System
Three adjustable ID-mount bases with micro-adjustable jaws enable accurate, fast alignment in any position—vertical, horizontal, or overhead.
TECHNIAL SPECIFICATIONS
| Item | FI40P (Pneumatic) | FI40E (Electric) |
|---|---|---|
| Drive Type | Pneumatic Motor (2.2 Hp / 1.7 kW) | Panasonic Servo Motor (2.2 Hp / 1.7 kW) |
| Air Consumption | 1.8 m³/min @ 0.6 MPa | N/A |
| Voltage | N/A | 220–240 V, 50/60 Hz |
| Facing Diameter | 153–1000 mm (6"–40") | 153–1000 mm (6"–40") |
| ID Mounting Range | 145–910 mm (3.78"–28.35") | 145–910 mm (3.78"–28.35") |
| Feed Speed | 0.11,0.14,0.17,0.23,0.37,0.5 mm/rev | 0.11,0.14,0.17,0.23,0.37,0.5 mm/rev |
| Rotation Speed | 10-33 rpm | 0-40 rpm |
| Shipping Weight | 310 kg | 350 kg |
| Shipping Dimensions | 1250×640×605 mm | 1250×640×775 mm |
HOW TO CHOOSE THE RIGHT POWER OPTION FOR ON-SITE FLANGE FACING
FI40P (Pneumatic Motor):
Powered by a 2.2 HP Modec air motor, this model is suitable for ATEX or explosive environments. It’s perfect for offshore rigs and chemical sites.
Requires a stable air source. In remote areas, you may need an auxiliary compressor to maintain consistent pressure and flow.
FI40E (Electric Motor):
Fitted with a 2.0 HP Panasonic servo motor, it offers continuous torque, stepless speed adjustment, and real-time speed feedback via a remote control box.
Highly preferred for workshops, refineries, and scheduled maintenance sites with stable power supply.
