FI60 Heavy-Duty Large-Diameter ID Mounted Portable Flange Facing Machine for On-Site Resurfacing (320-1500 mm)
| MOQ: | 1 |
| Price: | 11000USD-44000USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
FI60
Document
ID Mounted Range:
290–1450 MM (11.4"–57")
Shipping Dimensions (L×W×H):
1480×725×1060 MM
Shipping Weight:
650KG/699KG
Highlight:
Large-Diameter Flange Facing Machine
,ID Mounted Portable Flange Facer
,Heavy-Duty Flange Resurfacing Tool
Product Description
FI60 Large Portable Flange Facing Machine - ID Mounted Heavy-Duty On-Site Resurfacing Tool 12.6–59”
FI60 Heavy-Duty ID Mounted Flange Facing Machine
Large-Diameter On-Site Flange Resurfacing Solution (320 -1500 mm / 12.6-59")

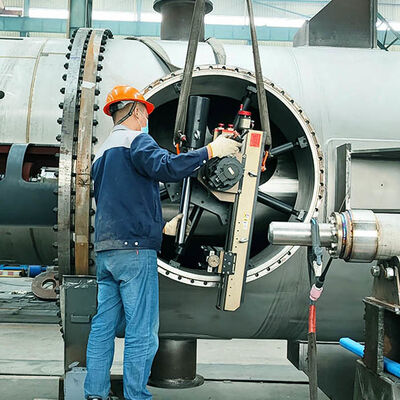

The FI60 flange facing machine is a robust internally mounted portable machining system developed for large-diameter flange repair and resurfacing in demanding industrial environments. Covering a facing range from 320 mm to 1500 mm, with an internal clamping capacity of 290 mm to 1450 mm, the FI60 is engineered to restore critical sealing surfaces directly at the job site.
Designed for shutdown maintenance, plant turnarounds, and offshore service operations, this heavy-duty flange resurfacing machine delivers precision, stability, and repeatable machining performance across horizontal, vertical, and elevated working positions.
SPECIFICATIONS
| Item | FI60P (Pneumatic) | FI60E (Electric) |
|---|---|---|
| Drive Type | Pneumatic Motor (4.1 Hp / 3.0 kW) | Panasonic Servo Motor (4.1 Hp / 3.0 kW) |
| Air Consumption | 2.9m³/min @ 0.6 MPa | N/A |
| Voltage | N/A | 380V, 50/60 Hz |
| Facing Diameter | 320-1500 mm (12.6"-59") | 320-1500 mm (12.6"-59") |
| ID Mounting Range | 290-1450 mm (11.4"-57") | 290-1450 mm (11.4"-57") |
| Feed Speed | 0.14,0.19,0.23,0.31,0.5,0.67 mm/rev | 0.14,0.19,0.23,0.31,0.5,0.67 mm/rev |
| Rotation Speed | 5-22 rpm | 0-40 rpm |
| Shipping Weight | 650 kg | 699 kg |
| Shipping Dimensions | 1480×725×1060 mm | 1480×725×1060 mm |
KEY FEATURES
- Extended Large-Diameter Capacity: Handles flanges up to 59 inches (1500 mm), making it suitable for heavy industrial applications in oil & gas terminals, refineries, and power stations.
- Dual Drive Configuration: Selectable drive systems allow adaptation to site conditions: Modec pneumatic motor - safe for hazardous and explosive areas; Panasonic electric servo motor - precise speed control and smooth torque output.
- Six Continuous Auto-Feed Rates: The integrated automatic feed mechanism offers six adjustable feed settings, enabling consistent surface finish quality and precise material removal control.
- High-Precision Machining Structure: Built with NSK precision bearings and reinforced V-type linear guide rails, the FI60 ensures minimal vibration, improved rigidity, and superior machining repeatability.
- Secure Internal Mounting System: Three interchangeable ID mounting bases feature micrometer-adjustable clamping jaws, ensuring accurate centering and stable operation even during heavy material removal.
- 360° Adjustable Tool Post: The rotating tool holder enables multi-angle cutting, groove reconditioning, chamfering, and complex profile machining without repositioning the unit.
- Field-Ready Construction: Manufactured from corrosion-resistant materials and delivered in a sealed steel transport crate, the FI60 is designed for offshore platforms, chemical plants, confined spaces, and remote maintenance sites.
FLANGE FACER MACHINE SELECTION TABLE
| Model | Facing Diameter Range | ID/OD Mounting Range | Drive Type |
|---|---|---|---|
| FI14M | 1.07" to 14" (27.2-355.6 mm) | 1.07" to 10.63" (27.2-270 mm) | Manual |
| FE12P | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Pneumatic (1.0 kW) |
| FE12E | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Electric Servo motor (1.0 kW) |
| FI26P | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Pneumatic (1.0 kW) |
| FI26E | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Electric Servo motor (1.0 kW) |
| FI40P | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Pneumatic (1.7 kW) |
| FI40E | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Electric Servo motor (1.5 kW) |
| FI60P | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Pneumatic (3.0 kW) |
| FI60E | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Electric Servo motor (3.0 kW) |
| FI80P | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Pneumatic (3.0 kW) |
| FI80E | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Electric Servo motor (3.0 kW) |
INDUSTRIES AND APPLICATIONS
- Oil and gas production facilities
- Petrochemical and refinery plants
- Power generation stations
- Offshore drilling platforms
- Pipeline fabrication and maintenance yards
