0-12 Inch OD Mounted Portable Flange Facing Machine with 45 RPM for Precision Flange Resurfacing
| MOQ: | 1 |
| Price: | 4500USD-18000USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
FE12
OD Mounted Range:
2-17.7 Inches (50-450 MM)
Rotation Speed:
45 RPM
Dimensions (LxWxH):
830×620×580 MM 1160×600×510 MM
Shipping Weight:
94.5KG/138KG
Highlight:
0-12 Inch Flange Facing Machine
,OD Mounted Flange Resurfacing Machine
,45 RPM Portable Flange Facer
Product Description

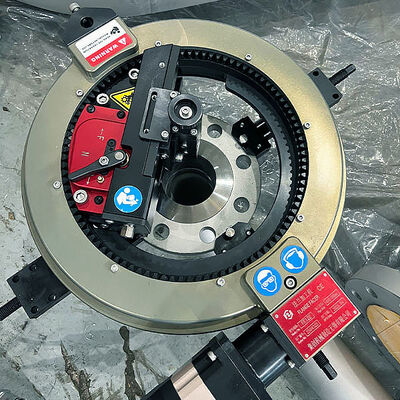

FE12 OD Mounted Flange Facer
0–12 Inch Portable Flange Resurfacing Machine for On-Site Precision Machining
The FE12 OD Mounted Flange Facer is a compact and high-precision flange resurfacing solution engineered for flanges up to 12 inches (305 mm). Designed for both field service and workshop applications, this portable flange facing machine restores damaged sealing surfaces and generates ASME-compliant spiral serrations with exceptional accuracy.
With its external mounting structure, the FE12 eliminates the need for internal pipe access, allowing safe machining on vertical, horizontal, or overhead flanges. It is widely used across industries such as oil and gas, petrochemical processing, power plants, shipbuilding, and offshore maintenance.
SPECIFICATIONS
| Item | FE12P (Pneumatic) | FE12E (Electric) |
|---|---|---|
| Model | FE12P Flange Facing Machine | FE12E Flange Facing Machine |
| Drive Type | Pneumatic Motor, 1.34 Hp / 1.0 kW | Panasonic Servo Motor, 1.34 Hp / 1.0 kW |
| Power Supply | 1.3 m³/min @ 0.6 MPa | 220-240V, 50/60 Hz |
| Facing Diameter | 0-12 inches (0-305 mm) | 0-12 inches (0-305 mm) |
| OD Mounting Range | 2-17.7 inches (50-450 mm) | 2-17.7 inches (50-450 mm) |
| Feed Speeds | 0.125 mm/rev & 0.5 mm/rev | 0.125 mm/rev & 0.5 mm/rev |
| Rotation Speed | 45 RPM | 45 RPM |
| Shipping Weight | 94.5 Kg | 138 Kg |
| Shipping Dimensions | 830×620×580 mm (Plastic Box) | 1160×600×510 mm (Steel Box) |
KEY FEATURES
ASME-Compliant Surface Finish
The FE12 produces gramophone-style spiral serrations (30-55 grooves per inch) in accordance with ASME B16.5 requirements. Surface roughness range: Ra 3.2-12.5 μm, ensuring optimal gasket sealing performance and leak prevention.
Dual Feed Rate System
Two selectable feed speeds: 0.125 mm/rev for fine finishing and smooth surface restoration, and 0.5 mm/rev for phonographic serration generation for sealing faces. This flexible feed system enables efficient roughing and finishing operations.
External Mounting Design
The OD-mounted clamping system provides safe machining without entering the pipeline, stable positioning for confined spaces, and reliable operation on overhead or vertical flanges. Ideal for maintenance shutdowns and emergency repairs.
Multiple Drive Configurations
The FE12 series offers two power options to meet different working environments: FE12P Pneumatic (1.34 Hp) recommended for hazardous or explosive zones (ATEX-ready environments), and FE12E Electric Servo (1.34 Hp) for high-precision control in workshop and fabrication facilities.
Heavy-Duty Construction
- Preloaded high-rigidity bearing system
- Quick-adjust clamping arms
- Reinforced transport cases for field mobility
- Built for long-term durability in demanding industrial environments
Application Industries
- Oil & Gas Refineries
- Petrochemical Plants
- Power Generation Facilities
- Offshore Platforms
- Shipyards and Marine Engineering
FLANGE FACER MACHINE SELECTION TABLE
| Model | Facing Diameter Range | ID/OD Mounting Range | Drive Type |
|---|---|---|---|
| FI14M | 1.07" to 14" (27.2-355.6 mm) | 1.07" to 10.63" (27.2-270 mm) | Manual |
| FE12P | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Pneumatic (1.0 kW) |
| FE12E | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Electric Servo motor (1.0 kW) |
| FI26P | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Pneumatic (1.0 kW) |
| FI26E | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Electric Servo motor (1.0 kW) |
| FI40P | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Pneumatic (1.7 kW) |
| FI40E | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Electric Servo motor (1.5 kW) |
| FI60P | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Pneumatic (3.0 kW) |
| FI60E | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Electric Servo motor (3.0 kW) |
| FI80P | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Pneumatic (3.0 kW) |
| FI80E | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Electric Servo motor (3.0 kW) |
