FI26 Portable ID Mounted Flange Facing Machine for 120–700 mm Diameters with Precision On-Site Machining and Modular Construction
| MOQ: | 1 |
| Price: | 5000USD-20000USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
FI26
Document
ID Mounted Range:
96–720 Mm (3.78"–28.35")
Dimensions (LxWxH):
865×600×600 MM
Shipping Weight:
161KG/177KG
Highlight:
120–700 mm Diameter Range Flange Facing Machine
,Precision On-Site Machining Portable Flange Facer
,Modular Construction ID Mounted Flange Facing Machine
Product Description

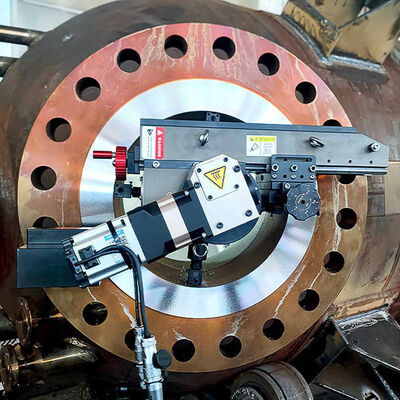

FI26 Portable ID Mounted Flange Facing Machine
Precision On-Site Flange Machining for 120–700 mm (4.72”–27.56”) Diameters
The FI26 portable flange facing machine is an internally mounted field machining solution engineered for accurate flange resurfacing and pipe weld preparation. Designed for flange diameters from 120 mm to 700 mm, this ID mounted flange facer delivers stable alignment, smooth feed control, and repeatable machining accuracy in horizontal, vertical, or overhead positions.
Its modular design and adaptable drive configurations make it a reliable choice for power generation plants, offshore installations, petrochemical facilities, pipeline construction sites, and emergency shutdown maintenance.
Specifications
| Item | FI26P (Pneumatic) | FI26E (Electric) |
|---|---|---|
| Drive Type | Pneumatic Motor (1.34 Hp / 1.0 kW) | Panasonic Servo Motor (1.34 Hp / 1.0 kW) |
| Air Consumption | 1.3 m³/min @ 0.6 MPa | N/A |
| Voltage | N/A | 220-240 V, 50/60 Hz |
| Facing Diameter | 120-700 mm (4.72"-27.56") | 120-700 mm (4.72"-27.56") |
| ID Mounting Range | 96-720 mm (3.78"-28.35") | 96-720 mm (3.78"-28.35") |
| Feed Speed | 0.125 & 0.5 mm/rev | 0.125 & 0.5 mm/rev |
| Rotation Speed | 45 rpm | 45 rpm |
| Shipping Weight | 161 kg | 177 kg |
| Shipping Dimensions | 865×600×600 mm | 865×600×600 mm |
Key Features
Internal Mounting with Interchangeable Clamping Bases
Three adjustable ID clamping assemblies provide rapid centering and secure installation across a wide internal pipe range. The rigid mounting structure minimizes vibration and ensures concentric machining results.
Compact Modular Construction
Manufactured from lightweight yet durable alloy materials, the FI26 can be quickly dismantled for transport and reassembled on-site. This makes it highly suitable for confined spaces such as boiler systems, heat exchangers, and offshore platforms.
High-Precision Machining Performance
Equipped with premium-grade bearings and precision linear guide mechanisms, the machine ensures stable cutting motion and consistent surface finish quality, including standard phonographic serrations.
Multiple Drive Configurations
The FI26 adapts to diverse working environments with selectable drive systems:
- Pneumatic motor - ideal for explosive or hazardous zones
- Electric servo motor - precise variable speed control for controlled machining
This flexibility allows compliance with site-specific safety and operational requirements.
360° Rotating Tool Holder
The fully adjustable tool post enables multi-angle cutting, groove restoration, chamfering, and seal face reconditioning without repositioning the machine.
Built for Harsh Industrial Conditions
Corrosion-resistant components and reinforced structural design ensure durability in oil and gas, chemical processing, offshore, and power generation industries. The FI26 performs reliably during plant turnarounds, shutdowns, and routine maintenance.
Flange Facer Machine Selection Table
| Model | Facing Diameter Range | ID/OD Mounting Range | Drive Type |
|---|---|---|---|
| FI14M | 1.07" to 14" (27.2-355.6 mm) | 1.07" to 10.63" (27.2-270 mm) | Manual |
| FE12P | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Pneumatic (1.0 kW) |
| FE12E | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Electric Servo motor (1.0 kW) |
| FI26P | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Pneumatic (1.0 kW) |
| FI26E | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Electric Servo motor (1.0 kW) |
| FI40P | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Pneumatic (1.7 kW) |
| FI40E | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Electric Servo motor (1.5 kW) |
| FI60P | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Pneumatic (3.0 kW) |
| FI60E | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Electric Servo motor (3.0 kW) |
| FI80P | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Pneumatic (3.0 kW) |
| FI80E | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Electric Servo motor (3.0 kW) |
Suitable Flange Types
Flat Face (FF)
Raised Face (RF)
Ring Type Joint (RTJ)
Tongue and Groove (T&G)
Lens Ring
Compact Flanges
Machining results meet ASME B16.5 and related international standards.
