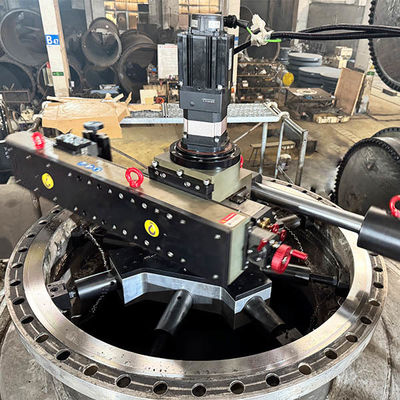

FI60 Internally Mounted Portable Refacing Tool for Heavy-Duty On-Site Flange Repair
The FI60 Flange Facing Machine is a high-performance, internally mounted solution specifically engineered for on-site flange resurfacing and maintenance of large-diameter flanges. Designed to restore sealing surfaces in industrial applications, it handles flange diameters from 12.6 to 59 inches (320–1500 mm) with an ID mounting range of 11.4 to 57 inches (290–1450 mm).
This portable flange facing machine is built for precision machining of flat face (FF), raised face (RF), ring-type joint (RTJ), weld overlays, and custom profiles. It supports ASME B16.5-compliant finishes, including phonographic and serrated sealing surfaces.
Available with either a Modec pneumatic motor or a Panasonic electric servo motor, the FI60 offers the adaptability and reliability required for field machining tasks in oil & gas, power generation, chemical processing, and offshore maintenance environments.
SPECIFICATIONS
| Item | FI60P (Pneumatic) | FI60E (Electric) |
|---|---|---|
| Drive Type | Pneumatic Motor (4.1 Hp / 3.0 kW) | Panasonic Servo Motor (4.1 Hp / 3.0 kW) |
| Air Consumption | 2.9m³/min @ 0.6 MPa | N/A |
| Voltage | N/A | 380V, 50/60 Hz |
| Facing Diameter | 320–1500 mm (12.6"–59") | 320–1500 mm (12.6"–59") |
| ID Mounting Range | 290–1450 mm (11.4"–57") | 290–1450 mm (11.4"–57") |
| Feed Speed | 0.14,0.19,0.23,0.31,0.5,0.67 mm/rev | 0.14,0.19,0.23,0.31,0.5,0.67 mm/rev |
| Rotation Speed | 5-22 rpm | 0-40 rpm |
| Shipping Weight | 650 kg | 699 kg |
| Shipping Dimensions | 1480×725×1060 mm | 1480×725×1060 mm |
KEY FEATURES
Wide Machining Capacity
Capable of facing flanges up to 59 inches, the FI60 accommodates large-scale industrial repair and resurfacing projects.
Flexible Drive Options
Available with pneumatic or electric drive systems to meet different jobsite conditions and power availability.
Six Auto-Feed Settings
Features 6 continuous feed rates, ensuring uniform, high-quality surface finishes—including gramophone-style spirals required for pressure-sealing flanges.
Precision Engineering
Incorporates NSK high-precision bearings and V-shaped linear guideways for exceptional cutting stability and repeatability.
Modular and Secure ID Mounting
Equipped with three interchangeable internal mounting bases with micrometer-adjustable jaws for precise alignment, strong clamping, and vibration-free operation.
360° Swivel Tool Post
Allows for versatile machining angles and detailed groove cutting without repositioning the machine.
Rugged and Portable Construction
Packaged in a waterproof steel crate for easy transport and jobsite protection. Ideal for use in confined spaces, offshore platforms, and remote industrial facilities.
FLANGE FACER MACHINE SELECTION TABLE
|
Model |
Facing Diameter Range |
ID/OD Mounting Range |
Drive Type |
|
FI14M |
1.07" to 14" (27.2–355.6 mm) |
1.07" to 10.63" (27.2–270 mm) |
Manual |
|
FE12P |
0–12" (0–305 mm) |
2–17.7" (50–450 mm) |
Pneumatic (1.0 kW) |
|
FE12E |
0–12" (0–305 mm) |
2–17.7" (50–450 mm) |
Electric Servo motor (1.0 kW) |
|
FI26P |
4.72–27.56" (120–700 mm) |
3.78–28.35" (96–720 mm) |
Pneumatic (1.0 kW) |
|
FI26E |
4.72–27.56" (120–700 mm) |
3.78–28.35" (96–720 mm) |
Electric Servo motor (1.0 kW) |
|
FI40P |
6–40" (153–1000 mm) |
5.7–35.8" (145–910 mm) |
Pneumatic (1.7 kW) |
|
FI40E |
6–40" (153–1000 mm) |
5.7–35.8" (145–910 mm) |
Electric Servo motor (1.5 kW) |
|
FI60P |
12.6–59" (320–1500 mm) |
11.4–57" (290–1450 mm) |
Pneumatic (3.0 kW) |
|
FI60E |
12.6–59" (320–1500 mm) |
11.4–57" (290–1450 mm) |
Electric Servo motor (3.0 kW) |
|
FI80P |
26.34–80" (670–2032 mm) |
31.1–74.8" (790–1900 mm) |
Pneumatic (3.0 kW) |
|
FI80E |
26.34–80" (670–2032 mm) |
31.1–74.8" (790–1900 mm) |
Electric Servo motor (3.0 kW) |
INDUSTRIES AND APPLICATIONS
The FI60 Flange Facing Machine is engineered for versatile applications across a wide spectrum of industries that require precision flange maintenance, sealing surface restoration, and equipment downtime reduction. Its portability and internal-mount design make it particularly valuable in challenging field environments. Key industries include:
Oil and Gas
Used extensively in both upstream and downstream operations, the FI60 ensures safe and reliable sealing surfaces on flanges in pipelines, pressure vessels, separators, heat exchangers, and manifold systems. It supports scheduled maintenance, shutdowns, and emergency repairs at drilling rigs, refineries, and LNG terminals.
Power Generation
Ideal for nuclear, thermal, hydroelectric, and renewable power plants, this machine restores damaged or worn flange faces on high-pressure steam lines, condensers, and turbine systems—helping maintain plant safety and efficiency.
Petrochemical and Chemical Processing
Provides precise machining of flanges in process piping systems, reactors, and high-corrosion environments. It minimizes sealing failures and helps maintain compliance with safety and process integrity standards in hazardous zones.
Marine and Offshore
Supports routine and urgent maintenance of flanged joints in offshore drilling platforms, FPSOs, and shipboard piping systems. Its compact form factor makes it suitable for space-restricted environments.
Infrastructure and Utilities
Employed in district heating/cooling systems, water treatment plants, and high-capacity utility pipelines to restore flanged joints and reduce leak risks.
Pipeline Fabrication and Modular Skids
Ideal for workshops and prefabrication yards where flange preparation is critical before field assembly. Ensures precise gasket seating surfaces during fabrication of modular piping skids or pipeline sections.
Maintenance and Field Service Contractors
A go-to solution for mobile technicians and maintenance teams offering on-site machining services. The FI60 enhances service capability by enabling quick setup and high-precision results across a wide range of flange sizes.
