High Accuracy Portable Flange Facing Machine for 6-40 Inches Flange Repair
| MOQ: | 1 |
| Price: | 8000USD-32000USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
FI40
Document
ID Mounted Range:
145–910 Mm (3.78"–28.35")
Dimensions (LxWxH):
1250×640×605/1250×640×775 MM
Shipping Weight:
310KG/350KG
Highlight:
High Accuracy Portable Facing Machine
,6 Inches Portable Facing Machine
,6 Inches Flange Serration Machine
Product Description

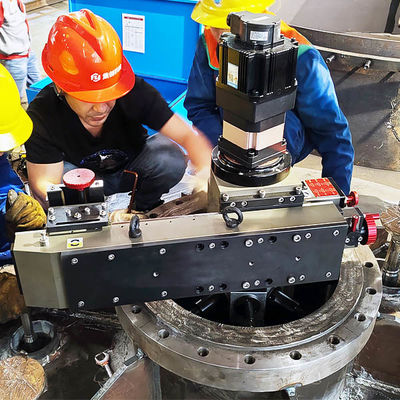

FI40 Flange Facing Machine: High Accuracy Portable Tool for 6-40 Inch Flanges
The FI40 Flange Facing Machine is a robust, internally mounted tool designed for precision on-site flange repair and machining. With a working range from 6 inches to 40 inches (153-1000 mm), this portable flange facing machine is ideal for refurbishing flat face, raised face (RF), ring-type joint (RTJ), and custom-groove flanges. It restores sealing surfaces in compliance with ASME B16.5 standards, making it a trusted solution in oil and gas, power generation, chemical plants, and offshore maintenance operations.
Built with a modular structure for portability and quick setup, the FI40 is available with pneumatic or electric servo drive options to suit various job site conditions.
Specifications
| Item | FI40P (Pneumatic) | FI40E (Electric) |
|---|---|---|
| Drive Type | Pneumatic Motor (2.2 Hp / 1.7 kW) | Panasonic Servo Motor (2.2 Hp / 1.7 kW) |
| Air Consumption | 1.8 m³/min @ 0.6 MPa | N/A |
| Voltage | N/A | 220-240 V, 50/60 Hz |
| Facing Diameter | 153-1000 mm (6"-40") | 153-1000 mm (6"-40") |
| ID Mounting Range | 145-910 mm (3.78"-28.35") | 145-910 mm (3.78"-28.35") |
| Feed Speed | 0.11,0.14,0.17,0.23,0.37,0.5 mm/rev | 0.11,0.14,0.17,0.23,0.37,0.5 mm/rev |
| Rotation Speed | 10-33 rpm | 0-40 rpm |
| Shipping Weight | 310 kg | 350 kg |
| Shipping Dimensions | 1250×640×605 mm | 1250×640×775 mm |
Key Features
- Wide Machining Range: Handles flanges from 6" to 40", minimizing the need for multiple machines and reducing equipment costs.
- Dual Drive Options: Offers flexibility with either Modec pneumatic drive or Panasonic electric servo motor, suitable for diverse field applications.
- High Machining Accuracy: Incorporates NSK high-precision bearings and a durable "V" linear guide system, delivering consistent and smooth facing results.
- Six Continuous Feed Settings: Delivers a precise gramophone-style spiral finish, ensuring excellent sealing performance after machining.
- 360° Swivel Tool Post: Provides multi-angle cutting and groove machining capability for complex flange geometries.
- Portable and Durable: Compact design for ease of transport. Supplied with a waterproof steel carrying case for safe storage and rugged site conditions.
- Three Adjustable Mounting Bases: Allows for quick internal clamping and accurate alignment on flanges of different sizes and positions.
Flange Facer Machine Selection Table
| Model | Facing Diameter Range | ID/OD Mounting Range | Drive Type |
|---|---|---|---|
| FI14M | 1.07" to 14" (27.2-355.6 mm) | 1.07" to 10.63" (27.2-270 mm) | Manual |
| FE12P | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Pneumatic (1.0 kW) |
| FE12E | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Electric Servo motor (1.0 kW) |
| FI26P | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Pneumatic (1.0 kW) |
| FI26E | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Electric Servo motor (1.0 kW) |
| FI40P | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Pneumatic (1.7 kW) |
| FI40E | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Electric Servo motor (1.5 kW) |
| FI60P | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Pneumatic (3.0 kW) |
| FI60E | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Electric Servo motor (3.0 kW) |
| FI80P | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Pneumatic (3.0 kW) |
| FI80E | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Electric Servo motor (3.0 kW) |
Industries and Applications
The FI40 Flange Facing Machine is engineered for precision flange resurfacing in the most demanding industrial environments. Designed for on-site machining of large-diameter flanges, it offers unmatched performance across a broad spectrum of sectors. Its internally mounted configuration, high machining capacity (6"-40"), and portable design make it ideal for both scheduled maintenance and emergency flange repair.
Oil and Gas Industry
The FI40 is widely deployed for flange facing operations during turnarounds, pipeline maintenance, and refinery overhauls. It handles flanges on oil transmission lines, gas processing units, separators, heat exchangers, and other critical pressurized systems — ensuring flange surfaces are restored to ASME B16.5 compliance for leak-free sealing.
Power Generation
From fossil fuel plants to nuclear facilities and renewable energy stations, the FI40 performs accurate flange resurfacing on high-pressure steam lines, turbine housings, condenser connections, and heat recovery systems. Its precision feeds and rigid mounting base help reduce downtime during scheduled outages.
Chemical and Petrochemical Plants
Corrosive environments in chemical plants often degrade flange surfaces. The FI40 provides on-site precision machining for flanges in reactors, distillation columns, process piping, and pressure vessels — supporting safe and efficient recommissioning.
Shipbuilding and Marine Maintenance
Ideal for shipyards and offshore platforms, the FI40 flange facer is compact enough for confined engine rooms and robust enough for on-deck operations. It restores damaged flange faces on pipelines, valves, and seawater systems, essential for Class approval inspections and vessel integrity.
Industrial Equipment Manufacturing
In heavy equipment fabrication, where large flanges are used on pumps, compressors, and hydraulic systems, the FI40 is used for surface preparation, weld seam finishing, and machining sealing grooves before final assembly — ensuring proper alignment and sealing.
Offshore and Subsea Applications
Corrosion and mechanical wear are common in offshore installations. The FI40 is optimized for modular disassembly and transport, enabling technicians to carry out flange repairs on FPSOs, platforms, and subsea equipment with minimal disruption.
