FI14M Manual Flange Facing Machine - Portable ASME B16.5 Compliant Flange Resurfacing Tool
Products
Contact Us
|
FI14M Manual Flange Facing Machine - Portable ASME B16.5 Compliant Flange Resurfacing Tool
| MOQ: | 1 |
| Price: | 1350USD-5400USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
FI14M
Document
ID Mounted Range:
1.07" To 10.63" (27.2–270 MM)
Facing Standard:
ASME B16.5
Facing Types:
Smooth Face & Spiral Serrated Finish
Highlight:
Manual Flange Facing Machine
,Portable Flange Facer
,ASME B16.5 Flange Resurfacing Tool
Product Description

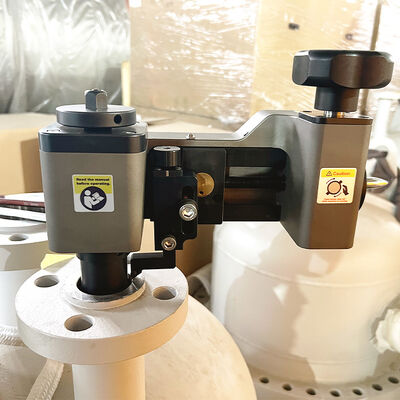

FI14M Manual Flange Facing Machine
Compact Portable Solution for On-Site Flange Resurfacing
The FI14M manual flange facing machine is a highly portable, hand-operated flange resurfacing tool engineered for precision machining directly at the job site. Designed specifically for environments where electrical, pneumatic, or hydraulic power is unavailable, this portable flange facer ensures dependable performance in remote and hazardous locations.
Built for field technicians who demand mobility and accuracy, the FI14M provides controlled flange machining with minimal setup time. It is particularly suitable for maintenance shutdowns, emergency flange repairs, and elevated pipeline systems.
Specifications
| Model | FI14M Flange Facing Machine |
| Facing Diameter Range | 1.07" to 14" (27.2-355.6 mm) |
| ID Mounting Range | 1.07" to 10.63" (27.2-270 mm) |
| Drive Type | Manual (no external power required) |
| Feed Speeds | Fine feed: 0.125 mm/rev (0.005 inch/rev) ASME B16.5 standard feed: 0.5 mm/rev (0.02 inch/rev) |
| Minimum Swing Diameter | With knob handle: 22.9" (582 mm) Without knob handle: 19.5" (495 mm) |
| Working Weight | 9.0 kg |
| Shipping Weight | 29.0 kg |
| Shipping Dimensions (L×W×H) | 680 × 510 × 250 mm (Plastic carry case) |
Key Features
Fully Manual Operation - No External Power Required
This portable flange resurfacing tool operates entirely by hand, eliminating the need for electricity or air supply. It is ideal for offshore platforms, remote pipelines, chemical plants, and explosion-risk zones.
Lightweight and Field-Ready Design
Weighing approximately 9 kg, the FI14M can be easily transported and installed by a single operator. Its compact body allows smooth operation in tight spaces, vertical pipe systems, and overhead flange positions.
Accurate Spiral Serration Finish
The machine is equipped with a precision feed mechanism and manually driven swing arm, producing consistent spiral serrations that comply with ASME B16.5 flange surface finish requirements.
Quick Internal Mounting System
Featuring an advanced internal clamping structure, the FI14M ensures rapid centering and secure positioning. This guarantees concentric resurfacing and accurate material removal depth.
Durable Industrial Construction
Manufactured from high-strength machined components, the FI14M is designed to withstand harsh industrial environments while maintaining long service life and machining stability.
Flange Facer Machine Selection Table
| Model | Facing Diameter Range | ID/OD Mounting Range | Drive Type |
|---|---|---|---|
| FI14M | 1.07" to 14" (27.2-355.6 mm) | 1.07" to 10.63" (27.2-270 mm) | Manual |
| FE12P | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Pneumatic (1.0 kW) |
| FE12E | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Electric Servo motor (1.0 kW) |
| FI26P | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Pneumatic (1.0 kW) |
| FI26E | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Electric Servo motor (1.0 kW) |
| FI40P | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Pneumatic (1.7 kW) |
| FI40E | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Electric Servo motor (1.5 kW) |
| FI60P | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Pneumatic (3.0 kW) |
| FI60E | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Electric Servo motor (3.0 kW) |
| FI80P | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Pneumatic (3.0 kW) |
| FI80E | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Electric Servo motor (3.0 kW) |
Industries and Applications
- On-site flange resurfacing and repair
- Oil and gas pipeline maintenance
- Petrochemical and refinery facilities
- Power generation plants
- Offshore and remote industrial sites
- Emergency flange machining in confined spaces
Suitable for raised face (RF) and flat face (FF) flange types.
