FI80 Portable Flange Facer with 26.34"–80" Facing Range, Pneumatic or Electric Drive, and High-Precision Bearings
| MOQ: | 1 |
| Price: | 15000USD-60000USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
FI80
Document
Facing Range:
26.34"–80" (670–2032 Mm)
ID Mounting Range:
31.1"–74.8" (790–1900 Mm)
Drive Options:
Pneumatic (FI80P) / Electric (FI80E)
Highlight:
portable flange facer internally mounted
,flange facer for 26 to 80 inches
,internally mounted portable flange facer
Product Description

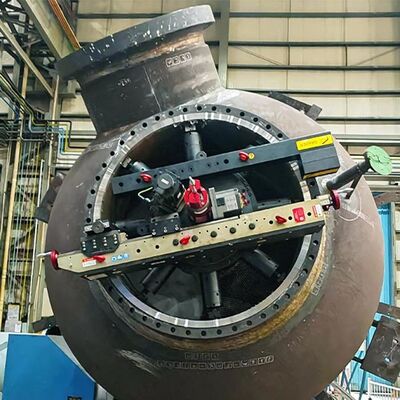

FI80 Portable Flange Facer – Internally Mounted Solution for 26" to 80" Flanges
The FI80 Flange Facer is a heavy-duty, internally mounted flange facing machine developed for accurate on-site restoration of extra-large flange sealing surfaces. Covering a machining range from 26.34" to 80" (670-2032 mm), it is specifically designed for applications where portability, precision, and reliability are critical.
Built with NSK high-precision bearings, a rigid "V" linear guide system, and a reinforced structural frame, the FI80 delivers stable cutting performance and uniform surface finishes that comply with ASME B16.5 requirements. It supports flat face (FF), raised face (RF), RTJ, V-groove, and other custom flange profiles, making it suitable for complex industrial maintenance tasks.
Available in pneumatic (FI80P) and electric servo (FI80E) configurations, the FI80 adapts easily to different site power conditions. Its modular construction and rugged steel transport case ensure dependable operation in remote locations, offshore platforms, and harsh working environments.
Specifications
| Item | FI80P (Pneumatic) | FI80E (Electric) |
|---|---|---|
| Drive Type | Pneumatic Motor (4.1 Hp / 3.0 kW) | Panasonic Servo Motor (4.1 Hp / 3.0 kW) |
| Air Consumption | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | N/A | 220-240 V, 50/60 Hz |
| Facing Diameter | 670-2032 mm (26.3"-80") | 670-2032 mm (26.3"-80") |
| ID Mounting Range | 790-1900 mm (31.1"-74.8") | 790-1900 mm (31.1"-74.8") |
| Feed Speed | 0.15,0.2,0.24,0.32,0.5,0.69 mm/rev | 0.15,0.2,0.24,0.32,0.5,0.69 mm/rev |
| Rotation Speed | 28 rpm | 0-23 rpm |
| Shipping Weight | 1025 kg | 1075 kg |
| Shipping Dimensions | 2015×800×880 mm | 2015×800×880 mm |
Key Features and Advantages
Extra-Large Diameter Capability
Designed for machining flanges from 26" to 80", ideal for large pipelines, pressure vessels, and heavy equipment.
Flexible Power Configurations
Choose pneumatic drive for hazardous areas or electric servo drive for precise speed and torque control.
High-Quality Surface Finish
Produces consistent gramophone-style finishes to ensure reliable gasket sealing and long-term joint integrity.
Fast and Accurate On-Site Setup
Internally mounted design with quick-adjust mounting bases allows rapid centering and precise alignment.
Rugged, Field-Proven Construction
Industrial-grade components, reinforced housing, and waterproof steel packaging ensure durability in demanding conditions.
Application Industries
- Oil & Gas pipeline maintenance
- Petrochemical and chemical plant shutdowns
- Power generation facilities (nuclear, thermal, hydro)
- Offshore drilling platforms
- Industrial MRO and valve refurbishment
- Pressure vessel and reactor flange machining
Flange Facer Machine Selection Table
| Model | Facing Diameter Range | ID/OD Mounting Range | Drive Type |
|---|---|---|---|
| FI14M | 1.07" to 14" (27.2-355.6 mm) | 1.07" to 10.63" (27.2-270 mm) | Manual |
| FE12P | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Pneumatic (1.0 kW) |
| FE12E | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Electric Servo motor (1.0 kW) |
| FI26P | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Pneumatic (1.0 kW) |
| FI26E | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Electric Servo motor (1.0 kW) |
| FI40P | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Pneumatic (1.7 kW) |
| FI40E | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Electric Servo motor (1.5 kW) |
| FI60P | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Pneumatic (3.0 kW) |
| FI60E | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Electric Servo motor (3.0 kW) |
| FI80P | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Pneumatic (3.0 kW) |
| FI80E | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Electric Servo motor (3.0 kW) |
