FI40 Portable Flange Facer with 6-40 inch Facing Range, Pneumatic/Electric Drive Options, and High-Precision Machining
Products
Contact Us
|
FI40 Portable Flange Facer with 6-40 inch Facing Range, Pneumatic/Electric Drive Options, and High-Precision Machining
| MOQ: | 1 |
| Price: | 8000USD-32000USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
FI40
Document
Facing Range:
6"–40" (153–1000 Mm)
ID Mounting Range:
5.7"–35.8" (145–910 Mm)
Drive Options:
Pneumatic (FI40P) / Electric (FI40E)
Highlight:
internally mounted flange facer
,portable flange facing machine 6-40 inches
,FI40 flange facer with warranty
Product Description
FI40 Flange Facer – Internally Mounted Portable Flange Facing Machine (6–40")

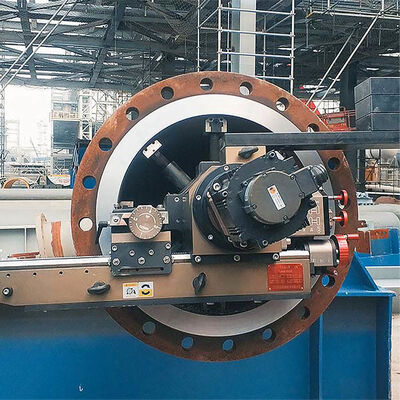

The FI40 Flange Facer is a heavy-duty, internally mounted flange facing machine developed for accurate on-site resurfacing of medium to large-diameter flanges from 6 to 40 inches (153-1000 mm). Designed for demanding field conditions, it restores damaged, worn, or corroded sealing faces to ASME B16.5 specifications with high repeatability.
Capable of machining flat face (FF), raised face (RF), RTJ grooves, and customized sealing profiles, the FI40 is widely applied in oil and gas facilities, power plants, chemical processing units, and offshore platforms. Its modular construction and portable design allow fast deployment, while pneumatic and electric servo drive options ensure flexibility across different jobsite environments.
Specifications
| Item | FI40P (Pneumatic) | FI40E (Electric) |
|---|---|---|
| Drive Type | Pneumatic Motor (2.2 Hp / 1.7 kW) | Panasonic Servo Motor (2.2 Hp / 1.7 kW) |
| Air Consumption | 1.8 m³/min @ 0.6 MPa | N/A |
| Voltage | N/A | 220-240 V, 50/60 Hz |
| Facing Diameter | 153-1000 mm (6"-40") | 153-1000 mm (6"-40") |
| ID Mounting Range | 145-910 mm (3.78"-28.35") | 145-910 mm (3.78"-28.35") |
| Feed Speed | 0.11,0.14,0.17,0.23,0.37,0.5 mm/rev | 0.11,0.14,0.17,0.23,0.37,0.5 mm/rev |
| Rotation Speed | 10-33 rpm | 0-40 rpm |
| Shipping Weight | 310 kg | 350 kg |
| Shipping Dimensions | 1250×640×605 mm | 1250×640×775 mm |
Product Advantages
Why Choose the FI40 Flange Facer?
- Extended Machining Capacity: Handles flange diameters from 6" to 40", minimizing the need for multiple facing machines on site.
- Flexible Drive Configurations: Available with Modec pneumatic motor for hazardous areas or Panasonic electric servo motor for precise, stable speed control.
- High-Precision Machining Performance: NSK precision bearings combined with a rigid "V" linear guide system ensure smooth cutting, excellent flatness, and consistent surface quality.
- Multiple Continuous Feed Rates: Six selectable feed settings produce uniform gramophone-style finishes, improving gasket sealing reliability.
- 360° Swivel Tool Post: Allows complex groove cutting and fine tool adjustments for various flange standards and sealing profiles.
- Portable Yet Rugged Design: Built for harsh industrial environments and supplied with a waterproof steel transport crate for safe handling and long service life.
- Three Adjustable Mounting Bases: Interchangeable internal mounting bases enable quick centering, accurate alignment, and efficient setup across different bore sizes.
Application Industries
- Oil & Gas (Pipeline flange repair, wellhead maintenance)
- Chemical Processing Plants
- Power Generation (Nuclear, thermal, hydro)
- Shipbuilding & Offshore Platforms
- Petrochemical Refineries
- Maintenance & Repair Services (MRO)
Flange Facer Machine Selection Table
| Model | Facing Diameter Range | ID/OD Mounting Range | Drive Type |
|---|---|---|---|
| FI14M | 1.07" to 14" (27.2-355.6 mm) | 1.07" to 10.63" (27.2-270 mm) | Manual |
| FE12P | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Pneumatic (1.0 kW) |
| FE12E | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Electric Servo motor (1.0 kW) |
| FI26P | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Pneumatic (1.0 kW) |
| FI26E | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Electric Servo motor (1.0 kW) |
| FI40P | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Pneumatic (1.7 kW) |
| FI40E | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Electric Servo motor (1.5 kW) |
| FI60P | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Pneumatic (3.0 kW) |
| FI60E | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Electric Servo motor (3.0 kW) |
| FI80P | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Pneumatic (3.0 kW) |
| FI80E | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Electric Servo motor (3.0 kW) |
Frequently Asked Questions
Q1: What is the maximum and minimum flange diameter the FI40 can machine?
A: The FI40 Flange Facer can machine flanges from 6 inches (153 mm) to 40 inches (1000 mm) in diameter, making it ideal for a wide range of industrial applications.
Q2: Is the machine suitable for both flat face (FF) and raised face (RF) flanges?
A: Yes, the FI40 is capable of machining flat face (FF), raised face (RF), ring type joint (RTJ), and other groove profiles such as V grooves and weld repairs, all in compliance with ASME standards.
Q3: What are the differences between the pneumatic and electric models?
A: FI40P (Pneumatic) uses a Modec air motor, suitable for explosive environments or sites without power supply. FI40E (Electric) features a Panasonic servo motor, offering precise speed control and ease of use in well-powered settings.
Q4: Can the FI40 be used in vertical or overhead positions?
A: Yes, thanks to its internally mounted design and modular structure, the FI40 can operate in any orientation, including vertical and overhead setups.
Q5: How long does it take to set up the machine on-site?
A: With its quick-set independent mounting bases and micro-adjustable jaws, setup typically takes 15-30 minutes, depending on the flange condition and operator experience.
