FE12 OD-Mounted Flange Facer with 0 to 12 Inch Machining Range and ASME-Compliant Spiral Surface
| MOQ: | 1 |
| Price: | 4500USD-18000USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
FE12
Facing Diameter:
0"–12" (0–305 Mm)
OD Mounting Range:
2"–17.7" (50–450 Mm)
Feed Speeds:
0.125 Mm/rev & 0.5 Mm/rev
Drive Type:
Pneumatic Motor,Panasonic Servo Motor
Highlight:
OD-mounted flange facer machine
,portable flange facer 12-inch
,flange machining tool with warranty
Product Description

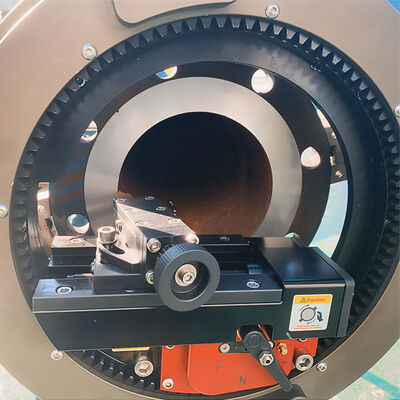

FE12 OD-Mounted Flange Facer – 0 to 12 Inch Machining Range
The FE12 Flange Facer is a high-performance, externally mounted flange machining solution designed to restore flatness and produce ASME-compliant spiral finishes on worn, corroded, or damaged flange faces. Perfectly suited for oil and gas, petrochemical, power plants, and offshore maintenance, this robust tool combines precision, portability, and durability.
Its OD-mounted design allows safe machining without entering pipelines, making it ideal for overhead, vertical, or confined-space operations. The FE12 can handle flange diameters from 0 to 12 inches (0-305 mm), delivering repeatable surface quality with minimal setup time.
Specifications
| Item | FE12P (Pneumatic) | FE12E (Electric) |
|---|---|---|
| Model | FE12P Flange Facing Machine | FE12E Flange Facing Machine |
| Drive Type | Pneumatic Motor, 1.34 Hp / 1.0 kW | Panasonic Servo Motor, 1.34 Hp / 1.0 kW |
| Power Supply | 1.3 m³/min @ 0.6 MPa | 220-240V, 50/60 Hz |
| Facing Diameter | 0-12 inches (0-305 mm) | 0-12 inches (0-305 mm) |
| OD Mounting Range | 2-17.7 inches (50-450 mm) | 2-17.7 inches (50-450 mm) |
| Feed Speeds | 0.125 mm/rev & 0.5 mm/rev | 0.125 mm/rev & 0.5 mm/rev |
| Rotation Speed | 45 RPM | 45 RPM |
| Shipping Weight | 94.5 Kg | 138 Kg |
| Shipping Dimensions | 830×620×580 mm (Plastic Box) | 1160×600×510 mm (Steel Box) |
Product Advantages
- ASME-Compliant Spiral Surface: Achieve precise gramophone-style finishes with dual feed rates: 0.125 mm/rev for fine surfaces and 0.5 mm/rev for spiral serrations. Fully meets or exceeds ASME B16.5 flange face standards.
- External Mounting for Safety and Accessibility: OD-mounted construction ensures safe operation while machining flanges in place. Perfect for limited-access, vertical, or overhead work environments.
- Flexible Drive Solutions: FE12P Pneumatic (1.34 Hp): Safe for ATEX and hazardous zones. FE12E Electric Servo (1.34 Hp): Provides precise, stable control in workshop settings.
- Durable, Field-Ready Design: Preloaded high-rigidity bearings, fast-set clamping arms, and rugged transport cases ensure long service life and reliable performance in demanding industrial environments.
- Precision Surface Quality: Produces 30-55 grooves per inch with Ra 3.2-12.5 µm surface roughness, ensuring optimal gasket sealing for critical flange applications.
Application Industries
- On-site flange resurfacing
- Maintenance in oil, gas, and petrochemical industries
- Power generation and offshore platform operations
- Repair of corroded, worn, or damaged flange faces
Flange Facer Machine Selection Table
| Model | Facing Diameter Range | ID/OD Mounting Range | Drive Type |
|---|---|---|---|
| FI14M | 1.07" to 14" (27.2-355.6 mm) | 1.07" to 10.63" (27.2-270 mm) | Manual |
| FE12P | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Pneumatic (1.0 kW) |
| FE12E | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Electric Servo motor (1.0 kW) |
| FI26P | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Pneumatic (1.0 kW) |
| FI26E | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Electric Servo motor (1.0 kW) |
| FI40P | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Pneumatic (1.7 kW) |
| FI40E | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Electric Servo motor (1.5 kW) |
| FI60P | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Pneumatic (3.0 kW) |
| FI60E | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Electric Servo motor (3.0 kW) |
| FI80P | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Pneumatic (3.0 kW) |
| FI80E | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Electric Servo motor (3.0 kW) |
