FI26 Portable Flange Facer – ID-Mounted Flange Facing Machine for 120–700 mm On-Site Repair with Pneumatic / Electric Servo Drive
| MOQ: | 1 |
| Price: | 5000USD-20000USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
FI26
Document
Mounting Type:
ID-Mounted
Drive Type:
Pneumatic / Electric Servo
Highlight:
portable flange facer machine
,ID-mounted flange facing tool
,flange facer for on-site repair
Product Description
FI26 Flange Facer – Portable ID-Mounted Flange Facing Machine for On-Site Repair (120–700 mm)
FI26 Internally Mounted Flange Facer
Portable ID-Mounted Flange Facing Machine for On-Site Repair (120-700 mm)
Product Overview

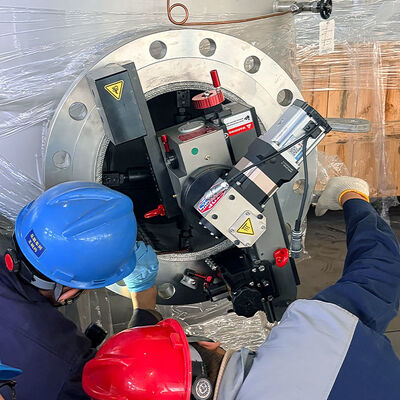

The FI26 Internally Mounted Flange Facer is a robust and high-accuracy portable flange facing machine developed for on-site flange resurfacing, sealing face correction, and groove restoration. Designed to mount securely inside the flange bore, the FI26 covers a wide machining range from 120 to 700 mm (4.72"-27.56"), making it suitable for both medium and large-diameter flanges.
This ID-mounted flange facing machine is engineered to restore flat face (FF), raised face (RF), ring type joint (RTJ), tongue and groove (T&G), lens ring, and special sealing profiles, ensuring surface finishes compliant with ASME B16.5 requirements. Its rigid construction, precision bearing system, and flexible drive configurations make the FI26 a reliable solution for demanding field maintenance in oil & gas, petrochemical, power generation, marine, and offshore industries.
Key Advantages
ID-Mounted, Field-Ready Design
The internal mounting system provides stable, vibration-free clamping, allowing safe and accurate machining in horizontal, vertical, or overhead positions—ideal for confined job sites.
High Machining Accuracy
Equipped with NSK high-precision bearings and linear guideways, the FI26 maintains excellent rigidity, ensuring consistent cutting accuracy and superior surface finish quality.
Dual Feed Rate System
Selectable feed speeds of 0.125 mm/rev and 0.5 mm/rev enable both smooth finishes and phonographic spiral serrations to meet standard sealing specifications.
Wide Flange Application Range
Capable of machining FF, RF, RTJ, T&G, compact flanges, lens ring grooves, and customized sealing geometries.
Adjustable Mounting Bases
Three interchangeable ID-mount bases with micro-adjustable jaws ensure fast centering and easy alignment across various bore sizes.
360° Swivel Tool Post
Allows multi-angle cutting operations, complex groove machining, and improved flexibility for different flange standards.
Built for Harsh Environments
Designed for long-term use in offshore platforms, refineries, chemical plants, and power stations, even under demanding site conditions.
Technical Specifications
| Item | FI26P (Pneumatic) | FI26E (Electric) |
|---|---|---|
| Drive Type | Pneumatic Motor (1.34 Hp / 1.0 kW) | Panasonic Servo Motor (1.34 Hp / 1.0 kW) |
| Air Consumption | 1.3 m³/min @ 0.6 MPa | N/A |
| Voltage | N/A | 220-240 V, 50/60 Hz |
| Facing Diameter | 120-700 mm (4.72"-27.56") | 120-700 mm (4.72"-27.56") |
| ID Mounting Range | 96-720 mm (3.78"-28.35") | 96-720 mm (3.78"-28.35") |
| Feed Speed | 0.125 & 0.5 mm/rev | 0.125 & 0.5 mm/rev |
| Rotation Speed | 45 rpm | 45 rpm |
| Shipping Weight | 161 kg | 177 kg |
| Shipping Dimensions | 865×600×600 mm | 865×600×600 mm |
Primary Application Sectors
The FI26 portable flange facing machine is widely applied in:
- Oil & gas pipeline installation and shutdown maintenance
- Refinery and petrochemical plant overhauls
- Power generation facilities (thermal, nuclear, hydro)
- Offshore platforms and marine engineering
- Pressure vessels, boilers, and heat exchangers
- Industrial fabrication and repair workshops
Its internal mounting structure makes it particularly suitable for restricted spaces and complex on-site repair environments.
Flange Facer Machine Selection Table
| Model | Facing Diameter Range | ID/OD Mounting Range | Drive Type |
|---|---|---|---|
| FI14M | 1.07" to 14" (27.2-355.6 mm) | 1.07" to 10.63" (27.2-270 mm) | Manual |
| FE12P | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Pneumatic (1.0 kW) |
| FE12E | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Electric Servo motor (1.0 kW) |
| FI26P | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Pneumatic (1.0 kW) |
| FI26E | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Electric Servo motor (1.0 kW) |
| FI40P | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Pneumatic (1.7 kW) |
| FI40E | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Electric Servo motor (1.5 kW) |
| FI60P | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Pneumatic (3.0 kW) |
| FI60E | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Electric Servo motor (3.0 kW) |
| FI80P | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Pneumatic (3.0 kW) |
| FI80E | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Electric Servo motor (3.0 kW) |
