FI26 Internally Mounted Portable Flange Facer with 120-700 mm Machining Diameter and Pneumatic / Electric Servo Drive
| MOQ: | 1 |
| Price: | 5000USD-20000USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
FI26
Document
Mounting Type:
ID-Mounted
Drive Type:
Pneumatic / Electric Servo
Highlight:
internally mounted flange facer machine
,portable flange facer 4.72-27.56 inches
,flange facing machine with warranty
Product Description

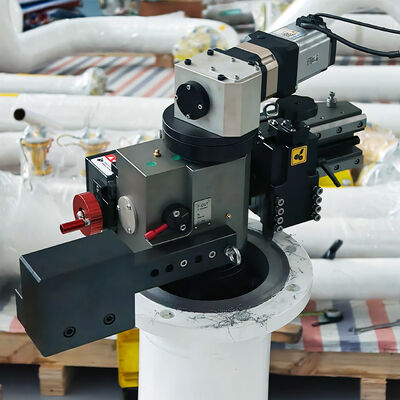

FI26 Flange Facer – Internally Mounted Portable Flange Facing Machine (4.72"–27.56")
The FI26 Flange Facer is a robust, internally mounted portable machining tool designed for accurate on-site flange resurfacing and sealing surface restoration. Covering a machining diameter of 120-700 mm (4.72"-27.56"), it provides dependable performance for repairing worn, scratched, or corroded flanges in demanding industrial environments.
Engineered to machine FF, RF, RTJ, T&G, lens ring, compact flanges, and customized groove profiles, the FI26 ensures surface finishes that meet ASME B16.5 requirements. With its reinforced body, smooth feed mechanism, and multiple drive configurations, this machine is well-suited for long-duration field work in refineries, power plants, offshore structures, and heavy process facilities.
Key Advantages
- Modular & Lightweight Build: Segmented structure simplifies transport and setup, enabling quick deployment in field conditions.
- High-Accuracy Cutting System: Premium NSK bearings combined with precision linear guides provide vibration-free operation for uniform machining quality.
- Two Feed Modes for Surface Control: Choose between 0.125 mm/rev for fine finishing or 0.5 mm/rev for serrated sealing surfaces.
- Adaptable Drive Choices: Select either a pneumatic drive or a Panasonic electric servo motor—ideal for varied site restrictions and power requirements.
- Multi-Profile Machining: Capable of preparing all common sealing faces and customized profiles without changing the main base assembly.
- Adjustable ID Mounting Bases: Three internal mounting bases with micro-adjustable jaws make centering fast, intuitive, and highly accurate.
- 360° Universal Tool Post: Supports angle adjustments for special grooves and deep profile cutting.
Specifications
| Item | FI26P (Pneumatic) | FI26E (Electric) |
|---|---|---|
| Drive Type | Pneumatic Motor (1.34 Hp / 1.0 kW) | Panasonic Servo Motor (1.34 Hp / 1.0 kW) |
| Air Consumption | 1.3 m³/min @ 0.6 MPa | N/A |
| Voltage | N/A | 220-240 V, 50/60 Hz |
| Facing Diameter | 120-700 mm (4.72"-27.56") | 120-700 mm (4.72"-27.56") |
| ID Mounting Range | 96-720 mm (3.78"-28.35") | 96-720 mm (3.78"-28.35") |
| Feed Speed | 0.125 & 0.5 mm/rev | 0.125 & 0.5 mm/rev |
| Rotation Speed | 45 rpm | 45 rpm |
| Shipping Weight | 161 kg | 177 kg |
| Shipping Dimensions | 865×600×600 mm | 865×600×600 mm |
Primary Application Sectors
The FI26 is widely chosen by maintenance and construction teams across:
- Oil & gas pipeline projects and refinery turnaround operations
- Chemical and petrochemical processing plants
- Thermal, hydro, and nuclear power stations
- Shipyards, offshore platforms, and subsea equipment maintenance
- Industrial fabrication and machinery repair workshops
- Boiler and pressure vessel manufacturing industries
Its internal-mount configuration makes the FI26 particularly effective in restricted-access locations, vertical pipes, and complex jobsite conditions.
Flange Facer Machine Selection Table
| Model | Facing Diameter Range | ID/OD Mounting Range | Drive Type |
|---|---|---|---|
| FI14M | 1.07" to 14" (27.2-355.6 mm) | 1.07" to 10.63" (27.2-270 mm) | Manual |
| FE12P | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Pneumatic (1.0 kW) |
| FE12E | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Electric Servo motor (1.0 kW) |
| FI26P | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Pneumatic (1.0 kW) |
| FI26E | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Electric Servo motor (1.0 kW) |
| FI40P | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Pneumatic (1.7 kW) |
| FI40E | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Electric Servo motor (1.5 kW) |
| FI60P | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Pneumatic (3.0 kW) |
| FI60E | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Electric Servo motor (3.0 kW) |
| FI80P | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Pneumatic (3.0 kW) |
| FI80E | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Electric Servo motor (3.0 kW) |
