FI26 Internally Mounted Portable Flange Facer with 120-700 mm Machining Capacity and Pneumatic/Electric Servo Drive
| MOQ: | 1 |
| Price: | 5000USD-20000USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
FI26
Document
Mounting Type:
ID-Mounted
Drive Type:
Pneumatic / Electric Servo
Highlight:
internally mounted portable flange facer
,portable flange facer with warranty
,flange facing machine for large diameters
Product Description

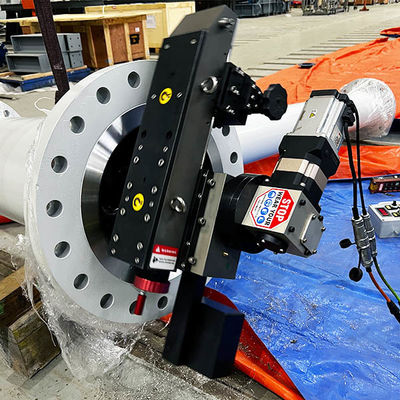

FI26 Flange Facer – Internally Mounted Portable Flange Facing Machine (4.72"–27.56")
The FI26 Flange Facer is a high-precision, internally mounted portable flange facing machine engineered for on-site flange resurfacing and sealing face restoration. With a machining capacity range of 120-700 mm (4.72"-27.56"), the FI26 delivers exceptional accuracy for repairing damaged, worn, or corroded flanges across multiple industries.
Designed for flat face (FF), raised face (RF), ring-type joint (RTJ), tongue & groove (T&G) and other special sealing profiles, this machine ensures all finishes comply with ASME B16.5 standards. Thanks to its rugged structure, 360° adjustable tool post, and multi-motor drive options, the FI26 is ideal for heavy field applications in power plants, refineries, offshore platforms, and process industries.
Product Advantages
- Compact Modular Design: Lightweight, modular construction allows fast setup and disassembly, reducing on-site downtime.
- Precision & Rigidity: NSK high-precision bearings and linear guideways maintain superior stability for consistent cutting results.
- Dual Feed Speeds: Two feed rates--0.125 mm/rev and 0.5 mm/rev--deliver smooth surface or spiral serrated finishes that meet standard sealing requirements.
- Flexible Drive Options: Available with pneumatic or Panasonic electric servo motor to match site conditions and power availability.
- Versatile Machining Capabilities: Machines FF, RF, RTJ, T&G, lens ring, compact flanges, and custom groove profiles.
- Adjustable Mounting Bases: Three ID-mount base sizes with micro-adjust jaws ensure easy centering and operator-friendly alignment.
- 360° Swivel Tool Post: Supports multi-angle cutting and complex groove machining.
- Reliable in Harsh Environments: Engineered for offshore platforms, petrochemical plants, and power station maintenance.
Specifications
| Item | FI26P (Pneumatic) | FI26E (Electric) |
|---|---|---|
| Drive Type | Pneumatic Motor (1.34 Hp / 1.0 kW) | Panasonic Servo Motor (1.34 Hp / 1.0 kW) |
| Air Consumption | 1.3 m³/min @ 0.6 MPa | N/A |
| Voltage | N/A | 220-240 V, 50/60 Hz |
| Facing Diameter | 120-700 mm (4.72"-27.56") | 120-700 mm (4.72"-27.56") |
| ID Mounting Range | 96-720 mm (3.78"-28.35") | 96-720 mm (3.78"-28.35") |
| Feed Speed | 0.125 & 0.5 mm/rev | 0.125 & 0.5 mm/rev |
| Rotation Speed | 45 rpm | 45 rpm |
| Shipping Weight | 161 kg | 177 kg |
| Shipping Dimensions | 865×600×600 mm | 865×600×600 mm |
Application Industries
- Oil & Gas pipeline construction and refinery maintenance
- Chemical and petrochemical processing facilities
- Power generation plants (nuclear, thermal, and hydro)
- Marine and offshore platform operations
- Industrial equipment repair and fabrication workshops
- Pressure vessel and boiler construction sectors
Its internal mounting system makes it ideal for confined spaces and complex field environments.
Flange Facer Machine Selection Table
| Model | Facing Diameter Range | ID/OD Mounting Range | Drive Type |
|---|---|---|---|
| FI14M | 1.07" to 14" (27.2-355.6 mm) | 1.07" to 10.63" (27.2-270 mm) | Manual |
| FE12P | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Pneumatic (1.0 kW) |
| FE12E | 0-12" (0-305 mm) | 2-17.7" (50-450 mm) | Electric Servo motor (1.0 kW) |
| FI26P | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Pneumatic (1.0 kW) |
| FI26E | 4.72-27.56" (120-700 mm) | 3.78-28.35" (96-720 mm) | Electric Servo motor (1.0 kW) |
| FI40P | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Pneumatic (1.7 kW) |
| FI40E | 6-40" (153-1000 mm) | 5.7-35.8" (145-910 mm) | Electric Servo motor (1.5 kW) |
| FI60P | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Pneumatic (3.0 kW) |
| FI60E | 12.6-59" (320-1500 mm) | 11.4-57" (290-1450 mm) | Electric Servo motor (3.0 kW) |
| FI80P | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Pneumatic (3.0 kW) |
| FI80E | 26.34-80" (670-2032 mm) | 31.1-74.8" (790-1900 mm) | Electric Servo motor (3.0 kW) |
