660–830 mm Pipe Cutting and Beveling Machine – Heavy-Duty Cold Cutting Tool with Multiple Drive Options
| MOQ: | 1 |
| Price: | 3500USD-10500USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
OD830
Document
Drive Type:
Metabo Electric Motor Or Pneumatic Motor Or Hydraulic Motor
Working Range (OD):
660–830 Mm (26"–32")
Material:
Steel Body And Aluminum Body
Toolbit:
HSS
Tool Slide:
3"
Locator Pads:
4
Application Industries:
Oil & Gas, Nuclear, Shipbuilding, Offshore, Etc.
Highlight:
660–830 mm Pipe Cutting and Beveling Machine
,Heavy-Duty Cold Cutting Tool
,Multiple Drive Options Clamshell Pipe Beveling Machine
Product Description
26–32 Inch Pipe Cutting and Beveling Machine – Heavy-Duty Cold Cutting Tool
The OD830 Pipe Cutting and Beveling Machine is engineered for large-diameter pipes ranging from 26 to 32 inches (660-830 mm). Its robust split-frame clamshell design ensures secure mounting and maximum stability, allowing operators to perform precise cutting and beveling even in challenging industrial environments.
This heavy-duty cold cutting system produces consistent bevel profiles and smooth facing without sparks or heat-affected zones, preserving pipe integrity and improving weld quality. The OD830 is particularly suited for oil and gas pipelines, shipbuilding projects, and large-scale industrial plants, where accuracy and reliability are essential.
Equipped with versatile tooling and multiple drive options—including pneumatic, hydraulic, and electric systems—the OD830 adapts easily to various site conditions and material types. Its advanced clamshell design reduces setup time while enhancing operator safety, making it a dependable solution for critical pipeline fabrication, maintenance, and on-site repairs.
Specifications
| Item | ODM830 (Electric) | ODP830 (Pneumatic) | ODH830 (Hydraulic) |
|---|---|---|---|
| Drive Type | Metabo Electric Motor | Pneumatic Motor | Hydraulic Motor |
| Power | 3.22 Hp / 2.4 Kw | 3.75 Hp / 2.76 Kw | 10 Hp / 7.5 Kw |
| Air Consumption | N/A | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | 220-240 V, 50/60 Hz | N/A | 380 V, 50/60 Hz |
| Working Range (OD) | 660-830 mm (26"-32") | 660-830 mm (26"-32") | 660-830 mm (26"-32") |
| Wall Thickness (Standard) | ≤30 mm | ≤30 mm | ≤30 mm |
| Wall Thickness (Heavy Wall) | 200 mm | 200 mm | 200 mm |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev | 0.083 mm/rev |
Product Advantages
Why Choose the OD830 Pipe Cutting and Beveling Machine?
High-Performance Cutting
Ensures clean, burr-free pipe edges for welding and assembly.
Sturdy and Reliable
Built with reinforced materials to endure harsh field conditions.
Wider Pipe Coverage
Capable of machining pipes up to 830 mm OD for large-scale projects.
Accessory Expansion
Can be equipped with a range of accessories to maximize versatility.
Operator Friendly
Lightweight body with ergonomic design ensures easier handling on-site.
Selection Guide
Please follow the guidelines below or provide us with your specific requirements so that we can offer you the most professional model selection advice.
1. Choose the Clamshell Material
The OD series clamshell pipe cutting and beveling machines consist of a main body ring and a rotating gear ring. The gear ring is made of heat-treated alloy steel, while the main body ring can be selected in either aluminum or steel.
AOD model (Aluminum): Recommended for on-site machining, especially where lifting equipment is not available.
OD model (Steel): Offers higher strength and longer service life, suitable for heavy-duty and long-term applications.
For model OD560 and below, the machine can be split into two halves for manual handling, regardless of whether it is aluminum or steel. For model OD610 and above, if manual handling is required, we recommend the aluminum body.
2. Choose the Drive Type
ODM (Electric): Suitable for more than 80% of applications. Requires 220V-50Hz power supply and is convenient for on-site use.
ODP (Pneumatic): Suitable for sites with explosion-proof requirements. However, performance may be affected if the air supply is far from the site or if air pressure is low.
ODH (Hydraulic): Recommended for model OD830 and above to ensure greater power. Please note, however, that hydraulic stations are costly and inconvenient to transport.
3. Confirm Pipe Wall Thickness
For wall thickness ≤30 mm, use the standard tool slide. For wall thickness >30 mm, use the heavy wall tool slide, as different toolbit sizes are required.
4. Confirm Bevel Angle and Bevel Type
The bevel angle and type are required to select suitable toolbits, such as V-type, J-type, or compound bevels.
5. Confirm Pipe Material and Quantity
Pipe material and quantity are necessary to determine the proper toolbits and the number of toolbits required.
Pipe Cutting and Beveling Machine Selection Table
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
|---|---|---|---|
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
| OD-508 | 355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |
OD830 Pipe Cutting and Beveling Machine Application Industries

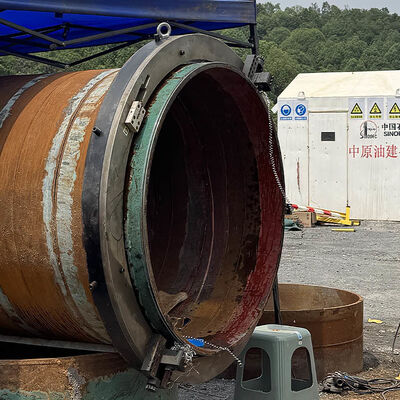

Extensively used in large-diameter oil pipelines, this machine ensures reliable cold cutting without distortion. In nuclear reactor facilities, it guarantees weld integrity under strict safety codes. Port ship maintenance teams apply it for oversized pipe joints. In chemical reactors, it handles corrosion-resistant steel machining. It is also effective in offshore engineering projects, solving problems of heavy pipe beveling in remote areas.
