24–30 Inch Pipe Cutting and Beveling Machine with Precision Cold Cutting and Multiple Drive Options
| MOQ: | 1 |
| Price: | 2850USD-8550USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
OD762
Document
Drive Type:
Metabo Electric Motor Or Pneumatic Motor Or Hydraulic Motor
Working Range (OD):
600–762 Mm (24"–30")
Material:
Steel Body And Aluminum Body
Toolbit:
HSS
Tool Slide:
3"
Gear Ring Material:
Heat-treated Alloy Steel
Pipe Material Compatibility:
Carbon, Stainless, Alloy Steel
Highlight:
24–30 Inch Pipe Cutting and Beveling Machine
,Precision Cold Cutting Pipe Cutting and Beveling Machine
,Multiple Drive Options Clamshell Pipe Beveling Machine
Product Description
OD762 Pipe Cutting and Beveling Machine – Precision Cold Pipe Cutting Solution
The OD762 Pipe Cutting and Beveling Machine is a precision-engineered cold cutting system designed for large-diameter pipes with an outer diameter range of 24 to 30 inches (600-762 mm). Built for continuous industrial use, the machine delivers stable and accurate machining performance even in harsh operating environments.

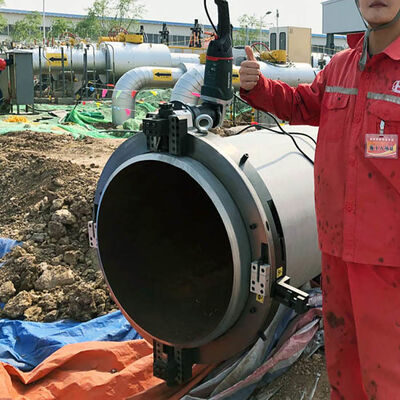

Equipped with a robust split-frame clamshell design, the OD762 can be securely installed around the pipe, allowing cutting and beveling operations to be carried out directly on-site. Its cold cutting process eliminates sparks, excessive heat, and thermal distortion, helping ensure consistent weld preparation and improved joint quality.
The OD762 supports a wide range of machining functions, including beveling, facing, boring, and compound angle preparation, enabling multiple operations to be completed in a single setup. Available with electric, pneumatic, or hydraulic drive systems, the machine can be configured to suit different site conditions and power availability. This combination of precision, versatility, and reliability makes the OD762 an ideal solution for pipeline construction, refinery maintenance, and offshore fabrication projects.
Specifications
| Item | ODM762 (Electric) | ODP762 (Pneumatic) | ODH762 (Hydraulic) |
|---|---|---|---|
| Drive Type | Metabo Electric Motor | Pneumatic Motor | Hydraulic Motor |
| Power | 3.22 Hp / 2.4 Kw | 3.75 Hp / 2.76 Kw | 10 Hp / 7.5 Kw |
| Air Consumption | N/A | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | 220-240 V, 50/60 Hz | N/A | 380 V, 50/60 Hz |
| Working Range (OD) | 600-762 mm (24"-30") | 600-762 mm (24"-30") | 600-762 mm (24"-30") |
| Wall Thickness (Standard) | ≤30 mm | ≤30 mm | ≤30 mm |
| Wall Thickness (Heavy Wall) | 200 mm | 200 mm | 200 mm |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev | 0.083 mm/rev |
Product Advantages
Why Choose the OD762 Pipe Cutting and Beveling Machine?
- Precise Beveling Process: Creates consistent bevel angles for strong and reliable pipe joints.
- Material Adaptability: Processes carbon steel, stainless steel, and alloy steel pipes efficiently.
- Clamshell Split Design: Easy to mount on in-service pipelines without full disassembly.
- Extended Pipe Range: Handles pipe sizes up to 762 mm OD, serving energy and heavy industry needs.
- Versatile Drive Choices: Available in pneumatic, electric, and hydraulic drive systems.
Selection Guide
Please follow the guidelines below or provide us with your specific requirements so that we can offer you the most professional model selection advice.
1. Choose the Clamshell Material
The OD series clamshell pipe cutting and beveling machines consist of a main body ring and a rotating gear ring. The gear ring is made of heat-treated alloy steel, while the main body ring can be selected in either aluminum or steel.
AOD model (Aluminum): Recommended for on-site machining, especially where lifting equipment is not available.
OD model (Steel): Offers higher strength and longer service life, suitable for heavy-duty and long-term applications.
For model OD560 and below, the machine can be split into two halves for manual handling, regardless of whether it is aluminum or steel. For model OD610 and above, if manual handling is required, we recommend the aluminum body.
2. Choose the Drive Type
ODM (Electric): Suitable for more than 80% of applications. Requires 220V-50Hz power supply and is convenient for on-site use.
ODP (Pneumatic): Suitable for sites with explosion-proof requirements. However, performance may be affected if the air supply is far from the site or if air pressure is low.
ODH (Hydraulic): Recommended for model OD830 and above to ensure greater power. Please note, however, that hydraulic stations are costly and inconvenient to transport.
3. Confirm Pipe Wall Thickness
For wall thickness ≤30 mm, use the standard tool slide. For wall thickness >30 mm, use the heavy wall tool slide, as different toolbit sizes are required.
4. Confirm Bevel Angle and Bevel Type
The bevel angle and type are required to select suitable toolbits, such as V-type, J-type, or compound bevels.
5. Confirm Pipe Material and Quantity
Pipe material and quantity are necessary to determine the proper toolbits and the number of toolbits required.
Pipe Cutting and Beveling Machine Selection Table
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
|---|---|---|---|
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
| OD-508 | 355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |
OD762 Pipe Cutting and Beveling Machine Application Industries
OD762 supports petrochemical refineries, offering consistent bevel angles for secure joints. In gas liquefaction plants, it works on cryogenic alloy pipelines. Marine shipbuilding yards rely on it for hull and piping systems. Mining processing plants use it for high-strength steel pipes. In industrial boiler facilities, it overcomes the difficulties of thick-wall pipe machining on-site.
Exhibition Photos
MT Portable Machine, as a professional manufacturer of on-site machining equipment, participates in exhibitions worldwide.
