High Accuracy 3"–8" Pipe Cutting and Beveling Machine with Portable Split-Frame Cold Cutting Clamshell Design
| MOQ: | 1 |
| Price: | 1400USD-5200USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
OD230
Document
Drive Type:
Metabo Electric Motor Or Pneumatic Motor Or Hydraulic Motor
Working Range (OD):
80 –230 Mm (3"– 8")
Material:
Steel Body And Aluminum Body
Cutting Method:
Cold Cutting
Model Variants:
18 Models For OD 18–1230 Mm
Highlight:
Portable pipe cutting machine 3-8 inches
,Split-frame clamshell beveling machine
,Cold cutting pipe beveling solution
Product Description
High Accuracy Pipe Cutting And Beveling Machine 3"– 8" - Portable Split-Frame Cold Cutting Clamshell Solution

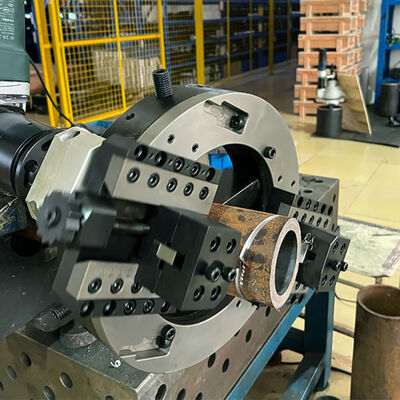

The OD230 Pipe Cutting and Beveling Machine is a rugged, portable system designed for precise cold cutting and bevel preparation in both field and workshop settings. Its split-frame clamshell structure allows fast mounting around in-service pipelines, ensuring stability, safety, and minimal downtime. Lightweight yet robust, the machine balances portability with strong cutting performance for efficient pipe machining.
Covering pipe diameters from 0.71" to 48.43" (18-1230 mm), the OD230 is widely used in oil and gas, power generation, shipbuilding, and chemical industries. Cold cutting technology replaces traditional flame methods, eliminating heat-affected zones and material distortion to deliver precise, reliable weld-ready surfaces.
The machine is compatible with multiple drive options—pneumatic, hydraulic, or electric—allowing flexibility according to site power availability and safety regulations. Equipped with interchangeable tooling, it supports V and J bevels, facing, boring, and chamfering, providing versatile and consistent performance for complex pipeline preparation.
Specifications
| Item | ODM230 (Electric) | ODP230 (Pneumatic) | ODH230 (Hydraulic) |
|---|---|---|---|
| Drive Type | Metabo Electric Motor | Pneumatic Motor | Hydraulic Motor |
| Power | 3.22 Hp / 2.4 Kw | 3.75 Hp / 2.76 Kw | 10 Hp / 7.5 Kw |
| Air Consumption | N/A | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | 220-240 V, 50/60 Hz | N/A | 380 V, 50/60 Hz |
| Working Range (OD) | 80-230 mm (3"-8") | 80-230 mm (3"-8") | 80-230 mm (3"-8") |
| Wall Thickness (Standard) | ≤30 mm | ≤30 mm | ≤30 mm |
| Wall Thickness (Heavy Wall) | 200 mm | 200 mm | 200 mm |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev | 0.083 mm/rev |
Product Advantages
Why Choose the OD230 Pipe Cutting and Beveling Machine?
- Cold Cutting for Precision Welds: The OD230 adopts a cold cutting process that eliminates thermal distortion and prevents material hardening, ensuring clean and accurate weld joints every time.
- Versatility Across Materials: Engineered to handle carbon steel, stainless steel, and alloy steel pipes, making it suitable for diverse industrial applications.
- Multiple Tooling Options: Supports V and J bevels, facing, boring, and chamfering with interchangeable tool bits, giving operators maximum flexibility.
- Wide Cutting Range: Eighteen standard models cover pipe sizes from 0.71" to 48.43" (18-1230 mm), meeting the requirements of both small and large diameter projects.
- Flexible Drive Choices: Available with pneumatic, hydraulic, or electric drives to match different on-site working conditions and customer preferences.
- Strong Yet Lightweight Body: Choose between an aluminum body for portability or a steel body for maximum durability and extended service life.
- Expandable with Accessories: A variety of accessories can be added to enhance performance and extend the machine's cutting and beveling capabilities.
- Easy Clamshell Mounting: The split-frame clamshell design allows the machine to separate into two halves, enabling quick installation on in-service pipelines without disassembly.
Model Designation
Pipe Cutting and Beveling Machine Selection Table
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
|---|---|---|---|
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
| OD-508 | 355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |
Application Industries
The OD230 Pipe Cutting and Beveling Machine is trusted across a wide range of industries for on-site and workshop pipe preparation. Its cold cutting technology, portability, and precision make it ideal for demanding applications where heat, sparks, or material distortion must be avoided:
- Oil & Gas Pipelines - Perform safe, accurate cuts on high-pressure lines during maintenance or refinery shutdowns.
- Offshore and Subsea Engineering - Reliable for platform and subsea pipe work where sparks and thermal effects are restricted.
- Power Generation Facilities - Ensure precise weld-ready surfaces for scheduled outages and critical repairs.
- Shipbuilding and Marine Projects - Perfect for confined spaces and heavy alloy pipe beveling with consistent accuracy.
- Petrochemical and Chemical Plants - Maintain pipeline integrity with distortion-free cold cutting and beveling.
Compact, rugged, and easy to transport, the OD230 delivers reliable performance for both field operations and workshop settings, providing operators with a versatile solution for diverse pipe machining tasks.
