18"–24" Split Frame Pipe Cutting Machine with Cold Cutting Technology and Split Frame Advantage for Precision Pipeline Maintenance
| MOQ: | 1 |
| Price: | 2100USD-6300USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
OD610
Document
Drive Type:
Metabo Electric Motor Or Pneumatic Motor Or Hydraulic Motor
Working Range (OD):
457–610 Mm (18"–24")
Cutting Method:
Orbital Cutting
Highlight:
24" Split Frame Pipe Cutting Machine
,24" cold cutters for pipe
,18" cold cutters for pipe
Product Description
OD-610 Split Frame Pipe Cutting Machine
The OD-610 split frame pipe cutting machine handles pipe diameters from 457 mm to 610 mm. It combines portable design with robust clamping strength, ensuring precise onsite machining. Cold cutting technology provides spark-free and heat-free operation, making it safe for hazardous environments. The OD-610 is widely applied in chemical plants, nuclear facilities, shipyards, and power generation industries. Supporting V, J, and compound beveling, it allows accurate weld-end preparation and efficient pipe replacement.
Specifications
| Item | ODM610 (Electric) | ODP610 (Pneumatic) | ODH610 (Hydraulic) |
|---|---|---|---|
| Drive Type | Metabo Electric Motor | Pneumatic Motor | Hydraulic Motor |
| Power | 3.22 Hp / 2.4 Kw | 3.75 Hp / 2.76 Kw | 10 Hp / 7.5 Kw |
| Air Consumption | N/A | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | 220-240 V, 50/60 Hz | N/A | 380 V, 50/60 Hz |
| Working Range (OD) | 457-610 mm (18"-24") | 457-610 mm (18"-24") | 457-610 mm (18"-24") |
| Wall Thickness (Standard) | ≤30 mm | ≤30 mm | ≤30 mm |
| Wall Thickness (Heavy Wall) | 200 mm | 200 mm | 200 mm |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev | 0.083 mm/rev |
Key Features
- Cold Cutting Technology: Eliminates heat-induced material changes, delivering clean burr-free ends that require no additional finishing
- Split Frame Advantage: Clamshell design enables rapid installation on active pipelines without system shutdown
- Robust and Lightweight Options: Steel construction for stability or aluminum for portability in confined spaces
- Versatile Drive and Accessory Support: Configures for beveling, facing, and counterboring operations with multiple drive systems
Power Options
ODM (Electric)
Metabo Electric Motor, Model: W24-230MVT, 2.4 Kw (3.22 Hp) / 10 A, Power Supply: 220-240 V, 50/60 Hz. Made in Germany. Suitable for more than 80% of applications.
ODP (Pneumatic)
Pneumatic Motor, 2.76 Kw (3.75 Hp), Air Consumption: 2.8 m³/min @ 0.6 Mpa. Suitable for sites with explosion-proof requirements.
ODH (Hydraulic)
Hydraulic Motor with BMR series models. Hydraulic Power Unit Model: HPU-10E, Motor power: 7.5 Kw (10 Hp), Power supply: 3 Ph, 380-440 V+N, 50/60 Hz. Recommended for greater power requirements.
Tool Slide Options
3" Standard Tool Slide Kit
For model OD168-OD762. Achieve cut/bevel up to 30 mm wall thickness in one pass. Max. Travel: 75 mm.
4" Standard Tool Slide Kit
For model OD830-OD1230. Achieve cut/bevel up to 30 mm wall thickness in one pass. Max. Travel: 100 mm.
Heavy Wall Tool Slides
3" and 4" versions available. Install 25 mm width tool bits that can cut/bevel tubes of any wall thickness.
Specialized Tool Slides
Tracking Tool Slide for deformed pipes and Counterboring Tool Slide for precision internal diameter work.
Split Frame Pipe Cutting Machine Selection Table
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
|---|---|---|---|
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
| OD-508 | 355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |
Weld Groove Types
Equipped with different tool slides and tool bits to process V-grooves, J-grooves, and compound grooves, as well as perform internal beveling and boring operations.

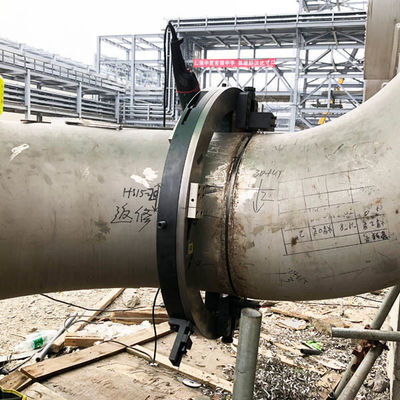

Onsite Applications
The OD610 handles pipes from 457mm to 610mm, serving critical roles in natural gas distribution, offshore engineering, and thermal power stations. Its cold-cutting capability avoids microstructural changes, ensuring superior weld quality for high-stress applications. In subsea and marine projects, the machine supports pipeline laying and repair operations.
After-Sales Service
Product Warranty
12-month warranty from shipment date. Manufacturing defects addressed promptly to ensure reliable performance.
Spare Parts Supply
Comprehensive inventory with orders processed and dispatched within 2 business days for minimal downtime.
Technical Support & Product Guidance
Detailed instruction manual and operation videos provided. Technical team offers real-time video guidance and remote troubleshooting for safe and efficient operation.
