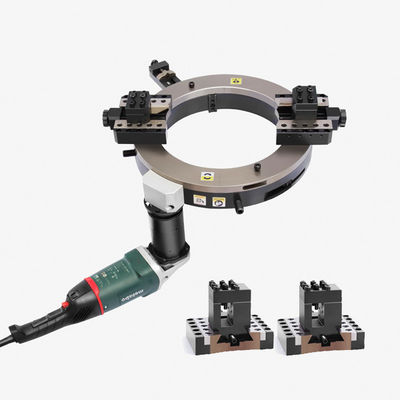

6"–12" Split Frame Pipe Cutting Machine with Heavy Duty Construction and Versatile Tooling for Precision Cold Cutting
| MOQ: | 1 |
| Price: | 1600USD-4800USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
OD325
Document
Drive Type:
Metabo Electric Motor Or Pneumatic Motor Or Hydraulic Motor
Working Range (OD):
159–325 Mm (6"–12")
Bevel Types Supported:
V Bevel, J Bevel, Facing, Boring, Chamfering
Highlight:
12" Split Frame Pipe Cutting Machine
,12" cold cutting equipment
,Heavy Duty cold cutting equipment
Product Description
6"–12" Split Frame Pipe Cutting Machine Heavy Duty Versatile Tooling
Split Frame Pipe Cutting Machine OD325 for Precision Cold Cutting and Pipeline Maintenance
The OD-325 split frame pipe cutting machine handles pipelines from 200 mm to 325 mm in diameter. Designed with heavy-duty clamshell construction, it maintains stability under demanding onsite conditions. The machine adopts cold cutting technology, preventing sparks and heat effects while delivering precise weld-end preparation. It is widely used in nuclear plants, oil refineries, ship repair yards, and chemical processing projects. The OD-325 supports multiple beveling angles including V, J, and compound preparations, offering flexibility for different welding requirements. With its strong frame, versatile tooling, and easy installation, this model is an essential solution for both pipeline construction and critical maintenance applications.
Specifications
| Item | ODM325 (Electric) | ODP325 (Pneumatic) | ODH325 (Hydraulic) |
|---|---|---|---|
| Drive Type | Metabo Electric Motor | Pneumatic Motor | Hydraulic Motor |
| Power | 3.22 Hp / 2.4 Kw | 3.75 Hp / 2.76 Kw | 10 Hp / 7.5 Kw |
| Air Consumption | N/A | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | 220-240 V, 50/60 Hz | N/A | 380 V, 50/60 Hz |
| Working Range (OD) | 159-325 mm (6"-12") | 159-325 mm (6"-12") | 159-325 mm (6"-12") |
| Wall Thickness (Standard) | Standard tool slide: ≤30 mm | Standard tool slide: ≤30 mm | Standard tool slide: ≤30 mm |
| Wall Thickness (Heavy Wall) | Heavy wall tool slide: 200 mm | Heavy wall tool slide: 200 mm | Heavy wall tool slide: 200 mm |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev | 0.083 mm/rev |
Key Features
Cold Cutting Technology
OD325 Split Frame Pipe Cutting Machine uses non-thermal cold cutting, ensuring smooth weld-prep surfaces without heat distortion. It is widely applied in energy plants, offshore platforms, and chemical facilities.
Split Frame Advantage
The split frame structure allows easy installation on in-service pipelines. All components are secured to the frame halves, preventing loss during operation and ensuring safe, reliable performance.
Steel and Aluminum Body Options
The steel body version is built for strength and long life in heavy-wall alloy pipe cutting. The aluminum option reduces operator fatigue in high-altitude, confined-space, or mobile maintenance projects.
Flexible Accessories and Drives
OD325 is designed for multiple accessories and supports pneumatic, hydraulic, or electric drives. With beveling, facing, and boring capabilities, it delivers full flexibility for industrial pipeline applications.
Power Options
Electric Motor, Pneumatic Motor and Hydraulic Motor
ODM (Electric)
Metabo Electric Motor
Model: W24-230MVT
Motor Power: 2.4 Kw (3.22 Hp) / 10 A
Power Supply: 220-240 V, 50/60 Hz
Made in Germany
Suitable for more than 80% of applications. Requires 220V-50Hz power supply and is convenient for on-site use.
Model: W24-230MVT
Motor Power: 2.4 Kw (3.22 Hp) / 10 A
Power Supply: 220-240 V, 50/60 Hz
Made in Germany
Suitable for more than 80% of applications. Requires 220V-50Hz power supply and is convenient for on-site use.
ODP (Pneumatic)
Pneumatic Motor
Motor Power: 2.76 Kw (3.75 Hp)
Air Consumption: 2.8 m³/min @ 0.6 Mpa
Suitable for sites with explosion-proof requirements. However, performance may be affected if the air supply is far from the site or if air pressure is low.
Motor Power: 2.76 Kw (3.75 Hp)
Air Consumption: 2.8 m³/min @ 0.6 Mpa
Suitable for sites with explosion-proof requirements. However, performance may be affected if the air supply is far from the site or if air pressure is low.
ODH (Hydraulic)
Hydraulic Motor
BMR-100 (ODH168-ODH457)
BMR-125 (ODH508-ODH830)
BMR-160 (ODH914-ODH1230)
Hydraulic Power Unit
Model: HPU-10E
Motor power: 7.5 Kw (10 Hp)
Power supply: 3 Ph, 380-440 V+N, 50/60 Hz
Max flow: 32 L/min
Pressure: 12.5 Mpa
Recommended for model OD830 and above to ensure greater power. Please note, however, that hydraulic stations are costly and inconvenient to transport.
BMR-100 (ODH168-ODH457)
BMR-125 (ODH508-ODH830)
BMR-160 (ODH914-ODH1230)
Hydraulic Power Unit
Model: HPU-10E
Motor power: 7.5 Kw (10 Hp)
Power supply: 3 Ph, 380-440 V+N, 50/60 Hz
Max flow: 32 L/min
Pressure: 12.5 Mpa
Recommended for model OD830 and above to ensure greater power. Please note, however, that hydraulic stations are costly and inconvenient to transport.
Tool Slide
3" Standard Tool Slide Kit
(Cutting Tool Slide and Beveling Tool Slide)
Standard Tool Slide for model OD168-OD762.
With standard 12×20mm beveling tool bits, achieve cut / bevel upto 30 mm wall thickness in one pass.
Max. Travel: 75 mm.
3" Cutting Tool Slide, Part No. ODSCT-3001A
3" Beveling Tool Slide, Part No. ODSBT-3002A
Standard Tool Slide for model OD168-OD762.
With standard 12×20mm beveling tool bits, achieve cut / bevel upto 30 mm wall thickness in one pass.
Max. Travel: 75 mm.
3" Cutting Tool Slide, Part No. ODSCT-3001A
3" Beveling Tool Slide, Part No. ODSBT-3002A
4" Standard Tool Slide Kit
(Cutting Tool Slide and Beveling Tool Slide)
Standard Tool Slide for model OD830-OD1230.
With standard 12×20mm beveling tool bits, achieve cut / bevel upto 30 mm wall thickness in one pass.
Max. Travel: 100 mm.
4" Cutting Tool Slide, Part No. ODSCT-3003A
4" Beveling Tool Slide, Part No. ODSBT-3004A
Standard Tool Slide for model OD830-OD1230.
With standard 12×20mm beveling tool bits, achieve cut / bevel upto 30 mm wall thickness in one pass.
Max. Travel: 100 mm.
4" Cutting Tool Slide, Part No. ODSCT-3003A
4" Beveling Tool Slide, Part No. ODSBT-3004A
3" Heavy Wall Tool Slide
Heavy Wall Tool Slide for model OD168-OD762.
Install 25 mm width tool bits that can cut / bevel tubes of any wall thickness.
Max. Travel: 75 mm.
3" Heavy Wall Cutting Tool Slide (Heavy Wall Beveling Tool Slide), Part No. ODHT-3005A
Install 25 mm width tool bits that can cut / bevel tubes of any wall thickness.
Max. Travel: 75 mm.
3" Heavy Wall Cutting Tool Slide (Heavy Wall Beveling Tool Slide), Part No. ODHT-3005A
4" Heavy Wall Tool Slide
Heavy Wall Tool Slide for model OD830-OD1230.
Install 25 mm width tool bits that can cut / bevel tubes of any wall thickness.
Max. Travel: 100 mm.
4" Heavy Wall Cutting Tool Slide (Heavy Wall Beveling Tool Slide), Part No. ODHT-3006A
Install 25 mm width tool bits that can cut / bevel tubes of any wall thickness.
Max. Travel: 100 mm.
4" Heavy Wall Cutting Tool Slide (Heavy Wall Beveling Tool Slide), Part No. ODHT-3006A
Tracking Tool Slide
O.D. Tracking Slide- can be solution for all misshapen tubes and pipes. Tracking Tool Slides feature durable spring and tracking module that follows the contours of a deformed or less than perfectly round pipe. Install 25×25 mm tool bits.
Max. Travel: 55 mm.
Tracking Tool Slide, Part No. ODST-3007A
Max. Travel: 55 mm.
Tracking Tool Slide, Part No. ODST-3007A
Counterboring Tool Slide
Designed for the precision counterboring of tube and pipe inside diameter. The Counterboring Tool Slide can be attached directly to the standard tool slide on all OD machines. Install 08×30 mm tool bits.
Max. Travel: 70 mm.
Counterboring Tool Slide, Part No. ODCBT-3008A
Swivel Counterboring Tool Slide, Part No. ODCBT-3009A
Max. Travel: 70 mm.
Counterboring Tool Slide, Part No. ODCBT-3008A
Swivel Counterboring Tool Slide, Part No. ODCBT-3009A
Split Frame Pipe Cutting Machine Selection Table
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
|---|---|---|---|
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
| OD-508 | 355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |
Types of Groove Welds
A portable beveling machine can be equipped with different tool slides and tool bits to process V-grooves, J-grooves, and compound grooves, as well as perform internal beveling and boring operations.
Onsite Split Frame Pipe Cutting Machine Applications
The OD325 is a high-performance machine for pipes ranging from 159mm to 325mm, serving sectors like natural gas transmission, thermal power generation, and marine engineering. Its non-thermal cutting action ensures clean, oxidation-free bevels ready for welding, critical for high-pressure and high-temperature applications. In LNG facilities, the OD325 prepares cryogenic pipework, ensuring fracture-resistant welds. The clamshell design allows easy mounting around active pipelines, minimizing downtime during repairs or modifications. It is also widely used in hydroelectric projects for large penstocks and water conduits, as well as in district heating systems for robust and reliable joint preparation. The machine supports various tooling options for beveling, facing, and boring, adapting to complex onsite requirements.
After-Sales Service
Product Warranty
All products are backed by a 12-month warranty from the date of shipment. During this period, any manufacturing defects will be addressed promptly to ensure reliable performance and customer satisfaction.
Spare Parts Supply
We maintain a comprehensive inventory of spare parts to minimize downtime. All spare parts orders are processed and dispatched within 2 business days, ensuring quick delivery and continuous operation of your equipment.
Technical Support & Product Guidance
Each machine is supplied with a detailed instruction manual and step-by-step operation videos. For additional support, our technical team provides real-time video guidance and remote troubleshooting, ensuring that your equipment is operated safely and efficiently.
