18" Clamshell Split Frame Pipe Cutting Machine with High Safety and Cold Cutting Technology for Industrial Applications
| MOQ: | 1 |
| Price: | 1900USD-5700USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
OD457
Document
Drive Type:
Metabo Electric Motor Or Pneumatic Motor Or Hydraulic Motor
Working Range (OD):
300–457 Mm (12"–18")
Safety Compliance:
Suitable For Hazardous/explosive Areas
Cold Cutting Advantage:
No Heat Distortion, Better Weld Quality
Feed Rate:
0.083 Mm/rev
Highlight:
18" Split Frame Pipe Cutting Machine
,18" pipe cold cutting machine
,Clamshell Split Frame Pipe Cutting Machine
Product Description
OD-457 Split Frame Pipe Cutting Machine
The OD-457 split frame pipe cutting machine is engineered for industrial cold cutting and beveling applications on pipe sizes from 330 mm to 457 mm. Featuring reinforced clamshell construction, this machine delivers stable and precise machining performance even in demanding onsite conditions.
Technical Specifications
| Item | ODM457 (Electric) | ODP457 (Pneumatic) | ODH457 (Hydraulic) |
|---|---|---|---|
| Drive Type | Metabo Electric Motor | Pneumatic Motor | Hydraulic Motor |
| Power | 3.22 Hp / 2.4 Kw | 3.75 Hp / 2.76 Kw | 10 Hp / 7.5 Kw |
| Air Consumption | N/A | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | 220-240 V, 50/60 Hz | N/A | 380 V, 50/60 Hz |
| Working Range (OD) | 300-457 mm (12"-18") | 300-457 mm (12"-18") | 300-457 mm (12"-18") |
| Wall Thickness (Standard) | ≤30 mm | ≤30 mm | ≤30 mm |
| Wall Thickness (Heavy Wall) | 200 mm | 200 mm | 200 mm |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev | 0.083 mm/rev |
Key Features
- Cold Cutting Technology: Avoids altering pipe microstructure while producing superior end finishes for critical welding applications
- Split Frame Design: Separable clamshell construction enables straightforward mounting around active pipelines
- Material Options: Choose between steel for superior durability or aluminum for reduced weight in complex field conditions
- Flexible Accessories: Performs beveling, facing, and boring operations with multiple drive options
Power Options
Available with Electric, Pneumatic, and Hydraulic motor configurations to suit various operational requirements.
ODM (Electric)
Metabo Electric Motor (Model: W24-230MVT) with 2.4 Kw (3.22 Hp) power output. Requires 220-240 V, 50/60 Hz power supply. Made in Germany. Suitable for more than 80% of applications and convenient for on-site use.
ODP (Pneumatic)
Pneumatic Motor with 2.76 Kw (3.75 Hp) power output. Air consumption: 2.8 m³/min @ 0.6 Mpa. Ideal for sites with explosion-proof requirements. Performance may be affected by distance from air supply or low air pressure.
ODH (Hydraulic)
Hydraulic Motor with BMR series configuration. Hydraulic Power Unit (Model: HPU-10E) provides 7.5 Kw (10 Hp) motor power with 3 Ph, 380-440 V+N, 50/60 Hz power supply. Recommended for model OD830 and above to ensure greater power. Note that hydraulic stations are costly and require careful transport planning.
Tool Slide Systems
3" Standard Tool Slide Kit
For models OD168-OD762. Includes cutting and beveling tool slides. Achieves cut/bevel up to 30 mm wall thickness in one pass with standard 12×20mm beveling tool bits. Maximum travel: 75 mm.
4" Standard Tool Slide Kit
For models OD830-OD1230. Includes cutting and beveling tool slides. Achieves cut/bevel up to 30 mm wall thickness in one pass with standard 12×20mm beveling tool bits. Maximum travel: 100 mm.
Heavy Wall Tool Slides
Available in 3" and 4" configurations. Accommodates 25 mm width tool bits capable of cutting/beveling tubes of any wall thickness. Maximum travel: 75 mm (3") and 100 mm (4").
Specialized Tool Slides
Tracking Tool Slide for misshapen tubes and pipes, featuring durable spring and tracking module. Counterboring Tool Slide for precision counterboring of tube and pipe inside diameter with swivel options available.
Model Selection Guide
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
|---|---|---|---|
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
| OD-508 | 355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |
Weld Preparation Capabilities
This portable beveling machine can be equipped with different tool slides and tool bits to process V-grooves, J-grooves, and compound grooves, as well as perform internal beveling and boring operations.
Industrial Applications

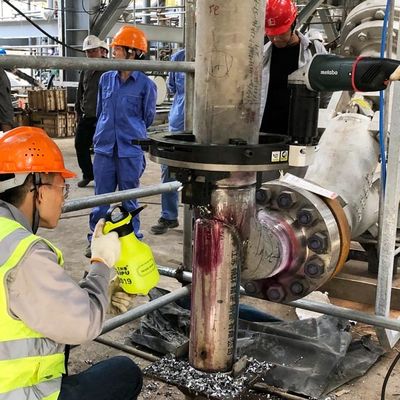

The OD457 split frame pipe cutting machine serves critical roles in natural gas transmission, petrochemical complexes, marine construction, and nuclear facilities. Its spark-free cold cutting capability makes it essential for explosive atmospheres and sensitive environments. The machine supports pipeline integrity programs, plant expansions, and emergency repairs without requiring system shutdowns. In cryogenic and LNG applications, it ensures precise beveling for low-temperature piping. The split-frame design simplifies installation on large-diameter pipes, even in cramped or elevated locations.
After-Sales Support
Product Warranty
All products are backed by a 12-month warranty from the date of shipment. Manufacturing defects are addressed promptly to ensure reliable performance and customer satisfaction.
Spare Parts Supply
We maintain comprehensive spare parts inventory to minimize downtime. All spare parts orders are processed and dispatched within 2 business days for continuous equipment operation.
Technical Support
Each machine includes detailed instruction manuals and step-by-step operation videos. Our technical team provides real-time video guidance and remote troubleshooting to ensure safe and efficient equipment operation.
