Industrial 8"–14" Split Frame Pipe Cutting Machine with High Precision and Cold Cutting Technology
| MOQ: | 1 |
| Price: | 1600USD-4800USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
high precision Clamshell Pipe Cutting Machine
,high precision pipe cold cutter
,14" Clamshell Pipe Cutting Machine

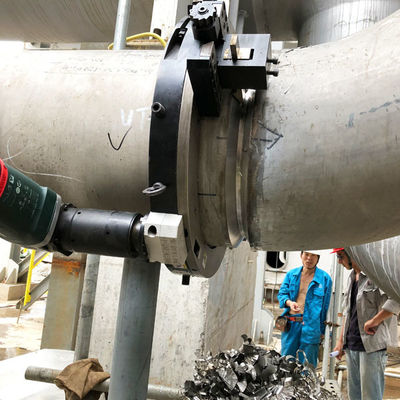

The OD-377 split frame pipe cutting machine is suitable for pipelines ranging from 250 mm to 377 mm. Engineered for cold cutting, it guarantees high precision and safety during onsite machining. Its split frame structure allows rapid clamping on in-service pipelines, minimizing downtime during maintenance. The OD-377 is extensively applied in oil and gas transmission, offshore platforms, chemical facilities, and shipbuilding industries. Equipped with adjustable tooling slides, it performs cutting, beveling, and facing tasks with consistent accuracy. Its rugged design, combined with efficient power drive options, ensures long-lasting performance in both fabrication workshops and remote field environments.
| Item | ODM377 (Electric) | ODP377 (Pneumatic) | ODH377 (Hydraulic) |
|---|---|---|---|
| Drive Type | Metabo Electric Motor | Pneumatic Motor | Hydraulic Motor |
| Power | 3.22 Hp / 2.4 Kw | 3.75 Hp / 2.76 Kw | 10 Hp / 7.5 Kw |
| Air Consumption | N/A | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | 220-240 V, 50/60 Hz | N/A | 380 V, 50/60 Hz |
| Working Range (OD) | 200-377 mm (8"-14") | 200-377 mm (8"-14") | 200-377 mm (8"-14") |
| Wall Thickness (Standard) | Standard tool slide: ≤30 mm | Standard tool slide: ≤30 mm | Standard tool slide: ≤30 mm |
| Wall Thickness (Heavy Wall) | Heavy wall tool slide: 200 mm | Heavy wall tool slide: 200 mm | Heavy wall tool slide: 200 mm |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev | 0.083 mm/rev |
- Cold Cutting Technology: Adopts cold cutting to eliminate thermal risks such as heat distortion, oxidation, and material stress. Produces clean weld-ready ends for demanding applications.
- Split Frame Advantage: The clamshell opens into two halves for easy mounting around pipelines. Operators can quickly position and secure the unit without dismantling the line, saving time in field maintenance.
- Steel and Aluminum Body Options: Offers steel body for strength in extreme-duty cutting and aluminum body for lightweight handling. Both designs guarantee reliability and durability in different site conditions.
- Flexible Accessories and Drives: With available accessories for facing, beveling, and compound machining. Supports pneumatic, hydraulic, and electric power sources for on-site flexibility.
Metabo Electric Motor
Model: W24-230MVT
Motor Power: 2.4 Kw (3.22 Hp) / 10 A
Power Supply: 220-240 V, 50/60 Hz
Made in Germany
Suitable for more than 80% of applications. Requires 220V-50Hz power supply and is convenient for on-site use.
Pneumatic Motor
Motor Power: 2.76 Kw (3.75 Hp)
Air Consumption: 2.8 m³/min @ 0.6 Mpa
Suitable for sites with explosion-proof requirements. However, performance may be affected if the air supply is far from the site or if air pressure is low.
Hydraulic Motor
BMR-100 (ODH168-ODH457)
BMR-125 (ODH508-ODH830)
BMR-160 (ODH914-ODH1230)
Hydraulic Power Unit
Model: HPU-10E
Motor power: 7.5 Kw (10 Hp)
Power supply: 3 Ph, 380-440 V+N, 50/60 Hz
Max flow: 32 L/min
Pressure: 12.5 Mpa
Recommended for model OD830 and above to ensure greater power. Please note, however, that hydraulic stations are costly and inconvenient to transport.
(Cutting Tool Slide and Beveling Tool Slide)
Standard Tool Slide for model OD168-OD762.
With standard 12×20mm beveling tool bits, achieve cut / bevel up to 30 mm wall thickness in one pass.
Max. Travel: 75 mm.
3" Cutting Tool Slide, Part No. ODSCT-3001A
3" Beveling Tool Slide, Part No. ODSBT-3002A
(Cutting Tool Slide and Beveling Tool Slide)
Standard Tool Slide for model OD830-OD1230.
With standard 12×20mm beveling tool bits, achieve cut / bevel up to 30 mm wall thickness in one pass.
Max. Travel: 100 mm.
4" Cutting Tool Slide, Part No. ODSCT-3003A
4" Beveling Tool Slide, Part No. ODSBT-3004A
Heavy Wall Tool Slide for model OD168-OD762.
Install 25 mm width tool bits that can cut / bevel tubes of any wall thickness.
Max. Travel: 75 mm.
3" Heavy Wall Cutting Tool Slide (Heavy Wall Beveling Tool Slide), Part No. ODHT-3005A
Heavy Wall Tool Slide for model OD830-OD1230.
Install 25 mm width tool bits that can cut / bevel tubes of any wall thickness.
Max. Travel: 100 mm.
4" Heavy Wall Cutting Tool Slide (Heavy Wall Beveling Tool Slide), Part No. ODHT-3006A
O.D. Tracking Slide - can be solution for all misshapen tubes and pipes. Tracking Tool Slides feature durable spring and tracking module that follows the contours of a deformed or less than perfectly round pipe. Install 25×25 mm tool bits.
Max. Travel: 55 mm.
Tracking Tool Slide, Part No. ODST-3007A
Designed for the precision counterboring of tube and pipe inside diameter. The Counterboring Tool Slide can be attached directly to the standard tool slide on all OD machines. Install 08×30 mm tool bits.
Max. Travel: 70 mm.
Counterboring Tool Slide, Part No. ODCBT-3008A
Swivel Counterboring Tool Slide, Part No. ODCBT-3009A
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
|---|---|---|---|
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
| OD-508 | 355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |
A portable beveling machine can be equipped with different tool slides and tool bits to process V-grooves, J-grooves, and compound grooves, as well as perform internal beveling and boring operations.
Capable of handling pipes from 200mm to 377mm, the OD377 is ideal for demanding applications in refinery, offshore, and heavy industrial settings. It performs precise cold beveling and cutting without compromising material properties, making it indispensable for corrosion-resistant alloys and critical process piping. In power plants, the machine is used for steam line maintenance and turbine bypass systems, while in shipbuilding, it facilitates the construction of fuel and hydraulic lines. The split-frame design ensures quick installation, reducing labor time and costs. It is also effective in water treatment plants for large-diameter pipe networks and in chemical factories for hazardous fluid systems. With multi-drive compatibility, the OD377 offers operational flexibility across different environments.
All products are backed by a 12-month warranty from the date of shipment. During this period, any manufacturing defects will be addressed promptly to ensure reliable performance and customer satisfaction.
We maintain a comprehensive inventory of spare parts to minimize downtime. All spare parts orders are processed and dispatched within 2 business days, ensuring quick delivery and continuous operation of your equipment.
Each machine is supplied with a detailed instruction manual and step-by-step operation videos. For additional support, our technical team provides real-time video guidance and remote troubleshooting, ensuring that your equipment is operated safely and efficiently.
