OD-560 Split Frame Pipe Cutting Machine
The OD-560 split frame pipe cutting machine is engineered for industrial cold cutting and beveling applications on pipelines ranging from 400 mm to 560 mm (16"-22"). Its robust clamshell frame ensures steady operation and quick mounting, even in restricted spaces. The cold cutting process eliminates sparks and heat-affected zones, providing superior results for alloy steel, stainless steel, and carbon steel pipes.
Technical Specifications
| Item | ODM508 (Electric) | ODP508 (Pneumatic) | ODH508 (Hydraulic) |
|---|---|---|---|
| Drive Type | Metabo Electric Motor | Pneumatic Motor | Hydraulic Motor |
| Power | 3.22 Hp / 2.4 Kw | 3.75 Hp / 2.76 Kw | 10 Hp / 7.5 Kw |
| Air Consumption | N/A | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | 220-240 V, 50/60 Hz | N/A | 380 V, 50/60 Hz |
| Working Range (OD) | 400-560 mm (16"-22") | 400-560 mm (16"-22") | 400-560 mm (16"-22") |
| Wall Thickness (Standard) | ≤30 mm | ≤30 mm | ≤30 mm |
| Wall Thickness (Heavy Wall) | 200 mm | 200 mm | 200 mm |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev | 0.083 mm/rev |
Key Features
- Cold Cutting Technology: Delivers clean, burr-free cuts without creating heat-affected zones, ensuring accurate weld preparation while preserving pipe strength and material properties.
- Split Frame Advantage: Clamshell split-frame structure enables quick mounting around in-service pipelines, reducing downtime and improving on-site efficiency.
- Robust and Lightweight Options: Available in both heavy-duty steel and lightweight aluminum versions, balancing durability with portability for confined or elevated work areas.
- Versatile Drive and Accessory Support: Engineered to accommodate different power drives and functional modules for diverse industrial cutting and beveling requirements.
Power Options
ODM (Electric)
Metabo Electric Motor
Model: W24-230MVT
Motor Power: 2.4 Kw (3.22 Hp) / 10 A
Power Supply: 220-240 V, 50/60 Hz
Made in Germany
Suitable for more than 80% of applications. Requires 220V-50Hz power supply and is convenient for on-site use.
Model: W24-230MVT
Motor Power: 2.4 Kw (3.22 Hp) / 10 A
Power Supply: 220-240 V, 50/60 Hz
Made in Germany
Suitable for more than 80% of applications. Requires 220V-50Hz power supply and is convenient for on-site use.
ODP (Pneumatic)
Pneumatic Motor
Motor Power: 2.76 Kw (3.75 Hp)
Air Consumption: 2.8 m³/min @ 0.6 Mpa
Suitable for sites with explosion-proof requirements. Performance may be affected if air supply is distant or pressure is low.
Motor Power: 2.76 Kw (3.75 Hp)
Air Consumption: 2.8 m³/min @ 0.6 Mpa
Suitable for sites with explosion-proof requirements. Performance may be affected if air supply is distant or pressure is low.
ODH (Hydraulic)
Hydraulic Motor: BMR-100 (ODH168-ODH457), BMR-125 (ODH508-ODH830), BMR-160 (ODH914-ODH1230)
Hydraulic Power Unit Model: HPU-10E
Motor power: 7.5 Kw (10 Hp)
Power supply: 3 Ph, 380-440 V+N, 50/60 Hz
Max flow: 32 L/min
Pressure: 12.5 Mpa
Recommended for model OD830 and above to ensure greater power. Hydraulic stations are costly and inconvenient to transport.
Hydraulic Power Unit Model: HPU-10E
Motor power: 7.5 Kw (10 Hp)
Power supply: 3 Ph, 380-440 V+N, 50/60 Hz
Max flow: 32 L/min
Pressure: 12.5 Mpa
Recommended for model OD830 and above to ensure greater power. Hydraulic stations are costly and inconvenient to transport.
Tool Slide Options
3" Standard Tool Slide Kit
For model OD168-OD762. With standard 12×20mm beveling tool bits, achieve cut/bevel up to 30 mm wall thickness in one pass. Max. Travel: 75 mm.
3" Cutting Tool Slide, Part No. ODSCT-3001A
3" Beveling Tool Slide, Part No. ODSBT-3002A
3" Cutting Tool Slide, Part No. ODSCT-3001A
3" Beveling Tool Slide, Part No. ODSBT-3002A
4" Standard Tool Slide Kit
For model OD830-OD1230. With standard 12×20mm beveling tool bits, achieve cut/bevel up to 30 mm wall thickness in one pass. Max. Travel: 100 mm.
4" Cutting Tool Slide, Part No. ODSCT-3003A
4" Beveling Tool Slide, Part No. ODSBT-3004A
4" Cutting Tool Slide, Part No. ODSCT-3003A
4" Beveling Tool Slide, Part No. ODSBT-3004A
3" Heavy Wall Tool Slide
For model OD168-OD762. Install 25 mm width tool bits that can cut/bevel tubes of any wall thickness. Max. Travel: 75 mm.
3" Heavy Wall Cutting/Beveling Tool Slide, Part No. ODHT-3005A
3" Heavy Wall Cutting/Beveling Tool Slide, Part No. ODHT-3005A
4" Heavy Wall Tool Slide
For model OD830-OD1230. Install 25 mm width tool bits that can cut/bevel tubes of any wall thickness. Max. Travel: 100 mm.
4" Heavy Wall Cutting/Beveling Tool Slide, Part No. ODHT-3006A
4" Heavy Wall Cutting/Beveling Tool Slide, Part No. ODHT-3006A
Tracking Tool Slide
Solution for misshapen tubes and pipes. Features durable spring and tracking module that follows contours of deformed or imperfectly round pipes. Install 25×25 mm tool bits. Max. Travel: 55 mm.
Tracking Tool Slide, Part No. ODST-3007A
Tracking Tool Slide, Part No. ODST-3007A
Counterboring Tool Slide
Designed for precision counterboring of tube and pipe inside diameter. Attaches directly to standard tool slide on all OD machines. Install 08×30 mm tool bits. Max. Travel: 70 mm.
Counterboring Tool Slide, Part No. ODCBT-3008A
Swivel Counterboring Tool Slide, Part No. ODCBT-3009A
Counterboring Tool Slide, Part No. ODCBT-3008A
Swivel Counterboring Tool Slide, Part No. ODCBT-3009A
Split Frame Pipe Cutting Machine Selection Table
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
|---|---|---|---|
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
| OD-508 | 355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |
Types of Groove Welds
A portable beveling machine can be equipped with different tool slides and tool bits to process V-grooves, J-grooves, and compound grooves, as well as perform internal beveling and boring operations.
Onsite Applications

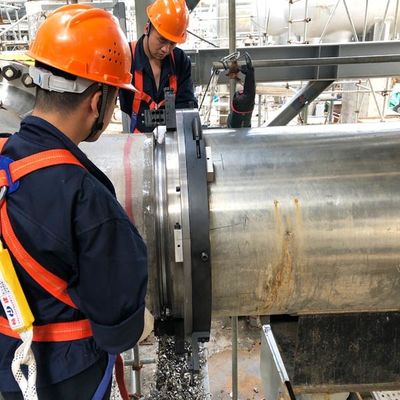

Designed for 400mm to 560mm pipes, the OD560 is a robust solution for oil and gas, power generation, and heavy industries. It delivers precise beveling and cutting without thermal impact, ideal for carbon and stainless-steel pipelines. In LNG terminals, the machine prepares pipes for cryogenic duty, while in refinery turnaround projects, it accelerates maintenance schedules. The split-frame design enhances portability and setup efficiency, even in challenging environments like desert pipelines or offshore installations. It is also used in hydroelectric dams for large penstocks and in chemical plants for corrosive fluid systems.
