22"-28" Split Frame Pipe Cutting Machine with Cold Cutting Technology and Heavy-Duty Clamshell Body
| MOQ: | 1 |
| Price: | 2700USD-8100USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
OD715
Document
Drive Type:
Metabo Electric Motor Or Pneumatic Motor Or Hydraulic Motor
Working Range (OD):
560–715 Mm (22"–28")
Tool Slide Selection:
≤30 Mm: Standard; >30 Mm: Heavy-duty Slide
Highlight:
22" Split Frame Pipe Cutting Machine
,Efficient Split Frame Pipe Cutting Machine
,Efficient clamshell pipe cutting machine
Product Description
High Stability Split Frame Pipe Cutting Machine 22"
Efficient pipeline processing with advanced cold cutting technology for superior results.
Product Overview
The OD-715 split frame pipe cutting machine is engineered for high-precision cold cutting of pipelines ranging from 560 mm to 715 mm. Its heavy-duty clamshell body provides exceptional stability and durability for demanding industrial field service. By applying cold cutting technology, the machine prevents sparks and thermal distortion while ensuring clean, accurate results ready for welding.
Technical Specifications
| Item | ODM715 (Electric) | ODP715 (Pneumatic) | ODH715 (Hydraulic) |
|---|---|---|---|
| Drive Type | Metabo Electric Motor | Pneumatic Motor | Hydraulic Motor |
| Power | 3.22 Hp / 2.4 Kw | 3.75 Hp / 2.76 Kw | 10 Hp / 7.5 Kw |
| Air Consumption | N/A | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | 220-240 V, 50/60 Hz | N/A | 380 V, 50/60 Hz |
| Working Range (OD) | 560-715 mm (22"-28") | 560-715 mm (22"-28") | 560-715 mm (22"-28") |
| Wall Thickness (Standard) | ≤30 mm | ≤30 mm | ≤30 mm |
| Wall Thickness (Heavy Wall) | 200 mm | 200 mm | 200 mm |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev | 0.083 mm/rev |
Key Features
- Cold Cutting Technology: Superior cut quality through cold machining prevents hardening or micro-fissures while producing ready-to-weld pipe ends for critical energy sector projects.
- Split Frame Advantage: Separable clamshell frame installs effortlessly around operational pipelines, enhancing worksite efficiency and safety through integrated component retention.
- Steel and Aluminum Body Options: Steel variant delivers unmatched durability for heavy-duty processing, while aluminum alternative enables easy handling in challenging environments like offshore platforms.
- Flexible Accessories and Drives: Capable of multiple machining operations with various drive systems for exceptional adaptability to different power availability situations.
Power Options
Electric Motor, Pneumatic Motor and Hydraulic Motor configurations available.
ODM (Electric)
Metabo Electric Motor
Model: W24-230MVT
Motor Power: 2.4 Kw (3.22 Hp) / 10 A
Power Supply: 220-240 V, 50/60 Hz
Made in Germany
Suitable for more than 80% of applications. Requires 220V-50Hz power supply and is convenient for on-site use.
Model: W24-230MVT
Motor Power: 2.4 Kw (3.22 Hp) / 10 A
Power Supply: 220-240 V, 50/60 Hz
Made in Germany
Suitable for more than 80% of applications. Requires 220V-50Hz power supply and is convenient for on-site use.
ODP (Pneumatic)
Pneumatic Motor
Motor Power: 2.76 Kw (3.75 Hp)
Air Consumption: 2.8 m³/min @ 0.6 Mpa
Suitable for sites with explosion-proof requirements. However, performance may be affected if the air supply is far from the site or if air pressure is low.
Motor Power: 2.76 Kw (3.75 Hp)
Air Consumption: 2.8 m³/min @ 0.6 Mpa
Suitable for sites with explosion-proof requirements. However, performance may be affected if the air supply is far from the site or if air pressure is low.
ODH (Hydraulic)
Hydraulic Motor
BMR-100 (ODH168-ODH457)
BMR-125 (ODH508-ODH830)
BMR-160 (ODH914-ODH1230)
Hydraulic Power Unit
Model: HPU-10E
Motor power: 7.5 Kw (10 Hp)
Power supply: 3 Ph, 380-440 V+N, 50/60 Hz
Max flow: 32 L/min
Pressure: 12.5 Mpa
Recommended for model OD830 and above to ensure greater power. Please note, however, that hydraulic stations are costly and inconvenient to transport.
BMR-100 (ODH168-ODH457)
BMR-125 (ODH508-ODH830)
BMR-160 (ODH914-ODH1230)
Hydraulic Power Unit
Model: HPU-10E
Motor power: 7.5 Kw (10 Hp)
Power supply: 3 Ph, 380-440 V+N, 50/60 Hz
Max flow: 32 L/min
Pressure: 12.5 Mpa
Recommended for model OD830 and above to ensure greater power. Please note, however, that hydraulic stations are costly and inconvenient to transport.
Tool Slide Options
3" Standard Tool Slide Kit
Standard Tool Slide for model OD168-OD762.
With standard 12×20mm beveling tool bits, achieve cut/bevel up to 30 mm wall thickness in one pass.
Max. Travel: 75 mm.
3" Cutting Tool Slide, Part No. ODSCT-3001A
3" Beveling Tool Slide, Part No. ODSBT-3002A
With standard 12×20mm beveling tool bits, achieve cut/bevel up to 30 mm wall thickness in one pass.
Max. Travel: 75 mm.
3" Cutting Tool Slide, Part No. ODSCT-3001A
3" Beveling Tool Slide, Part No. ODSBT-3002A
4" Standard Tool Slide Kit
Standard Tool Slide for model OD830-OD1230.
With standard 12×20mm beveling tool bits, achieve cut/bevel up to 30 mm wall thickness in one pass.
Max. Travel: 100 mm.
4" Cutting Tool Slide, Part No. ODSCT-3003A
4" Beveling Tool Slide, Part No. ODSBT-3004A
With standard 12×20mm beveling tool bits, achieve cut/bevel up to 30 mm wall thickness in one pass.
Max. Travel: 100 mm.
4" Cutting Tool Slide, Part No. ODSCT-3003A
4" Beveling Tool Slide, Part No. ODSBT-3004A
3" Heavy Wall Tool Slide
Heavy Wall Tool Slide for model OD168-OD762.
Install 25 mm width tool bits that can cut/bevel tubes of any wall thickness.
Max. Travel: 75 mm.
3" Heavy Wall Cutting Tool Slide (Heavy Wall Beveling Tool Slide), Part No. ODHT-3005A
Install 25 mm width tool bits that can cut/bevel tubes of any wall thickness.
Max. Travel: 75 mm.
3" Heavy Wall Cutting Tool Slide (Heavy Wall Beveling Tool Slide), Part No. ODHT-3005A
4" Heavy Wall Tool Slide
Heavy Wall Tool Slide for model OD830-OD1230.
Install 25 mm width tool bits that can cut/bevel tubes of any wall thickness.
Max. Travel: 100 mm.
4" Heavy Wall Cutting Tool Slide (Heavy Wall Beveling Tool Slide), Part No. ODHT-3006A
Install 25 mm width tool bits that can cut/bevel tubes of any wall thickness.
Max. Travel: 100 mm.
4" Heavy Wall Cutting Tool Slide (Heavy Wall Beveling Tool Slide), Part No. ODHT-3006A
Tracking Tool Slide
O.D. Tracking Slide - solution for all misshapen tubes and pipes. Features durable spring and tracking module that follows the contours of a deformed or less than perfectly round pipe. Install 25×25 mm tool bits.
Max. Travel: 55 mm.
Tracking Tool Slide, Part No. ODST-3007A
Max. Travel: 55 mm.
Tracking Tool Slide, Part No. ODST-3007A
Counterboring Tool Slide
Designed for precision counterboring of tube and pipe inside diameter. Can be attached directly to the standard tool slide on all OD machines. Install 08×30 mm tool bits.
Max. Travel: 70 mm.
Counterboring Tool Slide, Part No. ODCBT-3008A
Swivel Counterboring Tool Slide, Part No. ODCBT-3009A
Max. Travel: 70 mm.
Counterboring Tool Slide, Part No. ODCBT-3008A
Swivel Counterboring Tool Slide, Part No. ODCBT-3009A
Split Frame Pipe Cutting Machine Selection Table
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
|---|---|---|---|
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
| OD-508 | 355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |
Types of Groove Welds
A portable beveling machine can be equipped with different tool slides and tool bits to process V-grooves, J-grooves, and compound grooves, as well as perform internal beveling and boring operations.

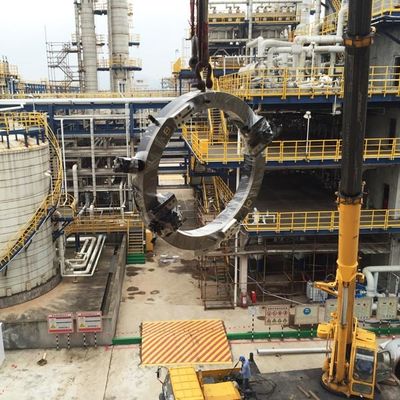

Onsite Applications
The OD715 processes pipes from 560mm to 715mm, making it essential for energy, water, and industrial applications. It is widely used in gas processing plants, power boiler feed systems, and offshore drilling rigs for precise cold beveling and cutting. The machine ensures leak-free, high-strength welds in high-pressure and high-temperature services. In LNG export terminals, it prepares pipes for cryogenic operation, while in hydropower stations, it maintains large penstocks and scroll cases. The clamshell design supports easy mounting in confined or elevated spaces. For chemical and petrochemical sectors, the OD715 offers contamination-free machining. Its flexibility and performance make it a valuable asset for critical infrastructure projects.
After-Sales Service
Product Warranty
All products are backed by a 12-month warranty from the date of shipment. During this period, any manufacturing defects will be addressed promptly to ensure reliable performance and customer satisfaction.
Spare Parts Supply
We maintain a comprehensive inventory of spare parts to minimize downtime. All spare parts orders are processed and dispatched within 2 business days, ensuring quick delivery and continuous operation of your equipment.
Technical Support & Product Guidance
Each machine is supplied with a detailed instruction manual and step-by-step operation videos. For additional support, our technical team provides real-time video guidance and remote troubleshooting, ensuring that your equipment is operated safely and efficiently.
