Split Frame Pipe Cutting Machine with Hydraulic Motor for 355–508 mm (14"–20") Pipes Using Cold Cutting Technology
Products
Contact Us
|
Split Frame Pipe Cutting Machine with Hydraulic Motor for 355–508 mm (14"–20") Pipes Using Cold Cutting Technology
| MOQ: | 1 |
| Price: | 2100USD-6300USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
OD508
Document
Drive Type:
Metabo Electric Motor Or Pneumatic Motor Or Hydraulic Motor
Working Range (OD):
355–508 Mm (14"–20")
Split Frame:
Models ≤ OD560 Can Be Split Manually
Cut Surface Quality:
Smooth, Weld-ready Finish
Durability:
Rugged Build For Long-term Use
Highlight:
Split Frame Portable Pipe Cutting Machine
,20" cold cutting equipment
,20" Portable Pipe Cutting Machine
Product Description
Split Frame Portable Pipe Cutting Machine 14"–20" With Hydraulic Motor For Industrial
OD-508 Split Frame Pipe Cutting Machine for Precision Cold Cutting
The OD-508 split frame pipe cutting machine handles pipelines from 355 mm to 508 mm in diameter. Featuring advanced clamshell construction, it ensures strong clamping and precise alignment during cutting and beveling. Cold cutting prevents heat damage, making it safe for flammable environments and high-grade alloys. The OD-508 is widely applied in oil and gas transmission, chemical plants, nuclear facilities, and shipbuilding. Multiple beveling angles and tooling configurations enable accurate weld-end preparation and flange repair. Its rugged structure and easy operation make it a dependable solution for onsite maintenance, shutdown projects, and heavy-duty industrial fabrication.
Technical Specifications
| Item | ODM508 (Electric) | ODP508 (Pneumatic) | ODH508 (Hydraulic) |
|---|---|---|---|
| Drive Type | Metabo Electric Motor | Pneumatic Motor | Hydraulic Motor |
| Power | 3.22 Hp / 2.4 Kw | 3.75 Hp / 2.76 Kw | 10 Hp / 7.5 Kw |
| Air Consumption | N/A | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | 220-240 V, 50/60 Hz | N/A | 380 V, 50/60 Hz |
| Working Range (OD) | 355-508 mm (14"-20") | 355-508 mm (14"-20") | 355-508 mm (14"-20") |
| Wall Thickness (Standard) | ≤30 mm | ≤30 mm | ≤30 mm |
| Wall Thickness (Heavy Wall) | 200 mm | 200 mm | 200 mm |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev | 0.083 mm/rev |
Key Features
Cold Cutting Technology: OD508 guarantees flawless, heat-affected-zone-free cuts through cold cutting, achieving precise weld prep without compromising pipe integrity.
Split Frame Advantage: Its split-frame clamshell enables easy assembly on pressurized pipelines, minimizing downtime and streamlining field operations.
Steel and Aluminum Body Options: Steel bodies offer extreme strength for challenging tasks, and aluminum versions allow easier transport and setup in awkward positions.
Flexible Accessories and Drives: With support for multiple machining functions and drive options, the OD508 provides adaptable performance for industrial applications.
Power Options
Electric Motor, Pneumatic Motor and Hydraulic Motor
ODM (Electric)
Metabo Electric Motor
Model: W24-230MVT
Motor Power: 2.4 Kw (3.22 Hp) / 10 A
Power Supply: 220-240 V, 50/60 Hz
Made in Germany
Suitable for more than 80% of applications. Requires 220V-50Hz power supply and is convenient for on-site use.
Model: W24-230MVT
Motor Power: 2.4 Kw (3.22 Hp) / 10 A
Power Supply: 220-240 V, 50/60 Hz
Made in Germany
Suitable for more than 80% of applications. Requires 220V-50Hz power supply and is convenient for on-site use.
ODP (Pneumatic)
Pneumatic Motor
Motor Power: 2.76 Kw (3.75 Hp)
Air Consumption: 2.8 m³/min @ 0.6 Mpa
Suitable for sites with explosion-proof requirements. However, performance may be affected if the air supply is far from the site or if air pressure is low.
Motor Power: 2.76 Kw (3.75 Hp)
Air Consumption: 2.8 m³/min @ 0.6 Mpa
Suitable for sites with explosion-proof requirements. However, performance may be affected if the air supply is far from the site or if air pressure is low.
ODH (Hydraulic)
Hydraulic Motor
BMR-100 (ODH168-ODH457)
BMR-125 (ODH508-ODH830)
BMR-160 (ODH914-ODH1230)
Hydraulic Power Unit
Model: HPU-10E
Motor power: 7.5 Kw (10 Hp)
Power supply: 3 Ph, 380-440 V+N, 50/60 Hz
Max flow: 32 L/min
Pressure: 12.5 Mpa
Recommended for model OD830 and above to ensure greater power. Please note, however, that hydraulic stations are costly and inconvenient to transport.
BMR-100 (ODH168-ODH457)
BMR-125 (ODH508-ODH830)
BMR-160 (ODH914-ODH1230)
Hydraulic Power Unit
Model: HPU-10E
Motor power: 7.5 Kw (10 Hp)
Power supply: 3 Ph, 380-440 V+N, 50/60 Hz
Max flow: 32 L/min
Pressure: 12.5 Mpa
Recommended for model OD830 and above to ensure greater power. Please note, however, that hydraulic stations are costly and inconvenient to transport.
Tool Slide Options
3" Standard Tool Slide Kit
(Cutting Tool Slide and Beveling Tool Slide)
Standard Tool Slide for model OD168-OD762.
With standard 12×20mm beveling tool bits, achieve cut / bevel upto 30 mm wall thickness in one pass.
Max. Travel: 75 mm.
3" Cutting Tool Slide, Part No. ODSCT-3001A
3" Beveling Tool Slide, Part No. ODSBT-3002A
Standard Tool Slide for model OD168-OD762.
With standard 12×20mm beveling tool bits, achieve cut / bevel upto 30 mm wall thickness in one pass.
Max. Travel: 75 mm.
3" Cutting Tool Slide, Part No. ODSCT-3001A
3" Beveling Tool Slide, Part No. ODSBT-3002A
4" Standard Tool Slide Kit
(Cutting Tool Slide and Beveling Tool Slide)
Standard Tool Slide for model OD830-OD1230.
With standard 12×20mm beveling tool bits, achieve cut / bevel upto 30 mm wall thickness in one pass.
Max. Travel: 100 mm.
4" Cutting Tool Slide, Part No. ODSCT-3003A
4" Beveling Tool Slide, Part No. ODSBT-3004A
Standard Tool Slide for model OD830-OD1230.
With standard 12×20mm beveling tool bits, achieve cut / bevel upto 30 mm wall thickness in one pass.
Max. Travel: 100 mm.
4" Cutting Tool Slide, Part No. ODSCT-3003A
4" Beveling Tool Slide, Part No. ODSBT-3004A
3" Heavy Wall Tool Slide
Heavy Wall Tool Slide for model OD168-OD762.
Install 25 mm width tool bits that can cut / bevel tubes of any wall thickness.
Max. Travel: 75 mm.
3" Heavy Wall Cutting Tool Slide (Heavy Wall Beveling Tool Slide), Part No. ODHT-3005A
Install 25 mm width tool bits that can cut / bevel tubes of any wall thickness.
Max. Travel: 75 mm.
3" Heavy Wall Cutting Tool Slide (Heavy Wall Beveling Tool Slide), Part No. ODHT-3005A
4" Heavy Wall Tool Slide
Heavy Wall Tool Slide for model OD830-OD1230.
Install 25 mm width tool bits that can cut / bevel tubes of any wall thickness.
Max. Travel: 100 mm.
4" Heavy Wall Cutting Tool Slide (Heavy Wall Beveling Tool Slide), Part No. ODHT-3006A
Install 25 mm width tool bits that can cut / bevel tubes of any wall thickness.
Max. Travel: 100 mm.
4" Heavy Wall Cutting Tool Slide (Heavy Wall Beveling Tool Slide), Part No. ODHT-3006A
Tracking Tool Slide
O.D. Tracking Slide - can be solution for all misshapen tubes and pipes. Tracking Tool Slides feature durable spring and tracking module that follows the contours of a deformed or less than perfectly round pipe. Install 25×25 mm tool bits.
Max. Travel: 55 mm.
Tracking Tool Slide, Part No. ODST-3007A
Max. Travel: 55 mm.
Tracking Tool Slide, Part No. ODST-3007A
Counterboring Tool Slide
Designed for the precision counterboring of tube and pipe inside diameter. The Counterboring Tool Slide can be attached directly to the standard tool slide on all OD machines. Install 08×30 mm tool bits.
Max. Travel: 70 mm.
Counterboring Tool Slide, Part No. ODCBT-3008A
Swivel Counterboring Tool Slide, Part No. ODCBT-3009A
Max. Travel: 70 mm.
Counterboring Tool Slide, Part No. ODCBT-3008A
Swivel Counterboring Tool Slide, Part No. ODCBT-3009A
Split Frame Pipe Cutting Machine Selection Table
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
|---|---|---|---|
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
| OD-508 | 355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |
Types of Groove Welds
A portable beveling machine can be equipped with different tool slides and tool bits to process V-grooves, J-grooves, and compound grooves, as well as perform internal beveling and boring operations.

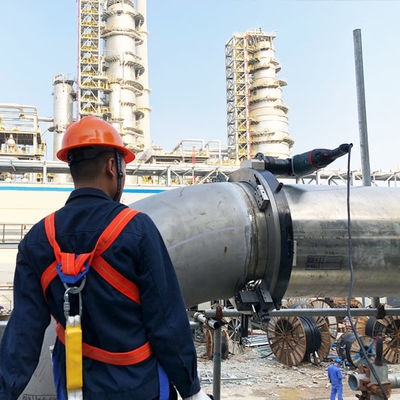

Onsite Applications
The OD508 processes pipes from 355mm to 508mm, making it suitable for energy, water, and industrial sectors. It is commonly used in gas compressor stations, refinery off-sites, and cross-country pipeline projects. The machine's cold-cutting technology eliminates heat-induced defects, ensuring high-quality weld joints for high-pressure service. In offshore platforms, it supports riser and flowline installation, while in power plants, it maintains turbine auxiliary systems. The clamshell design allows efficient mounting without heavy equipment, reducing project time and cost. For municipal water and wastewater systems, the OD508 helps retrofit and expand large-diameter networks. Its ability to perform beveling, facing, and boring adds significant value to diverse field operations.
After-Sales Service
Product Warranty
All products are backed by a 12-month warranty from the date of shipment. During this period, any manufacturing defects will be addressed promptly to ensure reliable performance and customer satisfaction.
Spare Parts Supply
We maintain a comprehensive inventory of spare parts to minimize downtime. All spare parts orders are processed and dispatched within 2 business days, ensuring quick delivery and continuous operation of your equipment.
Technical Support & Product Guidance
Each machine is supplied with a detailed instruction manual and step-by-step operation videos. For additional support, our technical team provides real-time video guidance and remote troubleshooting, ensuring that your equipment is operated safely and efficiently.
