High Precision 220-240V Pneumatic Pipe Beveling Machine for Small Diameter Pipes
| MOQ: | 1 |
| Price: | 225USD-675USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
High Precision Pneumatic Pipe Beveling Machine
,240V Pneumatic Pipe Beveling Machine
,240V pneumatic pipe beveler

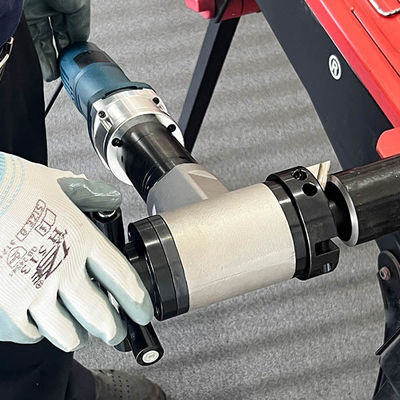

Compact, high-precision internal-mounted cold cutting tool designed for small-diameter pipe weld preparation. Operating without heat input, it delivers fast and repeatable beveling, facing, counterboring, and compound angle machining while preserving base material integrity and preventing heat-affected zones (HAZ).
Ideal for applications in power plants, chemical processing, offshore rigs, and fabrication yards, the ID90 features a self-centering internal clamp system and modular jaws for quick setup and stable operation in confined or elevated spaces. The pneumatic drive ensures safe use in hazardous or explosive environments.
- Cold Cutting Technology: Performs all machining without thermal distortion, protecting metallurgical properties and ensuring clean, defect-free weld zones.
- Versatile Machining Capabilities: Supports V, U, J bevels, facing, counterboring, and chamfering with easy-to-change tool bits accommodating various weld joint configurations.
- Self-Centering Internal Mount: Three-jaw pneumatic clamping system offers rapid, secure pipe mounting and stable operation, especially suited for vertical and overhead work.
- Multi-Material Compatibility: Effective on carbon steel, stainless steel, and high-alloy pipes commonly used in industrial applications.
- Lightweight and Portable: Weighing only 9.5 kg, it is ideal for both workshop and field use where mobility and quick setup are essential.
| Item | IDE-90 | IDP-90 | IDB-90 |
|---|---|---|---|
| Drive Type | MT electric motor | Pneumatic motor | Bosh Electric motor |
| Motor Power | 220-240 V, 50/60 Hz | 1.3 m³/min @ 0.6 Mpa | 220-240 V, 50/60 Hz |
| Motor Power | 0.9 Kw (1.21 Hp) / 4.5 A | 1.0 Kw (1.34 Hp) | 1.0 Kw (1.34 Hp) |
| Cutting Range (ID-OD) | Φ25-89 mm (0.98"-3.50") | Φ25-89 mm (0.98"-3.50") | Φ25-89 mm (0.98"-3.50") |
| ID Mounting Range | Φ25-79 mm (0.98"-3.11") | Φ25-79 mm (0.98"-3.11") | Φ25-79 mm (0.98"-3.11") |
| Wall Thickness | ≤15 mm (0.59") | ≤15 mm (0.59") | ≤15 mm (0.59") |
| Feed Stroke | 20 mm (0.79") | 20 mm (0.79") | 20 mm (0.79") |
| Rotation Speed | 65 rpm | 46 rpm | 48 rpm |
| Working Weight | 9.5 Kg | 8.5 Kg | 9.5 Kg |
| Shipping Weight | 17 Kg | 16 Kg | 17 Kg |
| Crate Dimensions | 650×500×190 mm | 650×500×190 mm | 650×500×190 mm |
The ID90 Pneumatic Pipe Beveling Machine offers versatile drive configurations to suit varying job site requirements, power availability, and safety standards. Users can select from electric or pneumatic drive systems, each designed to deliver optimal performance and reliability in different environments.
Powered by a robust 0.9 kW (1.21 Hp) MT electric motor operating at 220-240 V and 50/60 Hz, this option provides steady torque and precise control. It is ideal for workshop environments and sites with reliable electrical power, ensuring consistent beveling performance on small-diameter pipes.
Featuring a high-quality 1.0 kW (1.34 Hp) Bosh motor at 220-240 V, 50/60 Hz, the Bosh drive offers enhanced durability and smooth operation. Its superior power output suits precision machining tasks in fabrication shops or industrial settings requiring exact bevel preparation.
Equipped with a powerful 1.0 kW (1.34 Hp) pneumatic air motor, the IDP90 operates efficiently with compressed air consumption of 1.3 m³/min at 0.6 MPa. This pneumatic drive is specifically engineered for hazardous, explosive, or remote environments where electric power is limited or restricted. Its lightweight design and intrinsic safety features make it the preferred choice for offshore platforms, petrochemical plants, and other challenging field applications, delivering reliable and safe pipe beveling without risk of sparks or heat generation.
The ID90 Pneumatic Pipe Beveling Machine is essential for precision weld preparation in diverse power generation settings, including coal-fired, gas turbine, nuclear, hydroelectric, and renewable energy plants. Its compact design and cold cutting capability enable efficient on-site machining of high-pressure steam pipes, superheater tubes, boiler components, and heat exchangers. During maintenance shutdowns and retrofits, this portable machine ensures accurate beveling and facing with minimal downtime, supporting continuous plant reliability and safety compliance.
Built to endure the challenges of oilfield operations, the ID90 Pneumatic Pipe Beveling Machine excels in upstream, midstream, and downstream environments such as refineries, offshore rigs, and pipeline terminals. Its pneumatic drive configuration makes it intrinsically safe for use in hazardous, explosive, or ATEX-rated zones. The machine efficiently bevels carbon steel, stainless steel, and alloy pipes found in process units, risers, separators, and transport pipelines--improving weld quality and operational safety in demanding conditions.
In harsh chemical processing plants where piping carries corrosive or volatile substances, the ID90's cold cutting process prevents thermal distortion, preserving pipe integrity and producing burr-free edges. It is ideal for precision machining on high-alloy and specialty materials used in reactors, distillation columns, heat exchangers, and emergency safety systems. This ensures long-term joint reliability and compliance with stringent industry regulations.
The ID90 Pneumatic Pipe Beveling Machine provides fast, reliable beveling for pipeline construction, repair, and emergency shutdowns in remote or confined locations. Its lightweight, modular design allows quick internal mounting on pipes with limited access, maintaining consistent cut quality despite challenging terrain or weather. The cold cutting technology reduces hazards associated with sparks or heat, making it a preferred tool for field service teams working under strict safety protocols.
| Jaw block No. | ID Mounting Range |
|---|---|
| Ramp 01 | Φ25-29.5 mm (0.984"-1.161") |
| Ramp 02 | Φ29.5-34 mm (1.161"-1.339") |
| Ramp 03 | Φ34-38.5 mm (1.339"-1.516") |
| Ramp 04 | Φ38.5-43 mm (1.561"-1.693") |
| Ramp 03 + Jaw 01 | Φ43-47.5 mm (1.693"-1.870") |
| Ramp 04 + Jaw 01 | Φ47.5-52 mm (1.870"-2.047") |
| Ramp 04 + Jaw 02 | Φ52-56.5 mm (2.047"-2.224") |
| Ramp 04 + Jaw 03 | Φ56.5-61 mm (2.224"-2.402") |
| Ramp 04 + Jaw 04 | Φ61-65.5 mm (2.402"-2.579") |
| Ramp 04 + Jaw 05 | Φ65.5-70 mm (2.579"-2.756") |
| Ramp 04 + Jaw 06 | Φ70-74.5 mm (2.756"-2.933") |
| Ramp 04 + Jaw 07 | Φ74.5-79 mm (2.933"-3.110") |
| Model | ID Mounting Range | Cutting Range (ID-OD) |
|---|---|---|
| ID30 | Φ15-28 mm (0.59"-1.10") | Φ15-36 mm (0.59"-1.42") |
| ID90 | Φ25-79 mm (0.98"-3.11") | Φ25-89 mm (0.98"-3.50") |
| ID120 | Φ40-112 mm (1.57"-4.41") | Φ40-120 mm (1.57"-4.72") |
| ID159 | Φ60-160 mm (2.36"-6.30") | Φ60-159 mm (2.36"-6.26") |
| ID219 | Φ65-215 mm (2.56"-8.46") | Φ65-219 mm (2.56"-8.62") |
| ID252 | Φ80-260 mm (3.15"-10.24") | Φ80-273 mm (3.15"-10.75") |
| ID352 | Φ145-345 mm (5.71"-13.58") | Φ145-356 mm (5.71"-14.02") |
| ID426 | Φ250-426 mm (9.84"-16.77") | Φ250-426 mm (9.84"-16.77") |
| ID630 | Φ300-630 mm (11.81"-24.80") | Φ300-630 mm (11.81"-24.80") |
